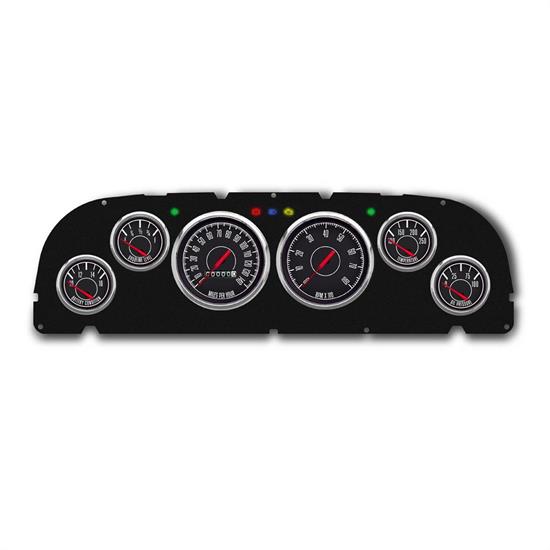

New Vintage USA 61670-01 6 Gauge 1967 Series Black 61-63 Chevy
New Vintage USA 61670-01 6 Gauge 1967 Series Black 61-63 Chevy
61-63 Chevy, Analog Gauge Series, Electric Gauge Style, Dash Cluster Gauge Set Design, Black
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
New Vintage USA 61670-01 6 Gauge 1967 Series Black 61-63 Chevy
X
We estimate this item will ship on or before June 18th.
Part # 2766167001
$599.00
$658.90
set
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Details
Gauge Series:
Analog
Gauge Style:
Electric
Gauge Set Design:
Dash Cluster
Gauge Face Color:
Black
Bezel Finish:
Stainless
Needle Color:
Red
Lettering Color:
White
Includes Mounting Bracket(s):
Yes
Fuel Sender Included:
No
Speed Sender Included:
No
Oil Pressure Sender Included:
Yes
Turn Signals Included:
Yes
Includes Wire Harness:
No
Bezel Included:
Yes
Gauge Type:
Analog
Lens Style:
Domed
Temperature Sensor Bung Included:
Yes
MFG. Part #:
61670-01
GTIN Code:
689860950276
Info
New Vintage USA complete packages for 1961-1963 Chevy Full size trucks offer the style you want in a package featuring the latest technology. Easy to install in your existing bezel using the exclusive NVU mounting system featuring Deadfronted turn signals, high beam and warning lamps. With a wide variety of styles to choose from, pick the style that fits your build. Kits include senders, bracket and a factory-match 0-30 fuel level gauge. All gauges function on any engine/transmission combination from original to the latest in LS technology. Each kit is hand built in Detroit and features NVU’s 5- year warranty
Each kit includes:
3-3/8” Speedometer Mechanical, 5/8-18 thread, .104x.104 square drive cable, 1:1 drive ratio
3-3/8” Tachometer
2-1/16” Fuel gauge (0-30 ohm early GM match- sender not included-use original)
2-1/16” Voltmeter
2-1/16” Oil pressure
2-1/16” Water Temperature
Pressure and temperature sending units
Sender bushing kit
NVU exclusive mounting panel
Instruction sheet/booklet
Notes
For all technical/repair/warranty product questions or needs, please contact New Vintage directly. For all other inquiries regarding shipping & delivery information, please contact the Speedway Motors Customer Experience Center.
Charts
Installation Instructions (PDF)Important Messages
- This item ships directly from the manufacturer. It may take an additional 3 business days for New Vintage USA to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
