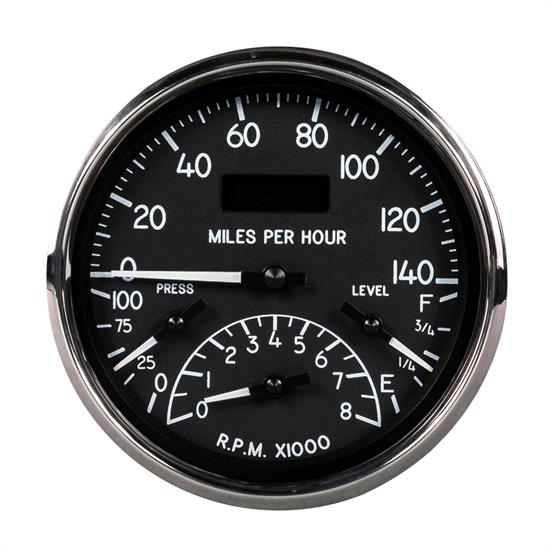

New Vintage USA 40157-01 Quadzilla 1940 Series Gauges, Black
Universal Fit, Analog Gauge Series, 4-In-One Gauge Set Design, 1 Number of Gauge Housings
Inspired by military sets, we have duplicated the feel of the very popular aircraft and military gauges of the 30s and 40s, but with modern technology. Why buy salvage yard gauges that don’t match, or work for that matter? We started with the military graphics and upgraded to domed lenses and stainless steel bezels for an upscale, “5-Star General” appearance. The graphics are duplicated down to the smallest detail, and a white-tipped pointer adds to the effect. The mechanical speedometer features a trip odometer with reset switch. The patented bi-torque 2-1/16” gauges offer the modern technology behind the scenes to provide accurate readings. The New Vintage 1940 Series gauges are made in the USA and feature our 5-year warranty.
1940 Series Quadzilla gauge kits are available in our popular 4-3/8" mounting hole size with polished stainless steel bezels and domed lenses. Installation is a snap with our exclusive color-coded AMP connector harnesses and easy to adjust back-clamps. NVU's Phoenix technology behind the scenes drives the gauges with easy to read menu functions, fully programmable inputs for speedo, tach and fuel make this the most versatile stand-alone gauge kit on the market! No additional filters, adapters or driver modules or boxes, NVU instruments run as-is. New temperature and pressure ranges for today's builds along with programmable, electronic dampened fuel gauge for smooth, easy to see reading without any tank slosh issues. Fuel senders are not included and must be purchased separately. Speedometer operates from any speed signal OE, PCM (computer), aftermarket or even our GPS antenna.
- Quadzilla Instrument with:
- Speedometer 0-140 MPH
- Tachometer 0-8,000 RPM
- Oil pressure gauge 0-100 PSI
- Fuel level gauge (programmable inputs)
- 1 additional analog input and voltmeter display
- AMP Plug wiring harnesses with color-coded wiring
- Back clamps
- Oil pressure sender 1/8-27 thread
- Bushing kit with 1/4, 3/8 and 1/2" thread
- Programming button
- Detailed instructions
For all technical/repair/warranty product questions or needs, please contact New Vintage directly. For all other inquiries regarding shipping & delivery information, please contact the Speedway Motors Customer Experience Center.
ChartsNew Vintage Instruction Booklet (PDF)
- This item ships directly from the manufacturer. It may take an additional 3 business days for New Vintage USA to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
