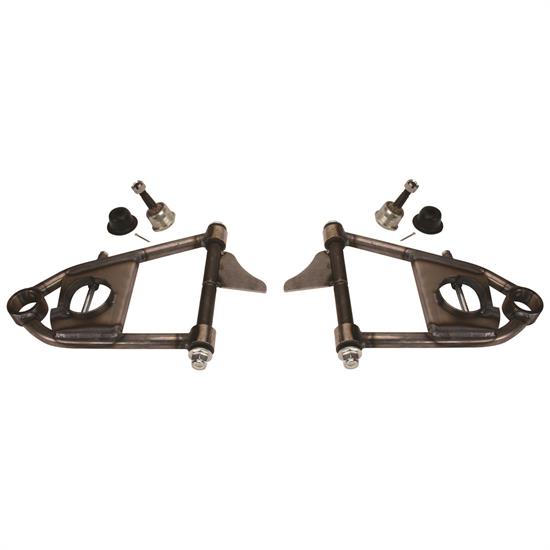

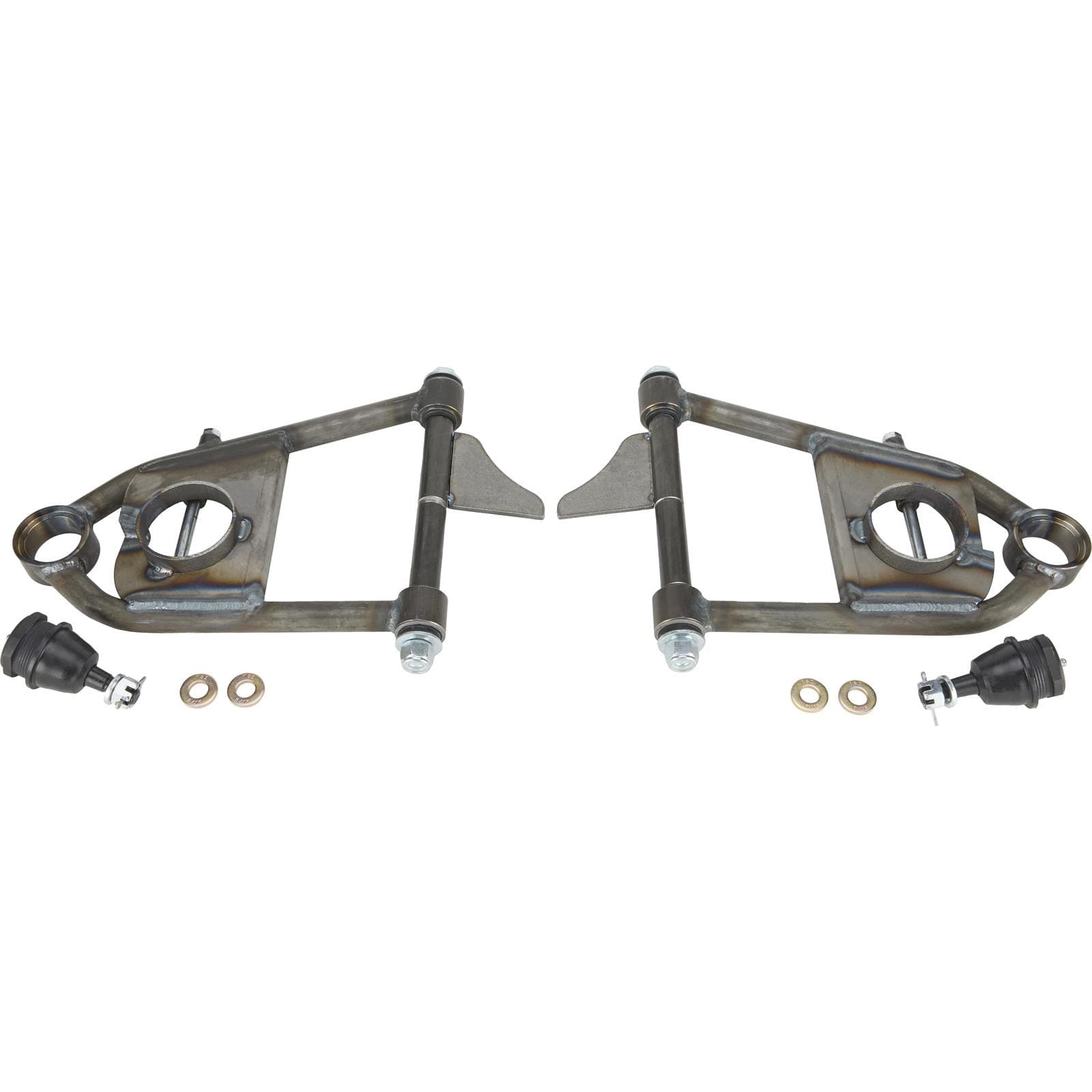

Mustang II Tubular Lower Arms for Stock, No Strut, 5/8 Inch Narrower
Mustang II Tubular Lower Arms for Stock, No Strut, 5/8 Inch Narrower

Mustang II Tubular Lower Arms for Stock, No Strut, 5/8 Inch Narrower

74-78 Ford Mustang II, Lower Position, Tubular Control Arm Style, Steel

2 Reviews | 4 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Mustang II Tubular Lower Arms for Stock, No Strut, 5/8 Inch Narrower
Mustang II Tubular Lower Arms for Stock, No Strut, 5/8 Inch Narrower
Zoomed In Image
Part # 91034336
$299.99
pair
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Position:
Lower
Control Arm Style:
Tubular
Mount Center to Ball Joint Center:
12.50"
Material Type:
Steel
Sold in Quantity:
Pair
Bushing Material:
Rubber
MFG. Part #:
91034336
Ball Joint Included:
Yes
Ball Joint Type:
Screw-in
Tube O.D.:
1.00"
Bushing Included:
Yes
Finish:
Natural

Info

You dont have to look any farther for tubular control arms for your Mustang II IFS-equipped hot rod. Our Mustang II control arms are made from full .120 wall, 1" diameter tubing, fixture welded and feature screw-in ball joints and no-squeak rubber bushings. These new generation, no-strut style arms eliminate the strut rod found on stock-style Mustang II IFS systems. The improved, triangulated design provides stability and strength within the arm itself, so you can get rid of that ugly strut rod.

Will work with nearly any stock or aftermarket Mustang II front crossmember (welding is required on most applications). Lower control arm accepts stock-style Mustang II 3-1/2" I.D. front coil springs and shocks. These control arms are 5/8" narrower than stock, which means that they will reduce front track width by 5/8" per side (or 1-1/4" overall) when compared to a stock width control arm. This helps tuck the wheels up under the fenders without having to buy expensive special offset wheels. When using 5/8" narrower control arms, 5/8" must be removed from each inner tie rod end.

  • 5/8" Narrower than stock width
  • Upgrade to a cleaner looking control arm
  • Full .120" wall, 1" diameter fixture welding tubing
  • Features screw-in ball joints and no-squeak bushings
  • Works with nearly any stock or aftermarket crossmember
  • Welding may be required on some applications
  • Designed to correspond with stock style Mustang II springs and shocks
  • Works with Mustang II crossmembers that come without lower A-Arm tabs
  • Non-strut rod applications
  • Sway bar brackets are not provide with these arms but are available separately when required 413-230

Tubular Control Arms Application Chart (GIF)

910-34336 Tubular Lower Control Arm Instructions (PDF)

Item Details

5/8" Narrower
No Strut, Stock Spring

Notes

Why go with tubular control arms? The most obvious reason is the looks. Tubular control arms and strut rods give your hot rod a much cleaner and hi-tech appearance than the stock type do.
