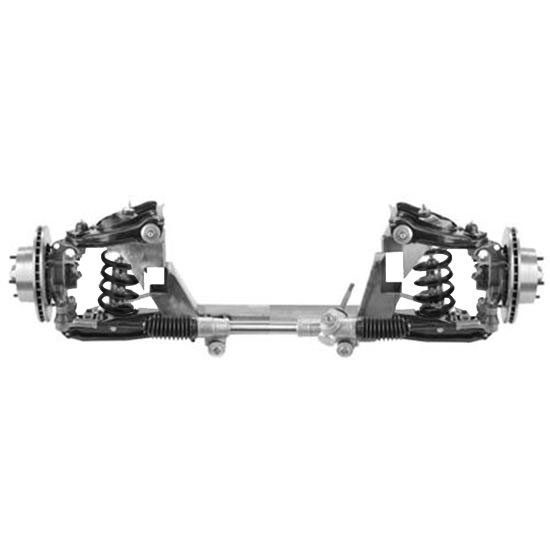

Mustang II IFS, Stock Control Arms, Springs, and Shocks, Dropped Spindles

Info

Notes

Note: Applications where the vehicle has fenders that mount directly on top of the frame, the fenders will require extensive modification to allow clearance for the upper cross member section.

Note:  Our Mustang II springs that we currently offer are all 13.5” long and require trimming to the length needed for each individual application. Weight rating changes as the spring is shortened. When installing in the vehicle the flat end goes up into the upper hat and the end with the “pigtail” goes down into the lower control arm. Spring is rotated when installing to position the pigtail properly. Springs TOO long will have a tendency to NOT sit properly on the lower arms and actually in some cases bow outward causing spring bind.

Note: These kits require the purchase of a Mustang II crossmember (sold separately).  Many of our Speedway and Heidts brand crossmembers will work with Manual Rack and Pinion Steering ONLY.  When purchasing our crossmembers, be sure to look for their correspondence with power racks if selecting a power rack with our Mustang II IFS kits.  With all Mustang II aftermarket crossmembers, spacers and longer bolts must be used with the later (Fox-body) power rack (spacers included).

Finding the right control arms means finding the correct track width: Our Mustang II kits feature 11" rotors.  Track width, which is hub faceto hub face where the wheels bolt on, will be 57.5". Wheel and tire combination and customer preference determine whether to use the
standard control arms or the 5/8" narrower. The narrower control arms reduce the track with by a total of 1.25".  See the link below for
various track widths with different options.

When used in conjunction with upgraded disc brake kits, due to possible interference between the end of the control arm and the brake rotor when at ride height, it may be necessary to remove minimal material from the end of the control arm to achieve adequate clearance at this location.

Mustang II Track Width Options (PDF)

Specs

Hub-to-Hub Kit (Less Crossmember)

• New Control Arms
• Polyurethane Bushings
• New Strut Rods w/ Bushings
• New Stock or 2" Dropped Spindles
• New Black Painted Coil Springs
• New Chrome Shocks
• New Manual or Power Rack & Pinion
• New Tie Rod Ends
• New 11" Brake Kit
• 5x4-1/2" or 5x4-3/4" Bolt Circle

Warranties

WARNING: DRIVING A LOWERED VEHICLE COULD BE DANGEROUS AND COULD CAUSE DAMAGE TO YOR SUSPENSION

The original intent of the air spring was to provide a very smooth ride.  It was not designed to provide an adjustable ride height.  You can not drive the vehicle at any ride height you select.

All suspension systems are designed to operate at a specific midpoint position, with provisions for suspension travel. The Mustang II suspension is no exception. It has a specific mid-point position which is when the lower control arms are level. The suspension must be in this position to provide full suspension travel and correct geometry action.

In this type of suspension the shock is normally the bottom out device. When the vehicle is lowered the shocks compression and extension limits change and the shocks will bottom out or the ball joints could pinch when it is lowered. The air ride suspension is only designed to lower your vehicle while it is parked. If you attempt to drive a vehicle in the lowered position it could be dangerous and will cause damage to your vehicle. This could result in broken control arms, shocks and ball joints.

Charts

Front Disc Brake Installation Instructions (PDF)

Installation Instructions(PDF)

Spindle Instructions (PDF)

Brake Kit Instructions(PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
