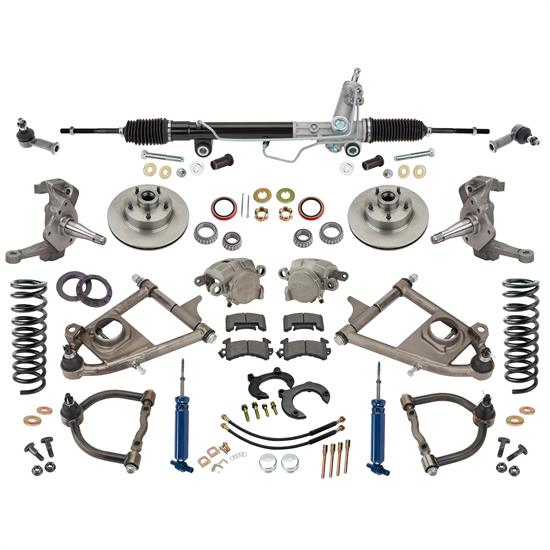

Mustang II IFS-Std Tubular Control Arms-Springs-Drop Spindles-4-1/2 BP

Info

Notes

Why go with tubular control arms?

The most obvious reason is the looks. Tubular control arms and strut rods give your hot rod a much cleaner and hi-tech appearance than the stock type do. Also, when using the strutless style, you gain more clearance because you no longer have the strut rod or its mount in the way of headers, etc. Another bonus is that the tubular control arms are available in 5/8" narrower than stock, which helps tuck the wheels up under the fenders without having to buy expensive special offset wheel. When using 5/8" narrower control arms, 5/8" must be removed from each inner tie rod end.

Note: To offer our customers a better range of spring rates, the springs included in this kit are now black in color, please note that they are no longer chrome plated.

Note:  Our Mustang II springs that we currently offer are all 13.5” long and require trimming to the length needed for each individual application. Weight rating changes as the spring is shortened. When installing in the vehicle the flat end goes up into the upper hat and the end with the “pigtail” goes down into the lower control arm. Spring is rotated when installing to position the pigtail properly. Springs TOO long will have a tendency to NOT sit properly on the lower arms and actually in some cases bow outward causing spring bind.

Note: Applications where the vehicle has fenders that mount directly on top of the frame, the fenders will require extensive modification to allow clearance for the upper cross member section.

Note: These kits require the purchase of a Mustang II crossmember (sold separately).  Many of our Speedway and Heidts brand crossmembers will work with Manual Rack and Pinion Steering ONLY.  When purchasing our crossmembers, be sure to look for their correspondence with power racks if selecting a power rack with our Mustang II IFS kits.  With all Mustang II aftermarket crossmembers, spacers and longer bolts must be used with the later (Fox-body) power rack (spacers included).

Finding the right control arms means finding the correct track width: Our Mustang II kits feature 11" rotors.  Track width, which is hub face to hub face where the wheels bolt on, will be 57.5". Wheel and tire combination and customer preference determine whether to use the
standard control arms or the 5/8" narrower. The narrower control arms reduce the track with by a total of 1.25".  See the link below for
various track widths with different options.

Mustang II Track Width Options (PDF)

Charts

Front Disc Brake Installation Instructions (PDF)

Tubular Upper Control Arm Instructions (PDF)

Spindle Instructions (PDF)

Tubular Lower Control Arm Instructions (PDF)
