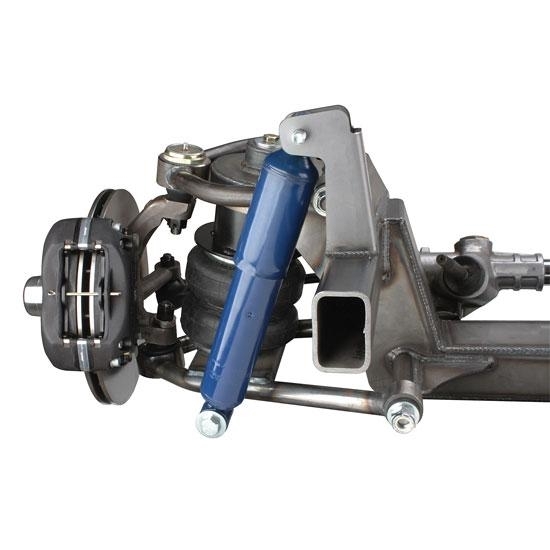

Mustang II IFS, Short Control Arms, Air Ride, Stock Spindles, Wilwood Brakes
Mustang II IFS, Short Control Arms, Air Ride, Stock Spindles, Wilwood Brakes

Mustang II IFS, Short Control Arms, Air Ride, Stock Spindles, Wilwood Brakes

Universal Fit

0 Reviews | 1 Answered Question
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Mustang II IFS, Short Control Arms, Air Ride, Stock Spindles, Wilwood Brakes
Mustang II IFS, Short Control Arms, Air Ride, Stock Spindles, Wilwood Brakes
Zoomed In Image
Part # 91034219
Bolt Pattern
Add to Cart
Call to Order
Add to Buildlist

Videos & Articles


MFG. Part #:
Select Bolt Pattern to see


Hub-to-hub kit includes 5/8" narrower upper and offset strutless lower control arms, new standard spindles, rubber brake lines, air ride , new manual or rebuilt power rack & pinion with bushings and new tie rods. The 10-3/4" Wilwood brake kit features GM Metric calipers with rubber hoses, with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt pattern.

  • Works with all Speedway and Heidts crossmembers¬†
  • Kit Includes:
    • 5/8" narrower Tubular Upper and Lower Strutless Control Arms
    • New Standard Spindles
    • Air Ride Suspension shocks
    • Rack and Pinion with bushings and tie rods
    • 10-3/4" Wilwood brake kit with GM calipers
  • Add proper crossmember to complete kit -¬†Must include Mustang II crossmember for complete installation (sold separately)

Note:  OEM rubber brake hoses generally cannot be adapted to Wilwood calipers. The caliper inlet fitting is a 1/8-27 NPT. The preferred method is to use steel adapter fittings at the caliper, either straight, 45 or 90 degree and enough steel braided line to allow for full suspension travel and turning radius, lock to lock.

Note:  If using these kits with Speedway or Heidts crossmembers for 1948-1956 Ford Pickups, 1955-1959 Chevy Pickups, or universal crossmembers for 27-1/2" - 33-1/2" frame widths, you will be required to purchase 2" Inner Tie Rod Extensions (91034345) or (91034346).


Note: When using 5/8" narrower control arms, 5/8" must be removed from each inner tie rod end.

Why go with tubular control arms?

The most obvious reason is the looks. Tubular control arms and strut rods give your hot rod a much cleaner and hi-tech appearance than the stock type do. Also, when using the strutless style, you gain more clearance because you no longer have the strut rod or its mount in the way of headers, etc. Another bonus is that the tubular control arms are available in 5/8" narrower than stock, which helps tuck the wheels up under the fenders without having to buy expensive special offset wheel. When using 5/8" narrower control arms, 5/8" must be removed from each inner tie rod end.

Note:  If using steel wheels with this kit, you will also need to purchase (2) steel shims part 835-3007500. These shims will prevent steel wheelsfrom galling the aluminum hub.

Note: Applications where the vehicle has fenders that mount directly on top of the frame, the fenders will require extensive modification to allow clearance for the upper cross member section.

Note: These kits require the purchase of a Mustang II crossmember (sold separately).  Many of our Speedway and Heidts brand crossmembers will work with Manual Rack and Pinion Steering ONLY.  When purchasing our crossmembers, be sure to look for their correspondence with power racks if selecting a power rack with our Mustang II IFS kits.  With all Mustang II aftermarket crossmembers, spacers and longer bolts must be used with the later (Fox-body) power rack (spacers included).

Finding the right control arms means finding the correct track width: Our Mustang II kits feature 11” rotors.  Track width, which is hub face to hub face where the wheels bolt on, varies between Ford bolt pattern at 57.5” to Chevy bolt pattern at 58.5”. Wheel and tire combination and customer preference determine whether to use the standard control arms or the 5/8” narrower. The narrower control arms reduce the track with by a total of 1.25”.  See the link below for various track widths with different options.

Mustang II Track Width Options (PDF)


  • Minimum Wheel Diameter (in): 15"
  • Wheel Stud Diameter: 1/2"-20
  • Caliper inlet fitting: 1/8"-27 NPT
Hub-to-Hub Kit (Less Crossmember)
  1. Tubular Upper Control Arms
  2. Tubular No-Strut Lower Control Arm
  3. New Stock or 2" Dropped Spindles
  4. New Air Springs
  5. New Shocks
  6. New Manual or Power Rack & Pinion
  7. New Tie Rod Ends
  8. New 11" Brake Kit
  9. 5x4-1/2" or 5x4-3/4" Bolt Circle



The original intent of the air spring was to provide a very smooth ride.  It was not designed to provide an adjustable ride height.  You can not drive the vehicle at any ride height you select.

All suspension systems are designed to operate at a specific midpoint position, with provisions for suspension travel. The Mustang II suspension is no exception. It has a specific mid-point position which is when the lower control arms are level. The suspension must be in this position to provide full suspension travel and correct geometry action.

In this type of suspension the shock is normally the bottom out device. When the vehicle is lowered the shocks compression and extension limits change and the shocks will bottom out or the ball joints could pinch when it is lowered. The air ride suspension is only designed to lower your vehicle while it is parked. If you attempt to drive a vehicle in the lowered position it could be dangerous and will cause damage to your vehicle. This could result in broken control arms, shocks and ball joints.


835-14011017 Instructions (PDF)

Tubular Upper Control Arm Instructions (PDF)

Tubular Lower Control Arm Instructions (PDF)

Spindle Instructions (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
