Mustang II Bolt-On Coil-Over Kit w/ QA1 Adjustable Shocks
74-78 Ford Mustang II, 74-80 Ford Pinto, 75-80 Mercury Bobcat, Aluminum Shock Body Material
- These shocks for the Mustang II front suspensions feature a billet aluminum body, and are single (rebound) adjustable
- Developed for high performance and increased travel, they're perfect for performance street machines
- They feature a unique piston rod design which provides shorter compressed height to allow lower car ride heights

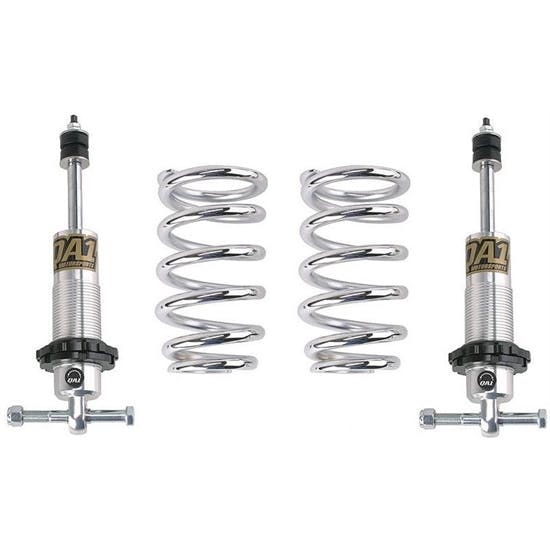

- With an easy bolt-in installation, the kit includes 2 shocks, 2 chrome-plated springs, and a mounting kit
- The springs are offered in rates of 375, 500, 600, and 700
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
These kits provide the highest quality performance characteristics for your Mustang II front end. The springs are designed specifically for use with the QA1 coil-over shocks and the factory upper spring pocket. This enables the use of a longer spring, which allows for a lighter overall spring rate. By building the upper section of the spring to factory dimensions, this puts the weight back into the frame instead of on a single stud.
- Single (rebound) adjustable valving
- Billet aluminum body
- Developed for high performance with increased travel
- Unique piston rod design provides shorter compressed height to allow lower car ride height
- Easy bolt-in installation
- Includes 2 shocks, mounting kit, 2 chrome-plated springs (choose specific rate)
NOTE: Not recommended for front axle weights in excess of 1900 lbs.
Spring Rate Chart (Link)
Coil-Over Mounting Guide (GIF)
- Can be installed with no special tools, and delivers the ride characteristics of "other" coil-overs.
- This is a true bolt-on coil-over kit for all specialty cars using Pinto/Mustang II based front suspensions. Kits work with stock or aftermarket crossmembers and upper control arms, stock lower control arms or tubular replacements will work also. Some fitting required.
- 12-Position rebound valving adjuster knob changes the rebound valving
- Complete suspension control in one easy-to-reach location
- Deflective Disc Valving
- Aluminum Shock Body
- 5/8" Centerless Ground, Hard Chrome Plated, Solid Piston Rod
- Three Step Sealing System
- Revalveable and Rebuildable by QA1 Authorized Service Center
- Unique "half barrel" shape
- Fits the stock upper seat in the frame
- Necks down to fit the smaller adjustable lower seat on the coil-over
- Fully adjustable ride height using included aluminum spanner nut
- Allows long travel with a soft rate
- Free Height: 8.125"
- Small End: 2.5" I.D.
- Large End: 3.5: I.D.
- Extended Length: 11"
- Compressed Length: 7-3/4"
- Includes 1/2" I.D. rod end for lower mount, 1/2" O.D. bolt, and a 1/2" I.D. spacer sleeve
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
What's In The Kit
QA1 Mustang II Coilover ShockPart # 7211005Qty x 2
Replacement Springs for Mustang II CoiloversPart # 2558MQty x 2
