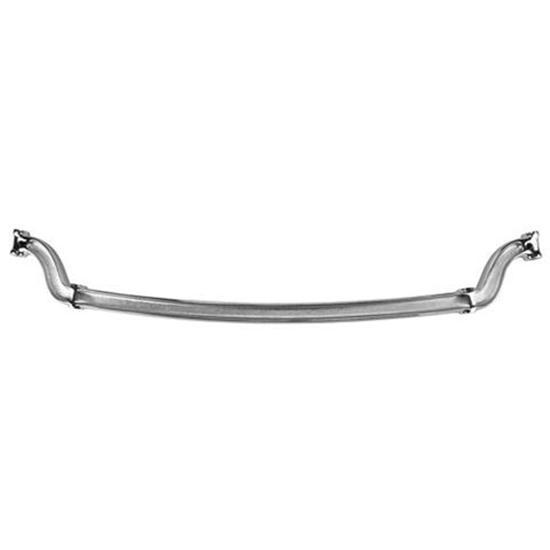

Super Bell Axle 1103D 1942-48 Ford 4 Inch Dropped I-Beam Axle

#7022870

Super Bell Axle 1103D 1942-48 Ford 4 Inch Dropped I-Beam Axle

Name: Super Bell Axle 1103D 1942-48 Ford 4 Inch Dropped I-Beam Axle
Brand: Super Bell Axle Co
SKU: 7022870
Price: 594.99 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

8 Questions

Designed to work with 1937-1948 Ford spindles
Will provide a 4" drop in ride height over stock
Axles feature a one-piece design cast from high-strength 65-45-12 annealed ductile iron

$594.99

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Solid I-Beam Straight Axle Style, 50" King Pin Centers

Designed to work with 1937-1948 Ford spindles
Will provide a 4" drop in ride height over stock
Axles feature a one-piece design cast from high-strength 65-45-12 annealed ductile iron
For use in conjunction with the 1942-48 Ford wishbones utilizing the 2-3/8" dimension
Kingpin centers measure a total of 50" apart

See more details

Key Specs

Straight Axle Style	Solid I-Beam
Dropped Axle	Yes
Suspension Height Adjustment	4 Inch Lowered
Finish	Natural
Material Type	Iron

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Super Bell Axle Co 2870 Details

Fits 1942-1948 Ford passenger cars and works with a stock length spring. These 4" dropped axles accept 1937-48 Ford spindles and have 2-3/8" axle bosses for use in conjunction with the 1942-48 Ford wishbones utilizing the 2-3/8" dimension. As such, they are not applicable to the 2-1/4" batwings used for the 4-bar or radius rod type suspension. I-beam axles feature a one-piece design cast from high-strength 65-45-12 annealed ductile iron.

Axle measures 50" between kingpins and 40-5⁄8" wide between perch bolt center. Plain finish.

Item Details

50-3/8" king pin centers
40-5/8" perch centers

Charts

Caster Angle Illustration (GIF)

Leaf Spring Measuring Guide (JPG)

Guides & Documents

Straight Axles Technical Information (7022870)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Super Bell Axle Co 2870 Specifications

KEY SPECS
MFG. Part #	2870
Brand	Super Bell Axle Co
Straight Axle Style	Solid I-Beam
Dropped Axle	Yes
Suspension Height Adjustment	4 Inch Lowered
Finish	Natural
Material Type	Iron

GENERAL
King Pin Centers	50"
Perch Centers	40.63"
King Pin Boss Length	2.375"
Sold in Quantity	Each

Ratings & Reviews

1 Review

Write A Review

1 reviews

Filter by Ratings

Sort Reviews

Great product, it gets the job done.

5.0

8 years ago

Amy

Maryville, TN

Verified

This product fit my Ford coupe perfectly. It worked great for its purpose.

Would Recommend

Showing 1 of 1 reviews

Questions & Answers

8 Questions • 9 Answers

Sort Questions

Does this axle have provisions for the '48 tube style shocks?

by Dan

• a year ago

1 answer

View Answer

Hello Magnum Axle 2870 1942-48 Ford 4 Inch Dropped I-Beam Axle how heavy is the axle? Thanks Andreas

by Andreas

• 5 years ago

1 answer

View Answer

Will this fit a '43 pick up?

by john

• 8 years ago

1 answer

View Answer

Hi, I want this for my 48" Ford Deluxe. Do I need to modify or purchase steering arms at all? Tnanks

by Daz

• 8 years ago

2 answers

View Answers

What length spring should be used?

by Lad

• 11 years ago

1 answer

View Answer

do i need anything else to install on a 1947 mercury coupe? (brackets, etc?) is there a difference from this and part number 913-35109?

by spike

• 13 years ago

1 answer

View Answer

Can this axle be welded? as adding brackets and/or bat wings for RR?

by tboy

• 15 years ago

1 answer

View Answer

DOES THIS AXEL WORK ON A 1948 MERCURY?

by K RAY

• 15 years ago

1 answer

View Answer

8 of 8 questions shown

Fitment

1946-1948 Ford Deluxe

1942-1948 Ford Super Deluxe
