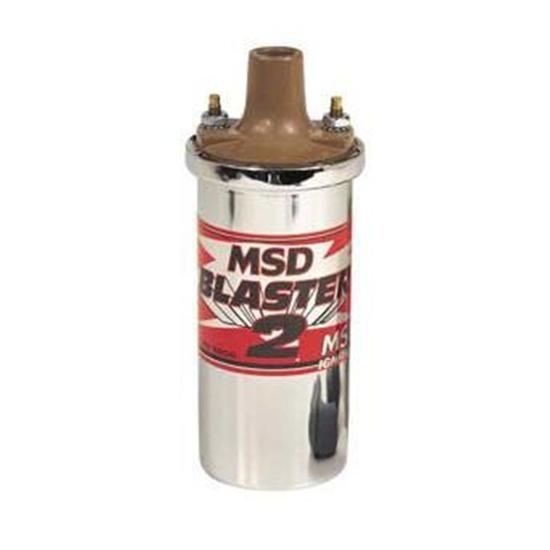

MSD 8200 Blaster 2 Coil - Chrome
MSD 8200 Blaster 2 Coil - Chrome

MSD 8200 Blaster 2 Coil - Chrome

2 Reviews | 1 Answered Question
In Stock
Ships FREE
MSD 8200 Blaster 2 Coil - Chrome
MSD 8200 Blaster 2 Coil - Chrome
Zoomed In Image
Part # 5478200
$341.96
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

MFG. Part #:
8200
Overall Height:
6.00"
Outside Diameter:
2.125"
Cap Terminal Style:
Socket / Female
Turns Ratio:
100:1
Maximum Voltage:
45,000 volts
Resistance:
.70 ohms
Secondary Resistance:
4.50 ohms
Inductance:
8.00
Peak Current:
140
Spark Duration:
350
Finish:
Chrome
Sold in Quantity:
Each
GTIN Code:
085132082001

Info

If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD Blaster Ignition, MSD 5, 6 or 7, the Blaster Coil line is the right choice. All of the Blaster Coils are designed for improved spark output! Special 100:1 windings are used to provide maximum build-up of voltage! These windings are held secure and kept cool in an oil filled metal canister. The tower assembly is molded of durable alkyd material due to its high dielectric characteristics while wide spaced brass primary terminals prevent the possibility of spark. There are several versions of the Blaster Coil available. All of them have the same internal specifications, but have different housings or components. Each Blaster Coil can be used with a stock ignition, Blaster Ignition, MSD 5, 6 or 7 Ignition Control. Most late model vehicles with electronic ignitions do not require a ballast resistor, check your ignition and manufacturers specifications to determine if a ballast is required in your application.

547-8200 Instruction Sheet (pdf)

Specs

Turns ratio:100:1
Primary resistance:.7 OHMs
Secondary resistance:4.5K OHMs
Inductance:8 mH
Maximum voltage:45,000 Volts
Peak current:140 mA
Spark duration:350 uS

Warranties

http://www.msdhelp.com/

Features

  • Improved output coil for stock points or electronic ignitions, Blaster Ignition or MSD 5, 6, and 7 Series
  • Supplied with two spark plug wire boots, terminals and a ballast resistor (required if used with stock points ignition)
  • 100:1 turns ratio and lower primary resistance produce high voltage output
  • Chrome metal canister is filled with a premium grade oil for cooling
  • CARB E.O. Approved
Some parts are not legal for use in California or other states with similar laws/regulations
