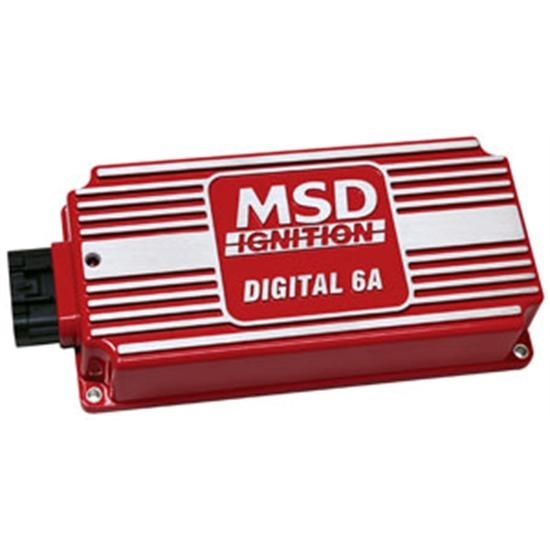

MSD 6201 6A Ignition Control
MSD 6201 6A Ignition Control

MSD 6201 6A Ignition Control

Universal Fit, Capacitive Discharge Ignition Box Output, Digital Circuitry, None Timing Retard

1 Review | 3 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Limited Qty
Select your vehicle to verify fitment.
Select Vehicle
MSD 6201 6A Ignition Control
MSD 6201 6A Ignition Control
MSD 6201 6A Ignition Control
MSD 6201 6A Ignition Control
X
MSD 6201 6A Ignition Control
MSD 6201 6A Ignition Control
Zoomed In Image
Part # 5476201
Save 5%
$245.95
$258.95
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • Compatible with 4, 6 and 8-cylinder engines
  • Produces 135-145 mJ per spark with a primary voltage of 520-540V
  • Features the same bolt pattern as the original 6A with, but with a lower profile housing
  • Has an integrated LED for system checks
  • All wires exit the same side through a locked, sealed connector

Details

Ignition Box Output:
Capacitive Discharge
Rev Limiter Included:
No
Circuitry:
Digital
Data Acquisition:
No
Timing Retard:
None
Coil Included:
No
Primary Voltage:
520-540 Volts output to coil
Spark Output:
135-145 MJ
Voltage Required:
12-15 Volts
Current Draw:
0.7 Amp per 1000 RPM
GTIN Code:
085132062010
Overall Length:
8.00"
Overall Width:
4.00"
Overall Height:
2.25"
Color:
Red
Notes:
Slightly wider mounting points than 6A ignition control module.

Info

Higher output with 530 primary volts and 135mJ of spark energy. Efficient components use less current to produce more power. Same bolt pattern as the original 6A with a lower profile housing. Built-in LED for system checks. All wires exit the same side through a locked, sealed connector. Compatible with 4, 6 and 8-cylinder engines.

Learn more about determining the proper MSD ignition control box for your application by reading our tech article. The Differences Between 6 Series MSD Ignition Control Units.



Specs

  • Spark Energy:  135-145 mJ per spark
  • Primary Voltage:  520-540 Volts
  • Secondary Voltage:  45,000 Volts
  • Spark Series Duration:  20 degree Crankshaft Rotation
  • RPM Range:  15,000 RPM with 14.4 Volts
  • Voltage Required:  12-15 Volts, 7 Volt Start
  • Current Draw:  .7 Amp per 1,000 RPM
  • Weight and Size:  1.7 lbs., 8"L x 4"W x 1.825"H

Charts

547-6201 Instructions(PDF)
