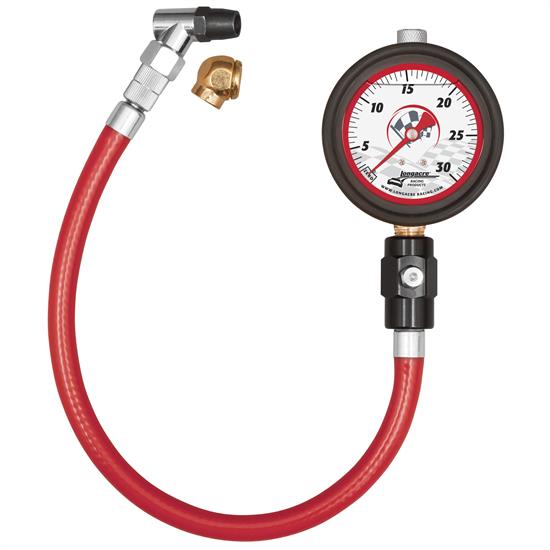

Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi
Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi

Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi

2.5" Diameter, Analog Gauge Type, White, 0-30 PSI Gauge Range, 17" Overall Length, Bleed Valve

0 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi
Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi
Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi
Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi
Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi
Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi
Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi
Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi
Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi
Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi
X
Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi
Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi
Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi
Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi
Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi
Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi
Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi
Longacre® 52-52022 Liquid Filled 2-1/2 Tire Gauge, 0-30 psi
Zoomed In Image
Part # 47552022
$59.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • This liquid filled tire pressure gauge features a 2-1/2" glow-in-the-dark face and includes a protective, shock-resistant bumper for long life
  • Ensure precise air pressure readings with this accurate gauge that reads in 1/2 lb. increments with 2% accuracy and it holds pressure until released
  • The tire gauge contains a built-in tire pressure deflator valve to drop your pressure to your desired level and reduce pressure in overinflated tires
  • Features a 17" flexible hose and includes both an angle and ball chuck for added convenience and easy access to the tire valve from any angle
  • This 0-30 psi gauge includes a vent valve on the top of the gauge, allowing you to equalize internal and external pressures, guaranteeing accuracy

Details

MFG. Part #:
52-52022
Diameter:
2.5"
Gauge Type:
Analog
Sold in Quantity:
Each
Gauge Face Color:
White
Gauge Range:
0-30 PSI
Overall Length:
17"
Lighted:
No
Inflator:
No
Bleed Valve:
Yes
Case Included:
No

Info

NEW Design Tire Pressure Gauge - Great looking new graphics, reads in 1/4 lb. increments and includes both angle and ball chucks.

  • 2 1/2" Deluxe Gauge with protective bumper
  • 1/2 lb. increments with 2% accuracy
  • Air pressure release button
  • 17" hose with swivel angle chuck installed with alternate ball chuck included
  • HOLDS PRESSURE READING UNTIL RELEASED
  • Glow-in-the-Dark dial face
  • Specially designed vent valve to equalize pressure and maintain gauge accuracy
Liquid Filled Tire Pressure Gauges

ALL liquid filled gauges are purposely filled to just 80%. The remaining 20% air pocket helps allow for thermal expansion and contraction as ambient temperature changes, thereby maintaining accuracy. If the gauge were filled to 100% even the slightest temperature change would significantly affect gauge readings as the expanding fluid would have no place to go. To give you even further accuracy over a wide operating range these Longacre® gauges have a Special Vent Valve on the top of the gauge. A quick turn of the knob allows you to totally equalize internal and external pressures, guaranteeing the best accuracy possible.

Liquid filled gauges have many advantages. But they can change readings by as much as 2-3 psi if the temperature changes...

All pressure gauges - liquid filled and regular - need to be vented to the outside to read accurately. If not vented, as the surrounding temperature changes, they will build up pressure inside and affect the accuracy - by as much as 2-3 psi!

But if a liquid filled gauge is vented it will leak on your hands and in your tool box. Some manufacturers aren't aware of this and don't vent the gauge. You then have to deal with the variation in accuracy.

Now from Longacre® comes the simple answer to this problem. We have installed a specially designed pressure equalizer valve on the top of the gauge. Before you use the gauge just loosen the knob on top of the gauge 1/4 turn, then hand retighten. Instantly any temperature-caused pressure difference will be eliminated and you will be guaranteed the most accurate readings possible.

If you have a liquid filled tire gauge prove it to yourself. Take your gauge that has been in a cool place and in the typical range you use. Then take the gauge and put it out in the sun for about 45 minutes, as would happen during a race. Then re-check the tire that is still in the cool place. You will see that the reading has changed. You know that the pressure in the tire is the same so the gauge reading must now be off. How will this affect your handling to have tire pressures high or low by several psi? What's worse is that you don't know at what temp the gauge is actually correct! It depends on the temp in the factory when it was manufactured. You could remove the rubber fill plug on the gauge. But then the liquid would leak out.
