Light Forged Small Block Chevy Assembly, 434 Flat Top, 6 Rod, 350 Mains
Light Forged Small Block Chevy Assembly, 434 Flat Top, 6 Rod, 350 Mains

Light Forged Small Block Chevy Assembly, 434 Flat Top, 6 Rod, 350 Mains

434 Chevy Small Block V8, 350 mains Main Journal Style, 4.000" Engine Stroke

0 Reviews | 3 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Light Forged Small Block Chevy Assembly, 434 Flat Top, 6 Rod, 350 Mains
Light Forged Small Block Chevy Assembly, 434 Flat Top, 6 Rod, 350 Mains
Zoomed In Image
Part # 9153060
Starting from
$2,274.99
kit
Quantity:
Oversize
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item 9153060 is made to order. It will be shipped from our warehouse when it is produced.

Details

Main Journal Style:
350 mains
Cylinder Bore Size:
Select Oversize to see
Engine Stroke:
4.000"
Connecting Rod Type:
I-Beam
Connecting Rod Length:
6.000"
Connecting Rod Material:
Forged 4340 Steel
Connecting Rod Weight:
629 grams
Piston Style:
Flat Top
Piston Diameter:
Select Oversize to see
Piston Material:
Forged Aluminum
Piston Weight:
420 grams
Piston Ring Style:
E
Crankshaft Material:
Forged 4340 Steel
Rear Main Seal Style:
2-piece
Wrist Pin Diameter:
.9272"
Main Journal Diameter:
2.448"
Rod Journal Diameter:
2.10"
Bearing Construction:
Bi-metal
Bearing Undersize:
Standard
Narrowed Bearing:
Yes
Coated Bearing:
No
MFG. Part #:
Select Oversize to see
Sold in Quantity:
Kit

Info

Our lightweight forged rotating assembly engine rebuild kits include a 44-45 lb. Scat Superlight 4340 forged 2-pc rear main seal crankshaft, Scat 4340 forged I-beam connecting rods and Mahle pistons complete with wrist pins, locks and rings. Rod and main bearings included. Standard size journals.

All balancing is done with our state-of-the-art Hines balancer by race mechanics with over 30 years of experience. A kit purchased with the included balance job will ship in 24-48 hours.

Choose from standard or .020 oversize.

NOTE: These rotating assemblies may require additional charges for heavy metal.


Item Details

Flat top, 420 g
Comp. 64cc: 12.3
Ring Style: E
4.125" bore x 4" stroke

Notes

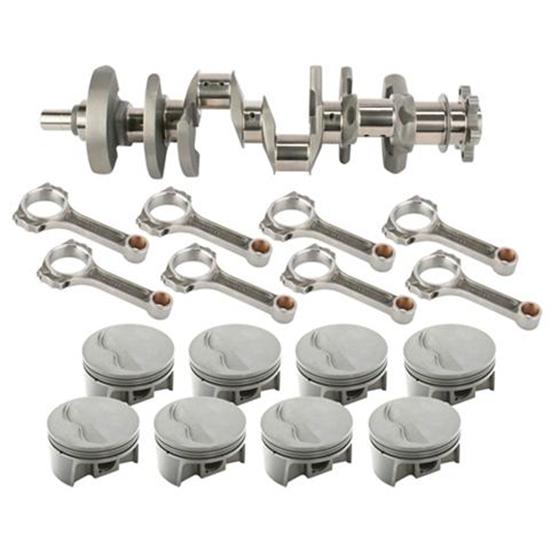

Kit includes:

  • Scat 4340 Lightweight Forged Steel Crankshaft
    • Standard size journals
    • Profiled aero-wing counterweights
    • Pendulum cut to reduce rotating mass
    • Straight shot and chamfered oil holes
    • Nitride hardened and shot peened
    • Lightening holes in all rod throws
    • Large radius on all journals
  • Scat Pro Comp 4340 I-Beam Rods
    • Stroker clearanced
    • ARP 7/16" cap screw bolts
    • Bushed pin
    • Set of 8 rods
    • 6.0" rod: 629 grams
    • Crank pin: 2.100"
    • Wrist pin: .927"
    • B.E. width: .940"
  • Mahle PowerPak Forged Pistons
    • Lightweight slipper skirt design
    • Phosphate coated
    • Grafel anti-friction skirt coating
    • 4.000" bore pistons available in standard, .030, .040, or .060 sizes
    • 4.125" bore pistons available in standard, .030 or .040 sizes
    • Set of 8 pistons
    • Includes low drag rings, lightweight wrist pins and round wire locks
  • King HP Series Main & Rod Bearings
    • 0.015" thick top layer for superior macro particle embedability and conformability
    • 40 Vickers hardness to resist overlay migration and extrusion
    • 450°F heat threshold for superior protection against friction and overheating
    • Mains are 3/4 grooved for improved oiling to the rod journals
    • Bi-metal aluminum silicon alloy featuring fine micro-bore finish
Some parts are not legal for use in California or other states with similar laws/regulations
