Light Forged S/B Chevy Assembly-434 Dome-6 Rod-350 Mains-.030 OS
Light Forged Small Block Chevy Assembly, 434 Dome, 6 Inch Rods, 350 Mains

Light Forged S/B Chevy Assembly-434 Dome-6 Rod-350 Mains-.030 OS

400 Chevy Small Block V8, 434 Chevy Small Block V8, 350 mains Main Journal Style

0 Reviews | 0 Answered Questions
Out of Stock
Kit Item Unavailable
Select your vehicle to verify fitment.
Select Vehicle
Light Forged Small Block Chevy Assembly, 434 Dome, 6 Inch Rods, 350 Mains
Light Forged S/B Chevy Assembly-434 Dome-6 Rod-350 Mains-.030 OS
Zoomed In Image
Part # 9153065-040
Add to Cart
Call to Order
Add to Buildlist

What's In The Kit
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item 9153065-040 is made to order. It will be shipped from our warehouse when it is produced.

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Add to Cart


Main Journal Style:
350 mains
Cylinder Bore Size:
.030" Oversized
Engine Stroke:
Connecting Rod Type:
Connecting Rod Length:
Connecting Rod Material:
Forged 4340 Steel
Piston Style:
Piston Diameter:
Piston Material:
Forged Aluminum
Piston Weight:
435 grams
Piston Ring Style:
Crankshaft Material:
Forged 4340 Steel
Wrist Pin Diameter:
MFG. Part #:
Sold in Quantity:


Our lightweight forged rotating assembly engine rebuild kits include a 44-45 lb. Scat Superlight 4340 forged 2-pc rear main seal crankshaft, Scat 4340 forged I-beam connecting rods and Mahle pistons complete with wrist pins, locks and rings. Rod and main bearings included. Standard size journals.

All balancing is done with our state-of-the-art Hines balancer by race mechanics with over 30 years of experience. A kit purchased with the included balance job will ship in 24-48 hours.

Choose from standard, .030, or .040 oversize.

NOTE: These rotating assemblies may require additional charges for heavy metal.

Item Details

Dome, 435 g
Comp. 64cc: 13.7
Ring Style: E
4.125" bore x 4" stroke

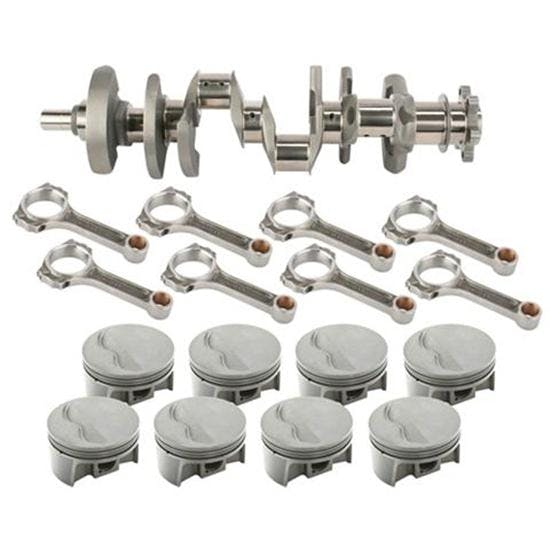

Kit includes:

  • Scat 4340 Lightweight Forged Steel Crankshaft
    • Standard size journals
    • Profiled aero-wing counterweights
    • Pendulum cut to reduce rotating mass
    • Straight shot and chamfered oil holes
    • Nitride hardened and shot peened
    • Lightening holes in all rod throws
    • Large radius on all journals
  • Scat Pro Comp 4340 I-Beam Rods
    • Stroker clearanced
    • ARP 7/16" cap screw bolts
    • Bushed pin
    • Set of 8 rods
    • 6.0" rod: 629 grams
    • Crank pin: 2.100"
    • Wrist pin: .927"
    • B.E. width: .940"
  • Mahle PowerPak Forged Pistons
    • Lightweight slipper skirt design
    • Phosphate coated
    • Grafel anti-friction skirt coating
    • 4.000" bore pistons available in standard, .030, .040, or .060 sizes
    • 4.125" bore pistons available in standard, .030 or .040 sizes
    • Set of 8 pistons
    • Includes low drag rings, lightweight wrist pins and round wire locks
  • King HP Series Main & Rod Bearings
    • 0.015" thick top layer for superior macro particle embedability and conformability
    • 40 Vickers hardness to resist overlay migration and extrusion
    • 450°F heat threshold for superior protection against friction and overheating
    • Mains are 3/4 grooved for improved oiling to the rod journals
    • Bi-metal aluminum silicon alloy featuring fine micro-bore finish
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Mahle .040 Oversized Chevy 434 Dome Powerpak 6 Rod Pistons, 4 Stroke
    Qty x 1
  • Scat 26000716 Small Block Chevy 4340 I-Beam Rods, 6.0 Inch, Bushed Pin
    Qty x 1
  • Scat 350-4000-6000-21LW F43 Chevy Crankshaft 4 Stroke 350 Main 2.1 Rod
    Qty x 1
  • King HP Series Chevy 350/400 Large Journal Engine Rod Bearings, Std
    Qty x 1
  • King HP Series Chevy 350 Large Journal Engine Main Bearings-Standard
    Qty x 1
  • Labor To Side Clearance Rods and Balance Rotating Assembly, 434 Kit
    Qty x 1
