#9153000
Light Forged SB Chevy Rotating Assem., 350 Inverted Dome, 5.7 Rod
by
Speedway Motors
$2,332.99
kit
Out of Stock
This item is currently not available
Shop all Speedway Rotating Assemblies
Product Summary
350, 350 mains Main Journal Style, 3.480" Engine Stroke
Comes as a Kit
View Kit Components
See more details
Key Specs
MFG. Part # | 9153000 |
Brand | Speedway Motors |
Connecting Rod Type | I-Beam |
Piston Style | Inverted Dome |
Piston Material | Forged Aluminum |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsMade to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details

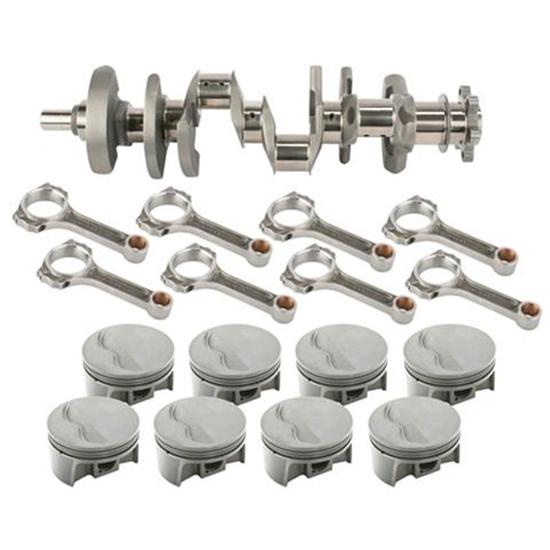

Our lightweight forged rotating assembly engine rebuild kits include a 44-45 lb. Scat Superlight 4340 forged 2-pc rear main seal crankshaft, Scat 4340 forged I-beam connecting rods and Mahle pistons complete with wrist pins, locks and rings. Rod and main bearings included. Standard size journals.
All balancing is done with our state-of-the-art Hines balancer by race mechanics with over 30 years of experience. Kit when purchased with the included balance job will ship in 24-48 hours.
Item Details
Inverted dome, 483 gComp. 64cc: 9.0
Ring Style: E
Kit includes:
- Scat 4340 Lightweight Forged Steel Crankshaft
- Standard size journals
- Profiled aero-wing counterweights
- Pendulum cut to reduce rotating mass
- Straight shot and chamfered oil holes
- Nitride hardened and shot peened
- Lightening holes in all rod throws
- Large radius on all journals
- Scat Pro Comp 4340 I-Beam Rods
- Stroker clearanced
- ARP 7/16 " cap screw bolts
- Bushed pin
- Set of 8 rods
- 5.7 " rod: 628 grams
- Crank pin: 2.100 "
- Wrist pin: .927 "
- B.E. width: .940 "
- Mahle PowerPak Forged Pistons
- Lightweight slipper skirt design
- Phosphate coated
- Grafel anti-friction skirt coating
- 4.000 " bore pistons available in standard, .030, .040, or .060 sizes
- 4.125 " bore pistons available in standard, .030 or .040 sizes
- Set of 8 pistons
- Includes low drag rings, lightweight wrist pins and round wire locks
- King HP Series Main and Rod Bearings
- 0.015 " thick top layer for superior macro particle embedability and conformability
- 40 Vickers hardness to resist overlay migration and extrusion
- 450°F heat threshold for superior protection against friction and overheating
- Mains are 3/4 grooved for improved oiling to the rod journals
- Bi-metal aluminum silicon alloy featuring fine micro-bore finish
- 0.015 " thick top layer for superior macro particle embedability and conformability
Kit includes:
- Scat 4340 Lightweight Forged Steel Crankshaft
- Standard size journals
- Profiled aero-wing counterweights
- Pendulum cut to reduce rotating mass
- Straight shot and chamfered oil holes
- Nitride hardened and shot peened
- Lightening holes in all rod throws
- Large radius on all journals
- Scat Pro Comp 4340 I-Beam Rods
- Stroker clearanced
- ARP 7/16 " cap screw bolts
- Bushed pin
- Set of 8 rods
- 5.7 " rod: 628 grams
- Crank pin: 2.100 "
- Wrist pin: .927 "
- B.E. width: .940 "
- Mahle PowerPak Forged Pistons
- Lightweight slipper skirt design
- Phosphate coated
- Grafel anti-friction skirt coating
- 4.000 " bore pistons available in standard, .030, .040, or .060 sizes
- 4.125 " bore pistons available in standard, .030 or .040 sizes
- Set of 8 pistons
- Includes low drag rings, lightweight wrist pins and round wire locks
- King HP Series Main and Rod Bearings
- 0.015 " thick top layer for superior macro particle embedability and conformability
- 40 Vickers hardness to resist overlay migration and extrusion
- 450°F heat threshold for superior protection against friction and overheating
- Mains are 3/4 grooved for improved oiling to the rod journals
- Bi-metal aluminum silicon alloy featuring fine micro-bore finish
- 0.015 " thick top layer for superior macro particle embedability and conformability
Guides & Documents
Specifications
Specifications
KEY SPECS | |
---|---|
MFG. Part # | 9153000 |
Brand | Speedway Motors |
Connecting Rod Type | I-Beam |
Piston Style | Inverted Dome |
Piston Material | Forged Aluminum |
GENERAL | |
Main Journal Style | 350 mains |
Engine Stroke | 3.480" |
Connecting Rod Length | 5.700" |
Connecting Rod Material | Forged 4340 Steel |
Connecting Rod Weight | 590 grams |
Connecting Rod Bolt Diameter | 7/16" |
Piston Weight | 483 grams |
Piston Ring Style | E |
Crankshaft Material | Forged 4340 Steel |
Rear Main Seal Style | 2-piece |
Wrist Pin Diameter | .9272" |
Main Journal Diameter | 2.448" |
Rod Journal Diameter | 2.10" |
Bearing Construction | Bi-metal |
Bearing Undersize | Standard |
Narrowed Bearing | Yes |
Coated Bearing | No |
Sold in Quantity | Kit |
