Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit

Leaf Spring Shock Mount and Axle Pad Kit

Universal Fit, 3.65" Slot Length, Steel, Hardware Included

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit
X
Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit
Leaf Spring Shock Mount and Axle Pad Kit
Zoomed In Image
Part # 91605029
Save 15%
$109.99
$129.98
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Replace your old worn out stock U-bolt setup with our brand new shock mount and axle pad kit
  • Features two of our Universal Leaf spring Lower Shock Mount Plates, a Weld-On Spring Pad for 3" Axle Tubes, & four 10" U-Bolts for 3" Axle Tubes
  • Leaf spring mount plates and U-bolts are forged of zinc plated steel to prevent corrosion & spring pads have a black painted finish
  • U-bolts are 1/2" diameter with 1/2"-20 threads and offer a generous length of 10" to accommodate lowering blocks to fine tune your ride
  • Includes hardware

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Slot Length:
3.65"
Material Type:
Steel
Hardware Included:
Yes
Sold in Quantity:
Kit

Info

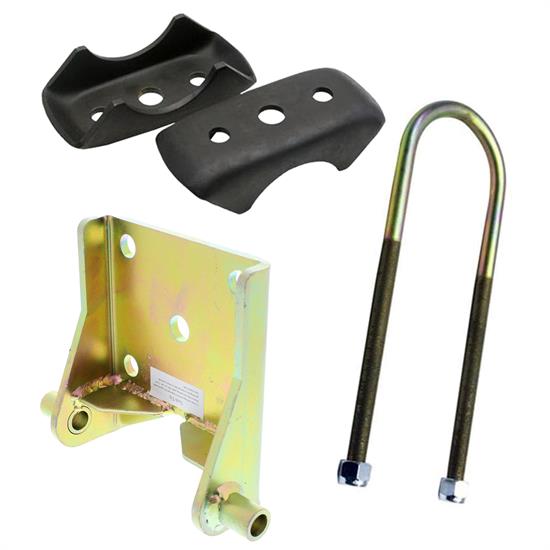

 Kit Includes:

  • (2) Speedway Universal Leaf Spring Lower Shock Mount Plates
  • (1) Speedway Weld-On Spring Pad for 3 Inch Axle Tub
  • (4) Speedway Leaf Spring U-Bolts for 3 Inch Axle Tube, 10 Inch Long

Speedway Universal Leaf Spring Lower Shock Mount Plates

Our universal leaf spring plate features a 1/2" mounting boss on both the front and rear allowing it to work on either side or to run two shocks.

  • Overall Length: 6.000"
  • Overall Width: 7.500"
  • Hole Diameter: 0.58"
  • Overall Thickness: .250"
  • Slot Width: 3.65"
  • Material Type: Steel

Speedway Weld-On Spring Pad

These weld-on leaf spring pads fit 3" diameter axle tubes. Works with all 2-1/2" wide leaf springs.

  • Overall Length: 5.875"
  • Overall Width: 2.5625"
  • Hole Diameter: .6875"
  • Material Type: Steel
  • Finish: Painted

Speedway Leaf Spring U-Bolts

Speedway leaf sping axle U-bolts are a great replacement for worn out stock bolts and feature a generous length to accomodate lowering blocks (sold separately) to fine tune your ride height. U-bolts are made from heat-treated and zinc-plated steel to ensure long life and durability. All bolts are 1/2" diameter with 1/2"-20 threads. Fits rearend housings with 3" diameter axle tubes.

  • Works with 3" diameter axle tubes
  • 10" overall length
  • 6" thread length
  • 1/2"-20 thread pitch
  • Includes nylock nuts
  • Overall Length: 10.00"
  • Quantity Included: 4
  • Outside Diameter: 4.185"
  • Inside Diameter: 3.25"
  • Center to Center: 3.685"
  • Diameter: .50"
  • Thread Length: 6.00"
  • Thread Pitch: 1/2"-20
  • Thread Type: RH Male

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Speedway Universal Leaf Spring Lower Shock Mount Plate
    Qty x 2
  • Speedway Weld-On Spring Pad for 3 Inch Axle Tube
    Qty x 1
  • Leaf Spring U-Bolt for 3 Inch Axle Tube, 10 Inch Long
    Qty x 4
