#1025506
$56.99
/each
On Backorder
This part is Backordered. We estimate this item will ship on or before November 17th.
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| Shock Type | Mono Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 1.54" |
| Shock Body Type | Smooth |
Need help?
855.313.9176Quick and Easy Returns

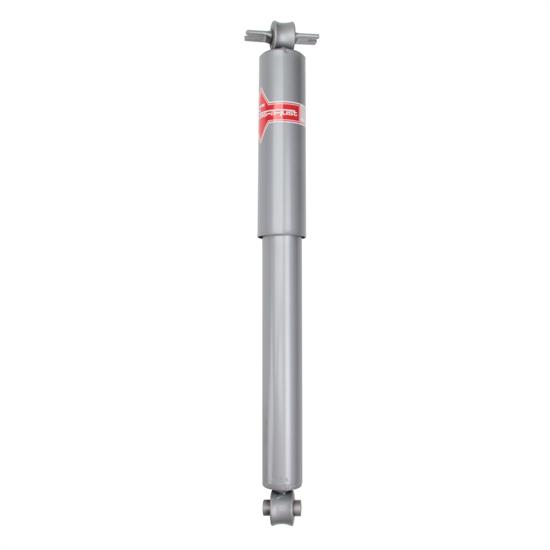

Return PolicyThe KYB Gas-a-Just monotube shock has two possible purposes. First, it's a direct OE replacement if your vehicle came with a monotube. Second, the Gas-a-Just is also performance upgrade for vehicles that came factory direct with a twin tube. It can also increase steering responsiveness by as much as 30%. The monotube design never experiences shock fade and the high gas pressure can automatically add performance for more aggressive driving conditions or for heavier loads.
Application
| KEY SPECS | |
|---|---|
| MFG. Part # | KG5506 |
| Brand | KYB |
| Shock Type | Mono Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 1.54" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Position | Rear |
| Stroke | 7.87" |
| Mount Position | Stock Mount |
| Upper Shock Mount | T-Bar |
| Lower Shock Mount | 7/16" Bushed Eyelet |
| Extended Length Range | 20.00" to 20.99" |
| Extended Length | 20.83" |
| Compressed Length Range | 12.00" to 12.99" |
| Finish | Painted |
| Compressed Length | 12.95" |
| Gas Charged | Yes |
| GENERAL | |
| Rebuildable | No |
| Schrader Valve | No |
| Shock Stroke | 7.87 |
| Hardware Included | Yes |
| Color | Silver |
| Sold in Quantity | Each |
1 Question • 1 Answer
I just received a pair of KYB rear shocks (your # 102-5506) and I need a 1/2" lower bushing for mounting to your shock mounting plates (# 917-20249). The 5506 shocks have a 7/16" mounting hole. Is the catalog wrong or am I missing something? Thanks!
by DICK
• 10 years ago
1 answer
View Answer
1 of 1 questions shown
1974-1975 Buick Apollo
1975-1979 Buick Skylark
1968 Chevy Chevy II
1969-1979 Chevy Nova
1974-1979 Oldsmobile Omega
1977-1979 Pontiac Phoenix
1974-1977 Pontiac Ventura
