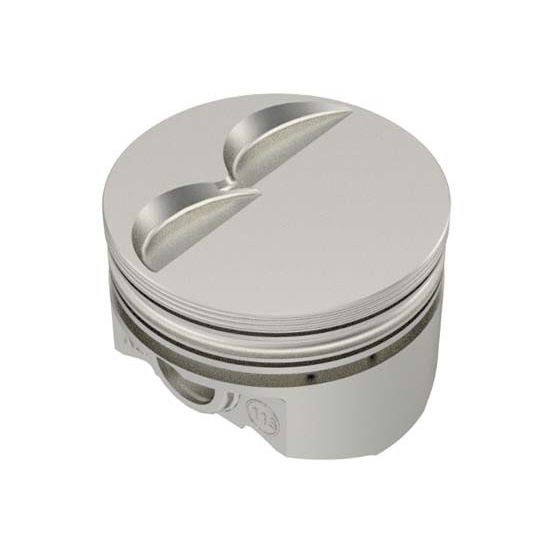

KB Ford 302 Hypereutectic Pistons, Flat Top, 5.09 Rod
302 Ford Small Block V8, Hypereutectic Aluminum Piston Material, 5.090" Connecting Rod Length
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Keith Black Hypereutectic pistons are T-6 heat treated and offer reduced scuffing and improved durability over stock replacement pistons. They also allow you to run tighter clearances because of reduced thermal expansion, which means more race winning power.
- 390 Hypereutectic alloy
- Fully machined crowns and valve reliefs
- Drilled oil drain backs
- Full floating wrist pins
- Triple wound spiral locks
- Reflective alloy allows 2% power increase
- Quench dome technology minimizes deterioration
- Zero deck quench designs
For Ford 302 c.i. (4.00" bore x 3.00" stroke). Use piston ring Style A (5/64", 5/64", 3/16").
Ring Style Chart (GIF)
474-115 Instructions (PDF)
Item DetailsC/R 64cc: 9.0, C/R 69cc: 8.5
Bore and Stroke: 4.00" x 3.00"
Rod Length: 5.09" Ring Style: A
- Pin Diameter: .912"
