#474180-040

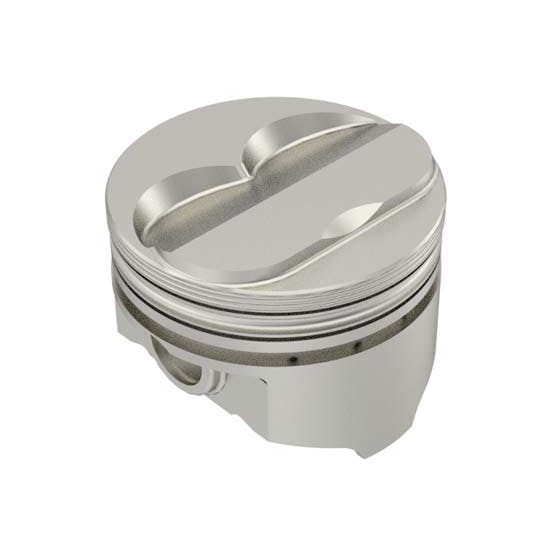

Keith Black KB180.040 .200 Dome 5.7 Rod Chevy 350 Hypereutectic Piston
$430.11
/set
In Stock
Order soon, only 2 left in stock!
Quantity
Need Help? Call to Order
Add to a list
Share
Select an engine to verify Fitment
Select Engine
|
#474180-040
$430.11
/set
In Stock
Order soon, only 2 left in stock!
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
| MFG. Part # | KB180.040 |
| Piston Style | Dome |
| Piston Material | Hypereutectic Aluminum |
| Wrist Pin Included | Yes |
| Wrist Pin Style | Press-Fit or Floating |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyKeith Black Hypereutectic pistons are favored for their improved power and reduced scuffing. The unique design & manufacturing processes combine to produce a rigid piston, which will rock less in the bore improving ring seal. These T-5 heat treated pistons also offer reduced thermal expansion, which allows you to run tighter clearances and allows the piston rings to seal better and minimize blow-by.
For S/B Chevy 350 c.i. (4.000" bore x 3.48" stroke).
Charts
474-180 Instructions (PDF)
Ring Style Chart (GIF)
Specs
Guides & Documents
For race/ off road use or for use on pre-1966 vehicles.
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | KB180.040 |
| Brand | Keith Black |
| Piston Style | Dome |
| Piston Material | Hypereutectic Aluminum |
| Wrist Pin Included | Yes |
| Wrist Pin Style | Press-Fit or Floating |
| GENERAL | |
| Piston Diameter | 4.040" |
| Dome Height | .200" |
| Stroke | 3.480" |
| Connecting Rod Length | 5.700" |
| Piston Weight | 550 grams |
| Piston Ring Style | C |
| Wrist Pin Diameter | 0.9272" |
| Wrist Pin Weight | 145 grams |
| Top Ring Thickness | 1/16" |
| Second Ring Thickness | 1/16" |
| Oil Ring Thickness | 3/16" |
| Compression 58cc = | 13.1 : 1 |
| Compression 64cc = | 11.9 : 1 |
| Compression 76cc = | 10.3 : 1 |
| GTIN Code | 800745052063 |
| Sold in Quantity | Set |
5
1 Review
5
1 reviews
5
1
4
0
3
0
2
0
1
0
Filter by Ratings
Chevy dome pistons
5.0
a year ago
No name
Claxton Georgia
Verified
Built a 355 with these pistons and ran it yesterday on engine stand ,runs very well and so far I am well satisfied with this product
Would Recommend
Showing 1 of 1 reviews
