Add to Cart
$54.99
$29.99

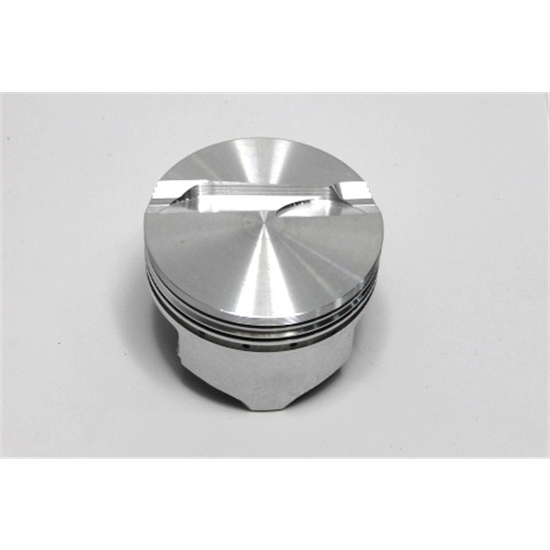

KB .060 Oversized Flat Top 5.7 Rod Chevy 383 Hypereutectic Piston
KB .060 Oversized Flat Top 5.7 Rod Chevy 383 Hypereutectic Piston

KB .060 Oversized Flat Top 5.7 Rod Chevy 383 Hypereutectic Piston

377 Chevy Small Block V8, 383 Chevy Small Block V8

0 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
KB .060 Oversized Flat Top 5.7 Rod Chevy 383 Hypereutectic Piston
KB .060 Oversized Flat Top 5.7 Rod Chevy 383 Hypereutectic Piston
KB .060 Oversized Flat Top 5.7 Rod Chevy 383 Hypereutectic Piston
KB .060 Oversized Flat Top 5.7 Rod Chevy 383 Hypereutectic Piston
KB .060 Oversized Flat Top 5.7 Rod Chevy 383 Hypereutectic Piston
X
KB .060 Oversized Flat Top 5.7 Rod Chevy 383 Hypereutectic Piston
KB .060 Oversized Flat Top 5.7 Rod Chevy 383 Hypereutectic Piston
KB .060 Oversized Flat Top 5.7 Rod Chevy 383 Hypereutectic Piston
Zoomed In Image
Part # 474134-060-1
Save 45%
$29.99
$54.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Info

This item is garage sale priced because it's been discontinued.  Single piston only.



**No Warranty, No Returns On Garage Sale Items**



Keith Black Hypereutectic pistons are favored for their improved power and reduced scuffing. The unique design & manufacturing processes combine to produce a rigid piston, which will rock less in the bore improving ring seal. These T-5 heat treated pistons also offer reduced thermal expansion, which allows you to run tighter clearances and allows the piston rings to seal better and minimize blow-by.

For S/B Chevy 383 c.i. (4.000" bore x 3.75" stroke).

  • 390 Hypereutectic alloy
  • Fully machined crowns and valve reliefs
  • Drilled oil drain backs
  • Full floating wrist pins
  • Triple wound spiral locks
  • Reflective alloy allows 2% power increase
  • Quench dome technology minimizes deterioration
  • Zero deck quench designs
  • Lightweight wrist pins

Ring Style Chart (GIF)

474-134 Instructions (PDF)

Item Details

C/R 58cc=11.9, 64cc=10.9, 76cc=9.6
Piston/Pin Weight: 650 g
Rod Length: 5.7", Ring Style: A

Specs

  • Comp Height 5.7" Rod -  1.433
  • Comp Height 6.0" Rod -  1.13
  • Pin Diameter -  0.9272

Specs

Sold in Quantity:
Each
Piston Ring Style:
A
Connecting Rod Length:
5.700"
Piston Material:
Hypereutectic Aluminum
Piston Style:
Flat Top w/ 2 valve reliefs
Compression 58cc =:
11.9 : 1
Compression 64cc =:
10.9 : 1
Compression 76cc =:
9.6 : 1
Garage Sale:
Yes
Piston Diameter:
4.060
Stroke:
3.75
Wrist Pin Diameter:
.9272
Piston Weight:
505
Wrist Pin Weight:
145

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
