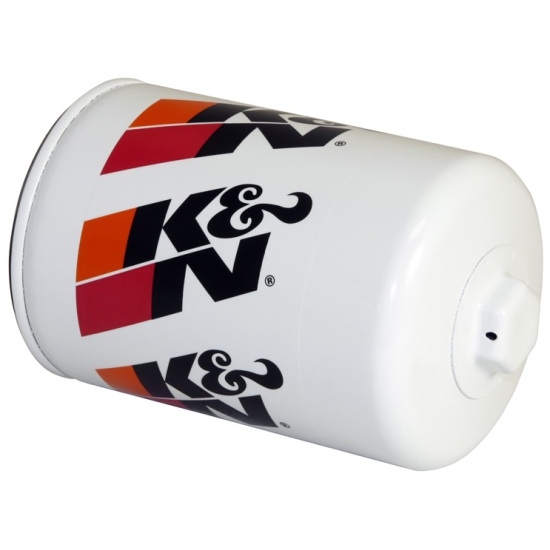

Product Summary

Many Engines, 5.719" Overall Height, Bypass Valve

  • Was originally developed for demanding race applications
  • A drilled hole on the nut provides for safety wire attachment
  • Made with thicker canister walls for extra strength and durability
  • Filters come with a 1 inch nut welded to the top of the canister so they can be easily wrenched-off with a standard tool
  • They also use a resin impregnated cellulose filter media which allows for higher flow rates while providing outstanding filtration

Key Specs

MFG. Part #HP-3002
BrandK&N

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

Originally developed for demanding race applications, K&N's Premium Wrench-Off Oil Filter has become a favorite among consumers for its durability and easy removal. Most of our automotive and marine oil filters come with a 1 inch nut welded to the top of the canister so they can be easily wrenched-off with a standard tool. To satisfy the demands of racers, our oil filter has many features over and above the requirements of most vehicles. We use thicker canister walls for extra strength and durability which reduces the risk of damage from loose rocks and debris. The drilled hole on the nut provides for safety wire attachment. Our oil filters also use a resin impregnated cellulose filter media. This allows for higher flow rates while providing outstanding filtration.
  • K&N premium oil filters use a resin impregnated cellulose filter media that allows for higher flow rates while providing outstanding filtration
  • A 1 inch nut is welded to the top of the canister so they can be easily wrenched-off

Application

Specs

  • Height: 5.7 in
  • Outside Diameter: 3.69 in
  • Thread Inside Diameter: 0.81
  • Thread Number: 16 UNS
  • PSI Relief Valve: None
  • Anti Drain Back Valve: Yes
  • Style: Canister
  • Removal Nut: Yes
  • Gasket Material: Nitrile Rubber
  • Filter Material: High Flow Premium Media
  • Bypass Valve: No

Warranties

Specifications

KEY SPECS
MFG. Part #HP-3002
BrandK&N
GENERAL
Overall Height5.719"
Outside Diameter3.696"
Material TypeHigh Flow Premium Media
GTIN Code024844035097
Removal Nut IncludedYes
Oil Filter StyleCanister
Anti Drain Back ValveYes
Bypass ValveYes
Gasket MaterialNitrile Rubber
