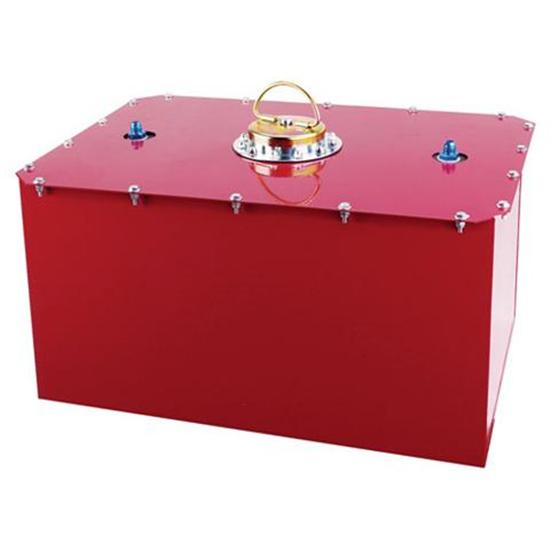

JAZ 271-122-NF Steel IMCA 22 Gallon Can Fuel Cell, 34.5 x 18.75 x 10.5
JAZ 271-122-NF Steel IMCA 22 Gallon Can Fuel Cell, 34.5 x 18.75 x 10.5
Universal Fit, 22 gallons Capacity, 34.00" to 34.99" Overall Length Range, Steel, Powder Coated
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
JAZ 271-122-NF Steel IMCA 22 Gallon Can Fuel Cell, 34.5 x 18.75 x 10.5
X
Part # 4581221
$314.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Details
Capacity:
22 gallons
Overall Length:
34.5"
Overall Height:
10.5"
Overall Width:
18.75"
Overall Length Range:
34.00" to 34.99"
Overall Height Range:
10.00" to 10.99"
Overall Width Range:
18.00" to 18.99"
Material Type:
Steel
Finish:
Powder Coated
Color:
Red
Outlet Fitting Quantity:
1
Outlet Fitting:
-8 AN
Return Fitting:
-8 AN
Fuel Cell Cap Style:
D-ring Bail Handle
Safety Foam Included:
No
Sold in Quantity:
Each
GTIN Code:
000271122005
MFG. Part #:
271-122-NF
Info
The 20 gauge steel can encloses a tough cross-link polyethylene cell. Includes fuel cell, steel can, IMCA required tip-over valve, and 4" diameter twist-on cap. Has a -8 AN fuel line hookup and return vent. Safety foam sold separately.
- Seamless cross-linked polyethylene inner shell
- 20 gauge welded steel container powder coated red
- D-Ring bail handle cap assembly
- Anodized -8 AN fuel pickup
- Anodized -8 AN tip-over valve vent
- Pickup hose routed to right rear corner
Item Details
34-1/2" Long, 18-3/4" Wide, 10-1/2" Deep46.4 lbs.
IMCA Approved
Notes
- Carefully determine the size of fuel cell needed. Depending on the capacity, a full fuel cell will generally weigh between 100 and 200 lbs. Buy the optimum size fuel cell to best accommodate weight bias and fuel consumption.
- The fuel pickup comes in from the top center of the cell and has a hose attached to it that hangs down and rests against the bottom of the cell. It can be rotated if needed, depending on what direction you are planning to install the cell in your specific application.
- These fuel tanks have no certification tags. They are approved for most racing where a bladder is not required.
- The top lip sticks out 3/4" further on each side of the fuel cell.
Important Messages:
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
