#450235D

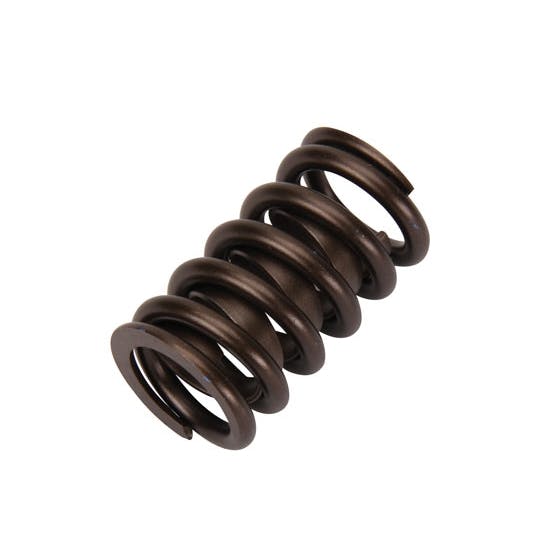

Isky Racing Cams 235D Valve Springs, 1.26 Inch Diameter, S/B Chevy
2 Reviews
|
1 Question
$152.99
set
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Chevy Small Block V8, 1.26" Outside Diameter
See more details
Key Specs
MFG. Part # | 235D |
Brand | Isky Cams |
Valve Spring Style | Single Spring w/ Damper |
Outside Diameter | 1.26" |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyIsky Cams 235D Details
Isky Cams 235D Details
These durable racing valve springs from Isky Racing Cams are built for high performance small block chevy engines. They are ideal for oval track use and feature a coil bind height of 1.15". Sold as a set of 16.
- Small Block Chevy racing springs
- Will handle .550" net valve lift
- 1.260" outside diameter
- .886 inside diameter
- 130lbs@1.750"
- 320lbs@1.200"
- 1.150" coil bind
- Sold as a set of 16
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Isky Cams 235D Specifications
Isky Cams 235D Specifications
KEY SPECS | |
---|---|
MFG. Part # | 235D |
Brand | Isky Cams |
Valve Spring Style | Single Spring w/ Damper |
Outside Diameter | 1.26" |
GENERAL | |
Open Pressure | 320 lbs. at 1.20" |
Seat Pressure | 130 lbs. at 1.75" |
Inside Diameter | .886" |
Sold in Quantity | Set |
Solid Height | 1.15" |
Notes | Set of (16) |
