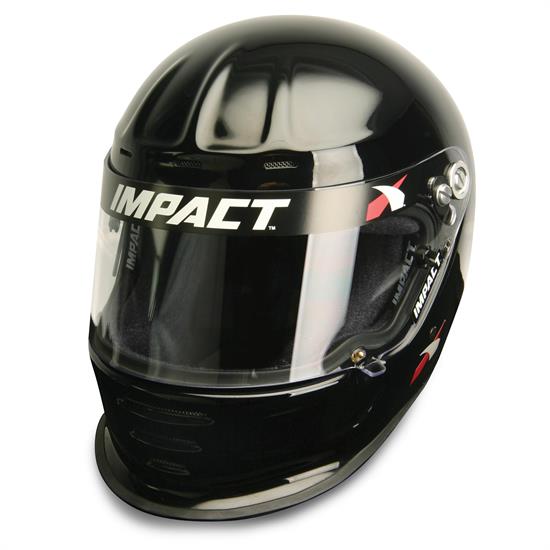

Impact Racing Draft TS SA2020 Racing Helmet

#4491972

Impact Racing Draft TS SA2020 Racing Helmet

Write a Review

Ask a Question

Featuring our exclusive wide eye port, Impact’s Draft TS offers an exceptional range of front and peripheral vision, while providing cooling and fog free ventilation with integrated crown and chin bar vents

Type:

Draft TS

Color:

Select a color

Size:

Select a size (Helmets Size Chart)

Discontinued

This item is currently not available

Shop all Impact Racing Draft TS Helmets

Product Summary

Full Face Helmet Type, Snell SA2020 Safety Rating

Featuring our exclusive wide eye port, Impact’s Draft TS offers an exceptional range of front and peripheral vision, while providing cooling and fog free ventilation with integrated crown and chin bar vents
The extended wicker bill captures downward airflow to reduce helmet lifting and buffeting while Impact's “Intelligent Gray Matter” liner is upholstered with fire retardant soft-knit Nomex® for the ultimate in comfort
Interchangeable cheek pads offer a customized fit and can be quickly and easily changed out with Impact’s various cheek pads available in a wide range of thicknesses and configurations
The Impact Draft TS helmet is finished with a fire-retardant Kevlar® chin strap with a dual D-Ring closure and our 1/8” polycarbonate shield with three-position detent
Available in Black, Flat Black, Silver, and White - sizes X-Small through X-Large

See more details

Key Specs

Helmet Type	Full Face
Safety Rating	Snell SA2020
Helmet Shell Material	Carbon Composite
Age Group	Adult
Color	Select Type, Color and Size

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

Please carefully read, understand and adhere to the following information. Since your helmet is engineered to very exacting standards, correct care is vital to its proper functioning.

SHIELD HARDWARE: to insure proper shield fit and function, it is important to check the tightness of the shield pivot and shield positioning screws before every use. Tighten until screws are firmly seated, careful to not over tighten.

HELMET CHEEK FIT PADS: to change, remove or replace cheek fit pads, turn the helmet upside down and place thumb under cheek pad and ‘pinch’ thumb with fingers on exterior shell. This will prevent separating and helmet upholstery from the shell as you remove the cheek fit pad. With free hand, slowly pull the cheek fit pad away from the hook and loop interior starting at the corner. Replace with new cheek pad.

HELMET INNER LINER: after a race, wet fit pads and liner should be dried in the shade using a fan.

MINI CHAMP & VAPOR HELMET INSERTS: The helmet comes from the factory as a size large without an insert. To place insert into the helmet perform the following: Hold Helmet with base opening facing you. Carefully fold back hat band upholstery toward you around the entire circumference of the helmet. Insert a Quick-Fit insert at the rear of helmet first and continue to push insert in and smooth insert down around the entire crown of the helmet. Fold hat band liner back into position.

HELMET HARDWARE: all fastening hardware and straps should be checked regularly for strength and security. Keeping all components of the helmet clean and well cared for is very important. Even perspiration can compromise the effectiveness of the hardware and straps

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Details

Featuring our exclusive wide eye port, Impact’s Draft TS offers an exceptional range of front and peripheral vision, while providing cooling and fog free ventilation with integrated crown and chin bar vents. The extended wicker bill captures downward airflow to reduce helmet lifting and buffeting while our “Intelligent Gray Matter” liner (a variable-density, single-piece helmet liner) is upholstered with fire retardant soft-knit Nomex® for the ultimate in comfort. Interchangeable cheek pads offer a customized fit and can be quickly and easily changed out with Impact’s various cheek pads available in a wide range of thicknesses and configurations. The Impact Draft TS helmet is finished with a fire-retardant Kevlar® chin strap with a dual D-Ring closure and our 1/8” polycarbonate shield with three-position detent.

Made in the USA
SNELL SA2020 CERTIFIED
Shell construction featuring proprietary American space-age Carbon-Kevlar tri-weave composite
Extended chin foil captures downward airflow to reduce helmet lift and buffeting
Integrated crown and chin bar vents
Impact's wide eye port for great vision area
Gray Matter fire-resistant covered liner made of Impact's "intelligent" single piece variable-density core
Interchangeable cheek pads for a perfect fit (comes with std cheek pads, other sizes are extra)
Fire-resistant Kevlar® chinstrap with locking dual D-ring design
.125" Clear Shield comes standard with 3 position detent
Colors available: Black, Flat Black, Silver, White
Sizes available: XSmall, Small, Medium, Large, XLarge, 2XLarge

Charts

Impact Racing Adult Helmet Sizing Chart (JPG)

Guides & Documents

Helmets Sizing Chart (4491972)

Specifications

KEY SPECS
MFG. Part #	Select Type, Color and Size to see
Brand	Impact Racing
Helmet Type	Full Face
Safety Rating	Snell SA2020
Helmet Shell Material	Carbon Composite
Age Group	Adult
Color	Select Type, Color and Size to see
Finish	Select Type, Color and Size to see

GENERAL
Restraint Compatible	Yes
Helmet Size	Select Type, Color and Size to see
Hat Size	Select Type, Color and Size to see
Head Circumference - Metric	Select Type, Color and Size to see
Fresh Air Equipped	No
Shield Included	Yes
Helmet Shield Color	Clear
Sold in Quantity	Each
