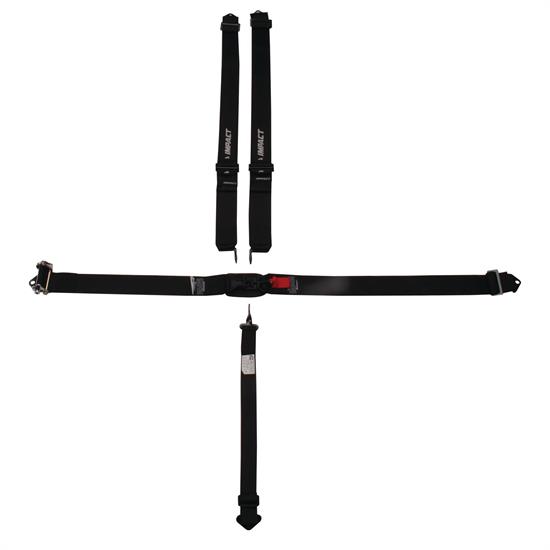

Impact Racing 5-Point Ratchet Seat Belt Set, 3" Shoulder Strap
Oval Track Cars, 16.1 SFI Rating, Complete Harness Harness Component, 5-Point Mounting Points
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
IMPACT seat belts for sprint cars and midgets features a new design ratchet lap belt and 3" shoulder harness. This 5 point racing harness combo uses the tried and true latch and link buckle system. The new ratcheting mechanism allows for faster and tighter adjustment of the lap belt without any assistance. The ratcheting mechanism is made from heat-treated 4130 chromoly steel. This seat belt combo is SFI 16.1 rated and is printed on the tag. Impact recommends that 8-10 inches of the shoulder belt be passed wrap around.
- Pull down design with one lap belt adjuster
- Individual shoulder harness
- New, faster advanced ratcheting mechanism made of heat-treated 4130 chromoly steel
- Mechanism adjusts with 1/4 inch ratchet drive (not included)
- Bolt in end installation on the mechanism side
- Choice of snap-in or bolt-in ends on opposing side
SFI Transitioning to New Labels for Driver Restraints and Window Nets/Roll Cage Nets for 2017
In 2017, SFI Foundation, Inc. (SFI) changed the way its labels for Driver Restraints, Window Nets, and Roll Cage Nets are dated.
SFI implemented a New Label design which removed the punched-out month/year date of manufacture and instead incorporated a single expiration date pre-printed on the label. This system will eliminate the need for punch-dating of labels and aims to facilitate technical inspection of dated products in the field.
New Labels started to be used after January 1, 2017. An example of the new label (right), next to the old label (left) for comparison, is shown above.
The new labels are used for the following SFI products:
• Driver Restraints: SFI Specs 16.1, 16.2, 16.5, and 16.6
• Window Nets: SFI Spec 27.1
• Roll Cage Nets: SFI Spec 37.1
Labels will come out in 6-month segments per the chart shown above. These certified items may still be used for 2 years, the service life has not changed.
Be aware that product manufacturers are allowed to use the discontinued punch-date style labels (above left) until their existing supply runs out. Therefore, you may see the old-style labels on Driver Restraints and Window Nets/Roll Cage Nets for a while. Restraints or Nets with the old label may also still be used until they expire, which is 2 years from the date of manufacture punched on the tag.
