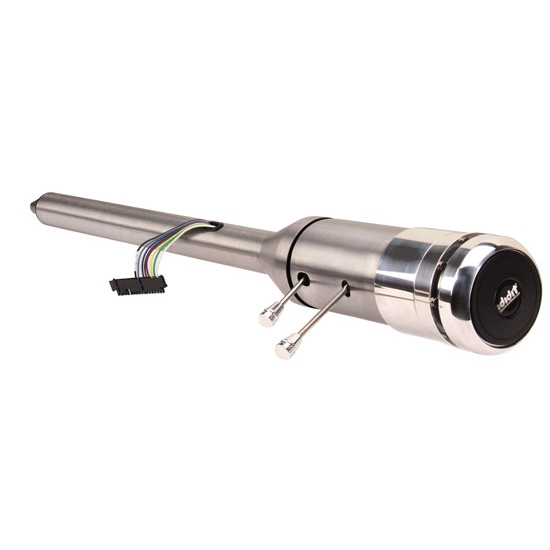

Ididit 1180320010 Tilt/Telescoping Floor Shift Steering Column, 32 In
Original equipment steering columns are loaded with unsightly brackets, tabs and switches. These columns are much cleaner in appearance and eliminate the column-mounted key switch. These non-shift versions feature a 2" O.D. column tube.
Measures 32" long from steering wheel base to end of the 1" double D shaft. Each has a standard GM 3-7/8" wire harness, 8-position tilt, and accepts a 9-bolt steering wheel.
- Steel tube diameter 2 inch OD
- 9 bolt wheel adaptor
- 8 position tilt
- Self canceling turn signals
- 4 way flasher
- Horn wiring
- Standard dress up kit
- IDIDIT 1” DD lower shaft
Note: The top head of the column has a built-in, locking 9 bolt steering wheel adaptor that when turned, moves your steering wheel either closer to you or further away. In a collapsed position the column will telescope 1 ½ “ towards the driver.
Conversion chart ( Wheel adaptor included in measurement)
28” Tilt column = 31 ¼ Tilt / Tele column
30” Tilt column = 33 ¼ Tilt / Tele column
32” Tilt column = 35 ¼ Tilt / Tele column
446-1230D Instructions (PDF)
- Column Dimensions (Link)
- Measures 7-5/8 from the end (steering wheel mount) to the end of the cone where the cone transitions into the 2 shaft.
