$469.99

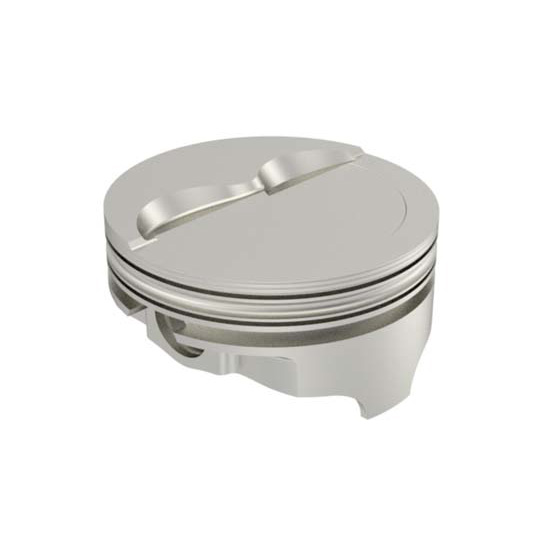

Icon Chevy 377 Forged Pistons, Dish, 6.0 Rod

377 Chevy Small Block V8, 400 Chevy Small Block V8, Forged Aluminum Piston Material

0 Reviews | 0 Answered Questions

In Stock

Ships FREE

Select your vehicle to verify fitment.

Select a vehicle to verify fitment.

Select Vehicle

Part # 474764

$469.99

set

Size

STD 030 040

Call to Order

Add to Buildlist

Click to Login

Compare

Details

Reviews

Q&A

Videos & Articles

Important Messages:

Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Piston Material:

Forged Aluminum

Piston Style:

Dish

Piston Diameter:

Select Size to see

Connecting Rod Length:

6.000"

Piston Ring Style:

Stroke:

3.48"

Wrist Pin Diameter:

.9272"

Piston Weight:

479 grams

Wrist Pin Weight:

132 grams

Compression 58cc =:

10.4 : 1

Compression 64cc =:

9.9 : 1

Compression 76cc =:

8.8 : 1

Sold in Quantity:

Set

MFG. Part #:

Select Size to see

GTIN Code:

Select Size to see

Info

We have been selling Keith Black pistons for years and now offer their premium new generation Icon forged pistons. Starting with 2618 alloy heat treated to high-strength T-6 specifications, these give you the best value for the money. Exclusive V-ribs add strength without adding weight and allow maximum cooling capacity.

For Chevy 377 c.i. (4.125" bore x 3.48" stroke). Use Style C piston rings (1/16", 1/16", 3/16").

High ductility 2618 alloy
Dual forced pin oiling on most applications
Lateral gas porting on higher compression ratios
Fully machined with deep valve pockets
Second land accumulator grooves
Top land mini groove technology
Diamond finished skirts
Triple wound spiral locks

Ring Style Chart (GIF)

474-764 Instructions (PDF)

Item Details

C/R 58cc=10.4, 64cc=9.89, 76cc=8.82
Piston Weight: 479 g.
Rod Length: 6.0"

Specs

Comp Height 5.7" Rod - 1.561
Pin Diameter - 0.9272

Some parts are not legal for use in California or other states with similar laws/regulations
