Product Summary

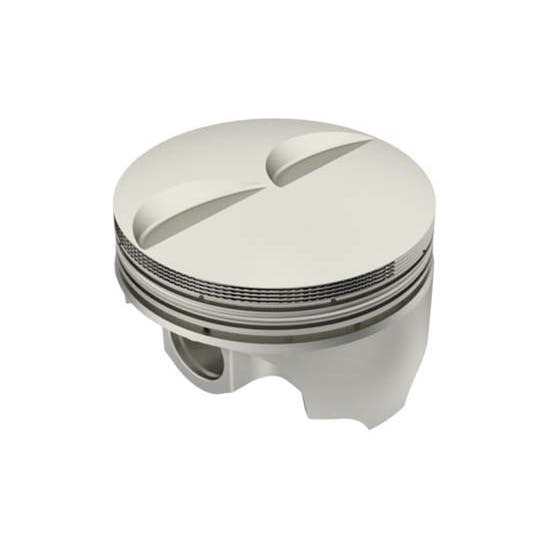

305, Flat Top w/ 2 valve reliefs Piston Style

    Key Specs

    MFG. Part #IC957.060
    Piston StyleFlat Top w/ 2 valve reliefs
    Piston MaterialForged Aluminum
    Wrist Pin IncludedYes
    Wrist Pin StylePress-Fit or Floating

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Icon Pistons IC957.060 Details

    Formerly KB Forged Pistons. Starting with 2618 alloy heat treated to high strength T-6 specifications, these give you the best value for your money. Exclusive V-rib adds strength without adding weight but allows maximum cooling.

    For Chevy 305 c.i. (3.736" bore x 3.48" stroke). Use Style E rings (1.5mm, 1.5mm, 3mm).

    • High ductility 2618 alloy
    • Dual forced pin oiling on most applications
    • Lateral gas porting on higher compression ratios
    • Fully machined with deep valve pockets
    • Second land accumulator grooves
    • Top land mini groove technology
    • Diamond finished skirts
    • Triple wound spiral locks

    Item Details

    C/R 58cc=10.2, 64cc=9.5
    Piston/Pin Weight: 510 g
    Rod Length: 5.7"

    Charts

    Specs

    • Comp Height 5.7" Rod -  1.565
    • Pin Diameter -  0.9272

    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    Icon Pistons IC957.060 Specifications

    KEY SPECS
    MFG. Part #IC957.060
    BrandIcon Pistons
    Piston StyleFlat Top w/ 2 valve reliefs
    Piston MaterialForged Aluminum
    Wrist Pin IncludedYes
    Wrist Pin StylePress-Fit or Floating
    GENERAL
    Piston Diameter3.796"
    Stroke3.480"
    Connecting Rod Length5.700"
    Piston Weight510 grams
    Piston Ring StyleE
    Wrist Pin Diameter0.9272"
    Wrist Pin Weight105 grams
    Compression 58cc =10.2 : 1
    Compression 64cc =9.5 : 1
    GTIN Code800745155801
    Sold in QuantitySet
