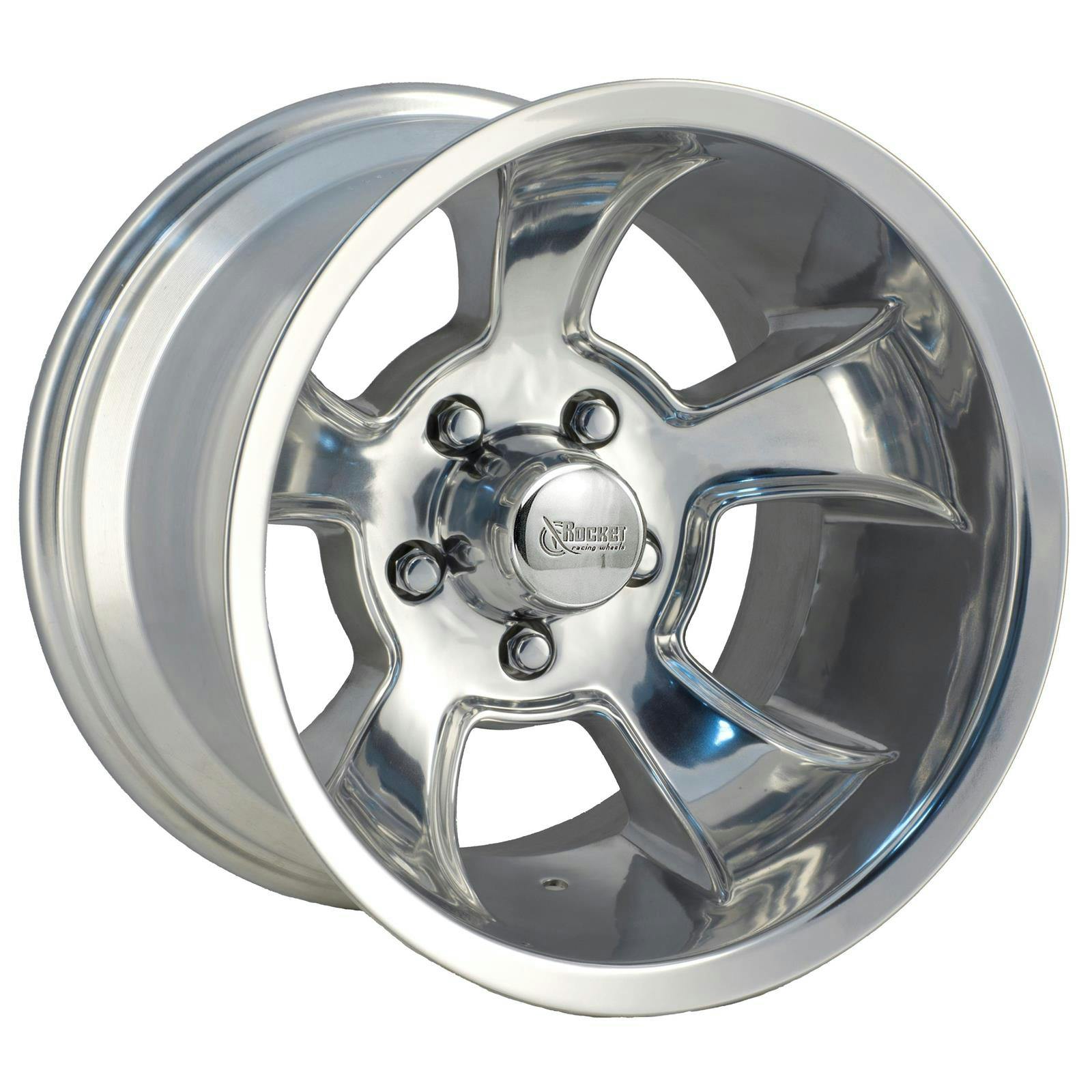

Rocket Racing Wheels Injector Series 15X10 Wheel, 5x4.5 BP, 3.75 BS
- Wheels have 15" and are 10" wide
- Made from lightweight yet strong aluminum and are available in polished or cast finish
- Features a 5x4.5" bolt pattern with a 3.75" backspace
Discontinued
This item is currently not available
Shop all Rocket Racing Injector Wheels
Product Summary
Universal Fit, 15 Inch Wheel Diameter, 10" Width
- Wheels have 15" and are 10" wide
- Made from lightweight yet strong aluminum and are available in polished or cast finish
- Features a 5x4.5" bolt pattern with a 3.75" backspace
- Reverse-mount nature of a soft lip wheel moves the drop center to the rear of the wheel which decreases rotational clearance
- Rotational clearance of the Injector is 6.35" from hub center to the drop center of the wheel
Key Specs
| Wheel Diameter | 15 Inch |
| Width | 10" |
| Wheel Bolt Pattern (in.) | 5x4.5 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm |
| Wheel Backspace | 3.75" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
As soon as the Rocket Launcher Series "front runner" wheels were released, there was an overwhelming response from hot rod enthusiasts. They urged Rocket to craft a hardcore traditional hot rod wheel that could be mixed or matched for the perfect big and little combo. The Rocket Scientists accepted the challenge and set out to create and revive a classic from the '60s.The Rocket Injector Series wheels are sculpted to perfection and hold true to the golden age of Detroit automotive performance.
The Rocket Injector will be available in Fully Polished and Full "As-Cast" finishes. **As Cast Finishes may vary slightly.1-pc Cast Aluminum A356 As Cast - Rear Wheel Drive Offsets - Polished Aluminum Snap-in O-Ring Cap Included - Lug Centric - Standard Conical Seat 60 Degree Lugs sold separately - 3.00" hub clearance under center cap - Load Rating 1560 lbs per wheel - Reverse Mount. RPM is committed to producing cutting-edge alloy wheels through performance and innovation with the highest quality standards to enhance the performance and appearance. The ultimate result is that your ride will get noticed at the next cruise-in or car show. To better serve the market, RPM designers and engineers carefully chose better backspacing and offsets to fit on more specific types of muscle car, street rod, hot rod applications.
**Fitment Note** - The Injector was designed to be used on traditional hot rods and muscle cars with drum brakes. Due to the soft lip design of the Injector, disc brake fitments can be a concern. The reverse-mount nature of a soft lip wheel moves the drop center to the rear of the wheel which decreases rotational clearance. The rotational clearance of the Injector is 6.35" from hub center to the drop center of the wheel. Please be sure to double check your disc brake clearance before ordering. See our measurement guides under the customer service page for more information on how to measure brake clearance.
Available Finishes:
- CAST (As Cast) - As-cast aluminum center with a machined outer lip
- POL (Fully Polished) - Fully polished centers and rims
Available Finishes:
- CAST (As Cast) - As-cast aluminum center with a machined outer lip
- POL (Fully Polished) - Fully polished centers and rims
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | Select Finish to see |
| Brand | Rocket Racing Wheels |
| Wheel Diameter | 15 Inch |
| Width | 10" |
| Wheel Bolt Pattern (in.) | 5x4.5 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm |
| Wheel Backspace | 3.75" |
| Wheel Material Type | Aluminum |
| Wheel Offset | -44 mm |
| Wheel Backspace Range | 3.500" - 3.999" |
| Finish | Select Finish to see |
| Color | Natural |
| Beadlock Included | No |
| Material Type | Aluminum |
| Bolt Pattern | 5 on 4.5" |
| Diameter | 15" |
| GENERAL | |
| DOT-Approved | Yes |
| Sold in Quantity | Each |
| Valve Stem Included | No |
| Lug Nut Seat Style | 60 Degree Conical |
| Center Cap Included | Yes |
| Lug Nuts Included | No |
| Beadlock | No |
