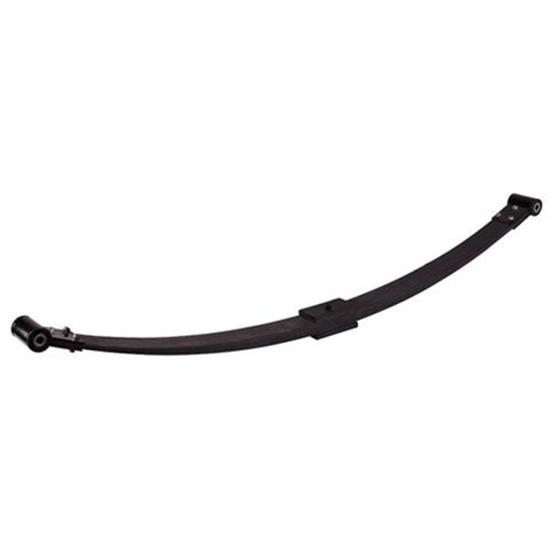

Hyperco 11340 Chevy Composite Leaf Spring, 175 Lb. Rate

Ask a Question

There is no sagging or chassis inconsistency
Front bolt measures 0.562" and rear measures 0.5"
Has a 175 lb. spring rate and length end to end is 54"

$375.00

On Backorder

This part is Backordered. We currently do not have an estimate when this item will ship.

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Rear Position, 175 lbs. Spring Rate

There is no sagging or chassis inconsistency
Front bolt measures 0.562" and rear measures 0.5"
Has a 175 lb. spring rate and length end to end is 54"
This Hyperco Composite Leaf Spring is significantly lighter than steel
Engineered to retain their design arch and provide more side bite off the corner

See more details

Key Specs

MFG. Part #	11340
Brand	Hyperco
Position	Rear
Spring Rate	175 lbs.

See more specs

Need To Know

This Product Will Ship Free

Need help?

Quick and Easy Returns

Installation Details

Front Spring Choices for Traditional Straight Axle Hot Rods

Installation Tips

U-bolts should never come in contact with the composite portion of the leaf spring. Hyperco recommends a heavy gauge rubber or plastic hose be fitted over the U-bolts to ensure that there is no metal to composite contact.
U-bolts should be tightened evenly to a torque value of 80 to 100 ft. lbs., or until the center mounting plate yields/deflects. The torque value should be checked on a regular basis to ensure adequate and consistent clamping force.
The mounting pad must extend a minimum of ¼" past the steel mounting plate.
Additional protection for the composite leaf can be obtained by wrapping all exposed surfaces with high quality duct tape.
When installing springs it is important to check the alignment. The inner sleeves must not bind inside the spring bushings on both the front and rear mounting brackets.

Have a Question?

Talk with one of our experts!

Call Us - 1.855.313.9176

Hyperco 11340 Details

This Hyperco Composite Leaf Spring is significantly lighter than steel, retain their design arch, and provide more side bite off the corner. The Hyperco CLS is truly a cost effective, high performance alternative to steel. It allows teams running leaf springs to be consistent night after night without having to constantly measure, monitor and change their spring for loss of arch/sagging. The initial cost is a value based on the incredible service life. Leave the steel on the street, hook up with the Hyperco CLS performance advantage.

On average 70% lighter than steel
No sagging or chassis inconsistency
More durable = greater value
Quicker off the corner compared to steel spring

Item Details

Front Bolt: 0.562"
Rear Bolt: 0.5"
Arch: 4.5"
Rate: 175#

Charts

Composite Spring Dimensions (GIF)

Guides & Documents

Front Spring Choices for Traditional Straight Axle Hot Rods

Hyperco 11340 Specifications

KEY SPECS
MFG. Part #	11340
Brand	Hyperco
Position	Rear
Spring Rate	175 lbs.

GENERAL
Leaf Spring Eye Type	Berlin Eye
Length Eye to Eye	54"
Suspension Height Adjustment	Stock Height
True Arch	4.5"
Number of Leafs	1
Material Type	Composite
Sold in Quantity	Each
Front Eye I.D.	0.56"
Rear Eye I.D.	0.5"
