#91032442

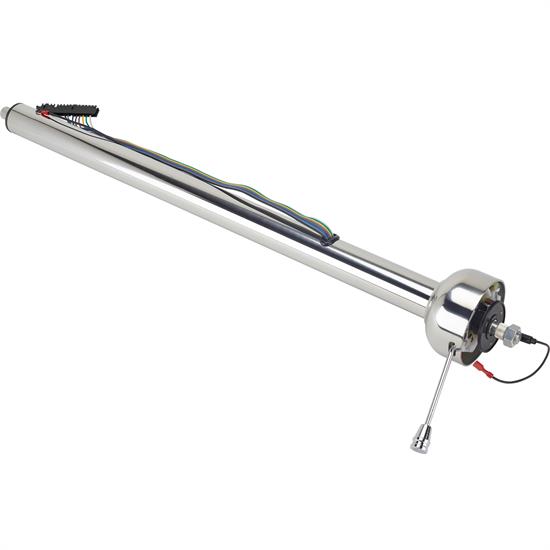

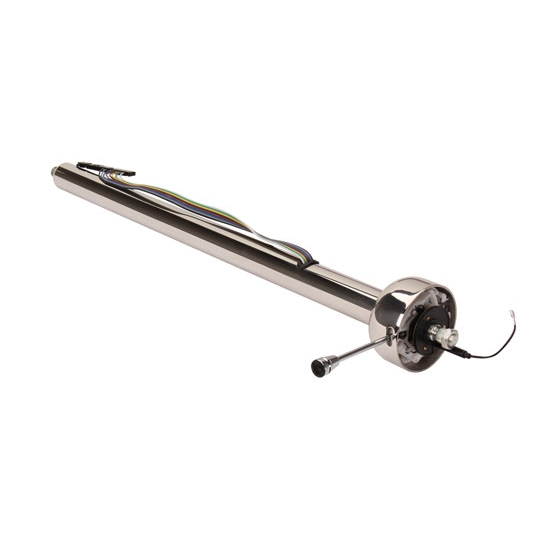

Hot Rod Nostalgia Steering Column, 30 Inch, Polished Stainless Steel
14 Reviews
|
11 Questions
- This Nostalgia steering column offers art deco styling without the need for an unsightly clamp on turn signal switch
- Integrated GM style turn signal switch with features a self-canceling mechanism and brings modern convenience to your hot rod
- GM column wiring plug works perfectly with many of the universal wiring harnesses that we offer utilizing the same column plug
See More
$351.99
each
In Stock
$489.99
Save $138.00
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Universal Mount Type, Dash Key Location
- This Nostalgia steering column offers art deco styling without the need for an unsightly clamp on turn signal switch
- Integrated GM style turn signal switch with features a self-canceling mechanism and brings modern convenience to your hot rod
- GM column wiring plug works perfectly with many of the universal wiring harnesses that we offer utilizing the same column plug
- Polished stainless steel finish is perfect for show cars or daily drivers
- Accepts 69-94 GM steering wheels or steering wheel adapters
See more details
Key Specs
| Mount Type | Universal |
| Column Type | Straight |
| Shifter Location | Floor |
| Key Location | Dash |
| Overall Length | 30" |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91032442 Details
Speedway Motors 91032442 Details
Our original Hot Rod Steering Column has been a huge success, but many rodders said they wanted one with a turn signal.
The Nostalgia Columns offer a similar vintage look but have modern GM-style turn signal, hazard light and horn functions built into the attractive bell-shaped upper housings.
Perfect for a wide variety of 1920's through 1950's era rods, as well as Cobras and other kit cars.
The columns measure 30" long and have 3/4"-36 spline lower shafts. They're available with polished or paintable stainless steel housings.
- Fits 1969-1994 GM Steering Weel
- Fits Grant Wheel with Adapter for 1969-1994 GM Steering Wheel
- 30" long
- Beautiful Art-Deco styling
- Polished Stainless steel
- Turn signal, hazard light and horn functions
Note: This column will not work with Speedway 9 bolt steering wheel adapters. This column will work with Billet Specialties adapters.
Application
- Fits 1969-1994 GM Steering Weel
- Fits Grant Wheel with Adapter for 1969-1994 GM Steering Wheel
- Overall length from end of lower splined shaft to upper end of housing around turn signal assembly is 30"
- This shaft extends past housing approximately 1-5/8"
- End of shaft for steering wheel or adapter is 11/16" x 36 spline
- Main housing is 1-3/4" O.D.
- Housing at top for turn signal is 4" in diameter and 2-5/16" tall or deep
- Wire loom exits main column is 5-1/8" below the turn signal housing
- Wire loom is approximately 23" long and has the GM style flat plug installed
- Wire loom has 8 wires for horn, turn signal and flashers
- Lower end of shaft is 3/4" x 36 spline
Comes with stainless turn signal lever and flasher button, horn wire pigtail and spring.
Specs
- Overall length from end of lower splined shaft to upper end of housing around turn signal assembly is 30"
- This shaft extends past housing approximately 1-5/8"
- End of shaft for steering wheel or adapter is 11/16" x 36 spline
- Main housing is 1-3/4" O.D.
- Housing at top for turn signal is 4" in diameter and 2-5/16" tall or deep
- Wire loom exits main column is 5-1/8" below the turn signal housing
- Wire loom is approximately 23" long and has the GM style flat plug installed
- Wire loom has 8 wires for horn, turn signal and flashers
- Lower end of shaft is 3/4" x 36 spline
Comes with stainless turn signal lever and flasher button, horn wire pigtail and spring.
Speedway Motors 91032442 Specifications
Speedway Motors 91032442 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91032442 |
| Brand | Speedway Motors |
| Mount Type | Universal |
| Column Type | Straight |
| Shifter Location | Floor |
| Key Location | Dash |
| Overall Length | 30" |
| Finish | Polished |
| Output Shaft Type | 3/4" 36-spline |
| Spline Count | 36 |
| Tube O.D. | 1.75" |
| Material Type | Stainless Steel |
| Collapsible | No |
| GENERAL | |
| Spline OD | 0.75" |
| Sold in Quantity | Each |
