Holley Sniper 550-867K EFI Quadrajet Master Kit, Shiny Finish
Holley Sniper 550-867K EFI Quadrajet Master Kit, Shiny Finish
Universal Fit, 4-Barrel Spread Bore Carburetor Flange Type, Throttle Body Injection Style
Factory Shipped
Ships FREE
Select Vehicle
Holley Sniper 550-867K EFI Quadrajet Master Kit, Shiny Finish
X
We estimate this item will ship on or before December 11th.
Part # 425550867K
$1,449.95
kit
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Important Messages:
- This item ships directly from the manufacturer. It may take an additional 4 business days for Holley Sniper to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Details
Carburetor Flange Type:
4-Barrel Spread Bore
Injection Style:
Throttle Body
User Tunable:
Yes
Self Tuning:
Yes
Injectors Included:
Yes
Injector Size:
100 lbs./hr.
Intake Manifold Included:
No
Metering Style:
Speed density
EGR:
No
CFM:
715 CFM
Throttle Body Included:
Yes
Throttle Body Material:
Aluminum
Throttle Body Finish:
Polished
Venturi Quantity:
4
Fuel Pump Included:
Yes
Fuel Rails Included:
No
Calibration Module Included:
Yes
ECM Included:
Yes
Wiring Harness Included:
Yes
Fuel Pressure Regulator Included:
Yes
Distributor Included:
No
MAP Sensor Included:
Yes
IAC Motor Included:
Yes
IAT Sensor Included:
No
TPS Sensor Included:
Yes
Use with Power Adder:
No
Venturi Diameter:
34.93mm / 51.00mm
Max Horsepower Rating:
500
MFG. Part #:
550-867K
GTIN Code:
090127058985
Sold in Quantity:
Kit
Rebates
HolleyDays INSTANT REBATE. Select Holley, MSD, Mr Gasket, Earl's Performance, Demon Carburetion, Weiand, Lakewood, Superchips, Diablo Sport, RacePak, Hooker, NOS, Flowtech, Frostbite Performance Cooling, Mallory Ignition, STS Turbo, Hays, Accel, Quick Time, Edge, Quick Fuel, Anvil, Bright Earth, Flowmaster, Hurst, B&M, APR, Dinan, XDR discounted up to 10% through December 31, 2019.
Info

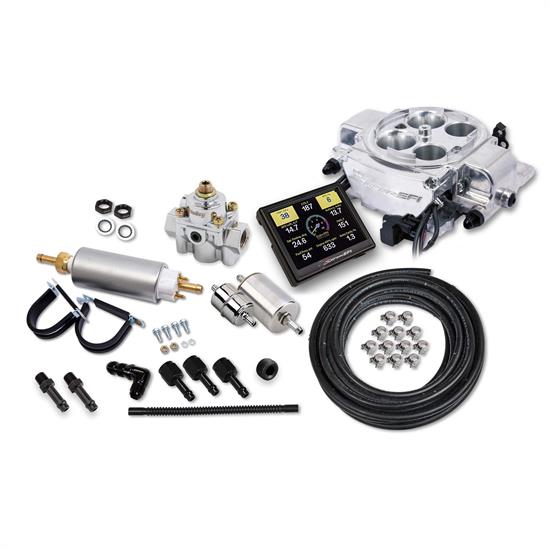

Are you tired of rebuilding the 50+ year old Rochester Quadrajet (Q-Jet) on your classic Chevrolet, GMC, Buick, Oldsmobile, or Pontiac? Introducing Sniper EFI Quadrajet. The first bolt on spread bore electronic fuel injected throttle body system that does not require any additional adapters, sealing plates, or intake manifold swaps! The Sniper EFI Rochester Quadrajet (Q-Jet) system retains the same great features as the 4150 Sniper EFI version such as; four 100lb/hr Injectors, built in timing control, a 3.5" full color touchscreen and much more! The throttle body will support up to 500 horsepower naturally aspirated. In addition to all of these great tried and true features, the Sniper EFI Rochester Quadrajet (Q-Jet) system will fit most stock air cleaners and offers multiple fuel inlet configurations that allow for a stock appearing installation!
- Designed to deliver the signature Rochester Roar at Wide Open Throttle!
- Throttle body mounted ECU – no extra boxes to mount
- Supports up to 500hp with Four 100 Lb/Hr Injectors!
- Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)
- Integrated ignition timing control
- Transmission provisions on throttle lever for TH350/TH400 and 200R4/700R4
- Fits most stock Rochester Quadrajet (Q-Jet) air cleaners
- Brake Booster adapter included, if required
- Universal Throttle and transmission kickdown bracket included
- High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
- Simple Calibration Wizard (Answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
- Complete fuel system includes – external fuel pressure regulator preset to 58.5psi, 20ft of 3/8” Vapor Guard Fuel Hose, Fuel Pump, Filters, necessary hardware and bulkhead fitting to return fuel into the tank!
- Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
- The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides realtime Fuel Map Learn!
- OEM Style Throttle Position Senser (TPS)/ and Idle Air Control (IAC) for years of dependable service.
- Included clamp-on oxygen sensor kit ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
- Requires external fuel pressure regulator, such as: 12-886 or 12-879
- Patent Pending
Notes
Fits 4-bbl Quadrajet style intake. Throttle lever has provision for TH350, TH400, 200R4, or 700R4, universal throttle and kickdown bracket.
Some parts are not legal for use in California or other states with similar laws/regulations
