Holley Sniper 550-532 Super Sniper EFI 4150 2X4, Black
Holley Sniper 550-532 Super Sniper EFI 4150 2X4, Black

Holley Sniper 550-532 Super Sniper EFI 4150 2X4, Black

Universal Fit, 4-Barrel Square Bore Carburetor Flange Type, Throttle Body Injection Style

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Holley Sniper 550-532 Super Sniper EFI 4150 2X4, Black
Holley Sniper 550-532 Super Sniper EFI 4150 2X4, Black
Holley Sniper 550-532 Super Sniper EFI 4150 2X4, Black
X
Holley Sniper 550-532 Super Sniper EFI 4150 2X4, Black
Zoomed In Image
We estimate this item will ship on or before September 2nd.
Part # 425550532
$2,228.95
kit
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Carburetor Flange Type:
4-Barrel Square Bore
Injection Style:
Throttle Body
User Tunable:
Yes
Self Tuning:
Yes
Injectors Included:
Yes
Injector Size:
100 lbs./hr.
Intake Manifold Included:
No
Metering Style:
Speed density
EGR:
No
CFM:
1600 CFM
Throttle Body Included:
Yes
Throttle Body Material:
Cast Aluminum
Throttle Body Finish:
Black
Throttle Body Flange Type:
4-Barrel Square Bore
Venturi Quantity:
8
Fuel Pump Included:
No
Fuel Rails Included:
No
Calibration Module Included:
Yes
ECM Included:
Yes
Wiring Harness Included:
Yes
Fuel Pressure Regulator Included:
No
Distributor Included:
No
MAP Sensor Included:
Yes
IAC Motor Included:
Yes
IAT Sensor Included:
No
TPS Sensor Included:
Yes
Emission Code:
3
Use with Power Adder:
Yes
Max Horsepower Rating:
1250
Color:
Black
MFG. Part #:
550-532
GTIN Code:
090127062265
Sold in Quantity:
Kit

Info

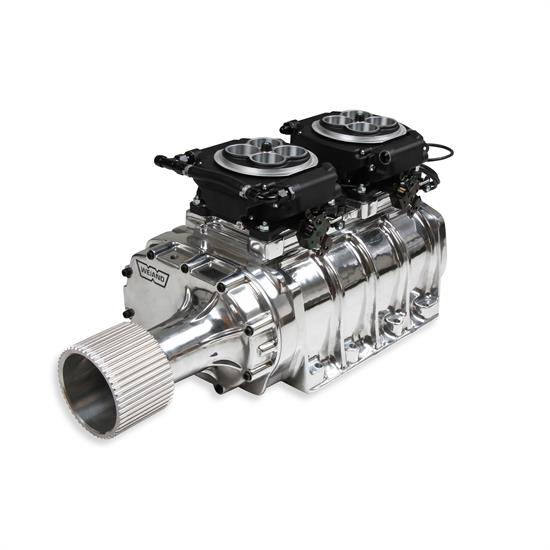

HOLLEY SUPER SNIPER EFI 4150 2X4 - BLACK

Supports up to 1250 HP with 8x 100 Lb/Hr Injectors

Introducing Sniper EFI 4150 2x4! Looking to convert your draw-through dual carbureted blower engine to EFI? Do you have a Tunnel Ram with dual quad carbs? Are you putting together a twin-turbo blow-through setup? Look no further! The Sniper EFI 4150 2x4 system from Holley features 8, 100LB/HR Fuel Injectors capable of supporting 1250 HP on both naturally aspirated and forced induction applications. The Sniper EFI 4150 2x4 was designed for use on naturally aspirated engines, while the Super Sniper EFI 4150 2x4 system was developed for naturally aspirated, draw through supercharged, and blow-through turbocharged applications. The Super Sniper EFI 4150 2x4 system is equipped with an internal 2.5bar MAP sensor that is ready to be boost referenced out of the box, supporting up to 21.5 psi of boost on boosted applications. For applications making more than 21.5 psi of boost, the Super Sniper EFI 4150 2x4 system has three additional 0-5v Sensor Inputs which can be used for an external MAP Sensor as well as oil pressure and fuel pressure. Every Sniper EFI can be used with free downloadable Sniper EFI Software, giving you unlimited control of your engine. Super Sniper EFI 2x4 comes with a USB to CAN tuning cable allowing for live engine tuning.

Features:

  • Supports up to 1250 HP with Eight 100 Lb/Hr Injectors
  • Compatible with draw through super charged applications
  • 2.5Bar MAP Sensor
  • Integrated ignition timing control
  • Built in Single stage progressive nitrous control
  • Programmable Target Air Fuel Ratios & Ignition Timing per Boost level
  • USB to CAN Communication cable included for easy laptop tuning
  • Three Programmable 0-5V Sensor Inputs for Oil/Fuel/Dome or Nitrous Pressure Sensors
  • One Sensor Ground Ground supply for 0-5v Sensors
  • Single Throttle body mounted ECU, with easy connections between the two throttle bodies no extra boxes to mount
  • Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)
  • Fits on intake manifolds with flange spacing between 6.43"-13.5" (Includes most Edelbrock Manifolds)
  • Requires an external fuel pressure regulator: P/N 12-848 up to 800 HP, 12-851 for 1000+ HP
  • High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
  • Simple Calibration Wizard (Answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
  • Self-tuning ECU means you don™t have to be a computer/tuning wiz to have EFI!
  • The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides realtime Fuel Map Learn!
  • OEM Style TPS/IAC and Fuel Pressure regulator, for years of dependable service
  • Included clamp-on oxygen sensor kit ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
  • Patent Pending
  • Charts

    Quickstart Guide (PDF)

    Instruction Manual (PDF)
