Holley 550-820 HP EFI Stealth Ram MPFI Fuel Injection System V8
Holley 550-820 HP EFI Stealth Ram MPFI Fuel Injection System V8

Holley 550-820 HP EFI Stealth Ram MPFI Fuel Injection System V8

0 Reviews | 0 Answered Questions
Out of Stock
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Holley 550-820 HP EFI Stealth Ram MPFI Fuel Injection System V8
Holley 550-820 HP EFI Stealth Ram MPFI Fuel Injection System V8
Holley 550-820 HP EFI Stealth Ram MPFI Fuel Injection System V8
X
Holley 550-820 HP EFI Stealth Ram MPFI Fuel Injection System V8
Zoomed In Image
Part # 425550820
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Info

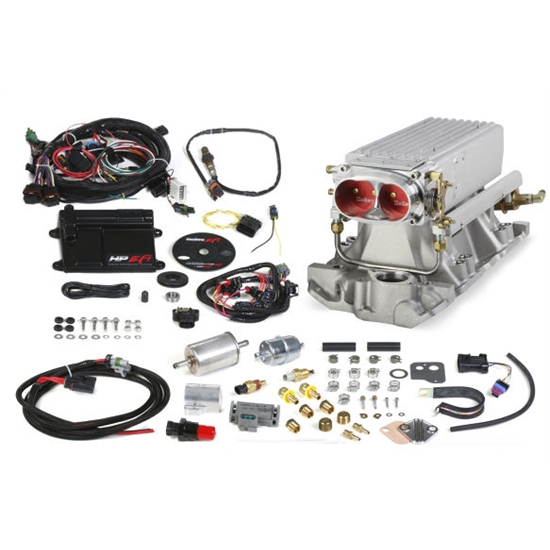

You'll get some attention when you pop the hood and show an HP Stealth Ram Multi-Port EFI system! Available for traditional or Vortec headed SB Chevys. Simply utilize a laptop (or the optional 5.7 full color touch screen LCD) along with the HP's self-tuning capabilities to make it as easy as 1, 2, 3 to get your car up and running with EFI. The tunnel ram design of the Stealth Ram builds power in the upper RPM while maintaining excellent mid-range torque as well. HP Stealth Ram systems include: intake manifold, billet throttle body, ECU, wiring harness, fuel rails and related small parts. Fuel pump and injectors should be selected separately to fit your requirements.

  • NEW V2 SOFTWARE FEATURES
  • Quick Start ignition and fueling strategy for LS x Engines
  • Data Logger. Scalable axes, Smoothing, Multiple graph view ability, Pre-defined notes fields and many more
  • Strip Chart Real-Time Data Viewer
  • Integrated Boost Control - Boost vs Time, Boost vs Gear (Time or RPM), Boost vs RPM, Boost vs Speed, Launch control. Boost launch builder, Over-boost safeties, Boost scramble
  • Traction Control - Power reduction via timing, nitrous percentage or boost (Requires Davis Technologies Holley Module)
  • Quick Start fueling for all engines
  • Option for VE based fueling strategy
  • Fuel Map and Learn Function Smoothing
  • Configurable User Password Protection
  • Fully Configurable lap top Gauge Panel

Installation Instructions (PDF)

Features

  • Optional 5.7 full-color touchscreen LCD allows easy on-the-fly tuning,data-logging or can be used as an easy to see graphical gauge panel
  • Eight sequentially driven 8:2 peak and hold injector drivers, capable of driving up to 16 low or High impedance injectors as a standard feature. Multiple staged injector strategies
  • Eight channel Distributorless Ignition (DIS)outputs capable of directly driving Smart ignition coils or Holley DIS coils. Will drive 2 wire coils with the addition of PN 554-112 high current coil driver module
  • Plug and Play control of factory GM 24x and 58x LSx engines
  • Integrated single channel wide band oxygen sensor control. Works with NTK or Bosch sensors
  • Internal data-logging standard with a huge 2GB of memory
  • 4 Stage progressive nitrous control
  • Turbo boost control
  • Integrated water/methanol injection control
  • Self-tuning fuel table strategy greatly simplifies tuning process
  • Individual cylinder fuel and spark control allows you to unlock your engine™s potential
  • Works with 4, 6, 8 cylinder engines

Important Messages:

  • This product is discontinued.
  • This item ships directly from the manufacturer. It may take an additional business days for Holley to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
  • This item 425550820 is made to order. It will be shipped from our warehouse when it is produced.
Some parts are not legal for use in California or other states with similar laws/regulations
