Product Summary

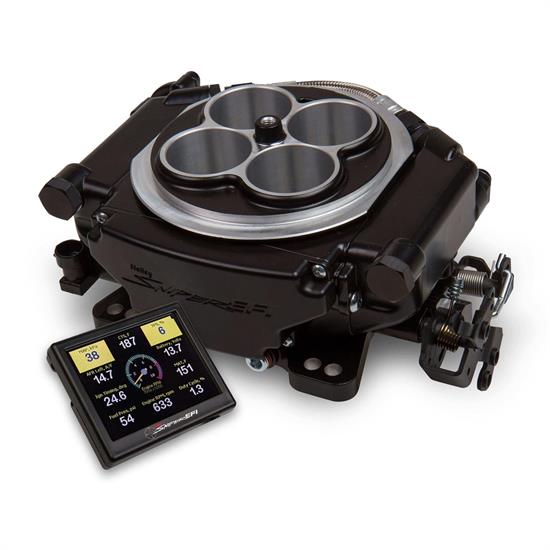

Universal Fit, Throttle Body Injection Style

  • The 800 CFM main body is able to support 700 horsepower in naturally aspirated engines
  • Has integrated ignition timing control for precise timing curves
  • Includes a high-resolution full color touchscreen for initial setup, tuning, and gauge displays
  • Comes with a OEM Style TPS/IAC and fuel pressure regulator, for years of dependable service
  • Carburetor is compatible with Draw thru or blow thru forced induction applications

Key Specs

MFG. Part #550-513
BrandHolley Sniper
CFM800 CFM

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

Looking to convert your blow thru carbureted turbo engine to EFI? Look no further than Holley for the Super Sniper 4150 EFI systems featuring 8, 100LB/HR Fuel Injectors capable of supporting up to 1250 HP on forced induction or dry nitrous applications. Is your combination not producing that much horsepower? No problem, Holley also offers a 650 HP four injector version for lower horsepower applications with a power adder or someone just needing additional sensor inputs. Did we mention the Super Sniper also has full nitrous control built-in? That's right, no need for a separate nitrous controller! Every Super Sniper EFI system also comes with a USB to CAN tuning cable, as well as free downloadable Sniper EFI Software to give you unlimited control of your engine.

  • 1250 HP version features eight 100 Lb/Hr Injectors (Forced Induction)
  • The 800 CFM Main Body will support 700 Horsepower Naturally aspirated
  • Compatible with Draw thru or blow thru forced induction applications
  • Built-in single stage progressive nitrous control
  • Programmable inputs and outputs
  • Integrated ignition timing control for precise timing curves
  • Only 4 Wiring Connections Required! (Battery +, Battery-, Switched Ignition & RPM)
  • Internal fuel pressure regulator eliminates the hassle of plumbing an external fuel pressure regulator (Preset to 58.5 PSI) for N/A or Nitrous applications
  • Self-tuning ECU means you don't have to be a computer/tuning wiz to have EFI!
  • High-Resolution Full Color Touchscreen for initial Setup, Tuning, and Gauge Displays
  • Simple Calibration Wizard (Answer a few questions about your engine, and it creates the base map, then starts tuning on its own!) - NO laptop required!
  • The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!
  • OEM Style TPS/IAC and fuel pressure regulator, for years of dependable service
    Included clamp-on oxygen sensor kit ensures a leak-free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
  • Throttle body mounted ECU – no extra boxes to mount
  • USB to CAN Communication cable included for easy laptop tuning of advanced controls
  • Dual Pattern bolt on carburetor replacement, designed to fit 4150 Flange & Spread Bore manifolds - (Spread Bore Sealing Plate Part #9006 recommended)
  • Certified to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance. Making Sniper EFI the perfect choice for carburetor to marine fuel injection conversions!
  • A Flame Arrestor is REQUIRED for marine installations, such as part number, 720-1 or 720-13
  • Compatible with Holley EFI analog gauges and electronic dashes

Charts

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Specifications

KEY SPECS
MFG. Part #550-513
BrandHolley Sniper
CFM800 CFM
GENERAL
Carburetor Flange Type4-Barrel Square Bore
Injection StyleThrottle Body
Injector Size100 lbs./hr.
ECM IncludedYes
Injectors IncludedYes
Intake Manifold IncludedNo
EGRNo
Throttle Body MaterialCast Aluminum
Venturi Quantity4
Fuel Pump IncludedNo
Fuel Rails IncludedNo
Wiring Harness IncludedYes
Fuel Pressure Regulator IncludedYes
MAP Sensor IncludedYes
IAC Motor IncludedYes
IAT Sensor IncludedNo
TPS Sensor IncludedYes
FinishPowder Coated
Venturi Diameter44.45mm
GTIN Code090127039649
