Holley 550-1621LSD Terminator X Max GM Late LT, Drive-by-Wire
Holley 550-1621LSD Terminator X Max GM Late LT, Drive-by-Wire

Holley 550-1621LSD Terminator X Max GM Late LT, Drive-by-Wire

Universal Fit, Factory GM Ignition Type, OEM Injector Connector, Drive-By-Wire Throttle Style

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Holley 550-1621LSD Terminator X Max GM Late LT, Drive-by-Wire
Holley 550-1621LSD Terminator X Max GM Late LT, Drive-by-Wire
Holley 550-1621LSD Terminator X Max GM Late LT, Drive-by-Wire
X
Holley 550-1621LSD Terminator X Max GM Late LT, Drive-by-Wire
Zoomed In Image
We estimate this item will ship on or before April 15th.
Part # 4255501621LSD
$2,345.95
kit
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Ignition Type:
Factory GM
Injector Connector:
OEM
MAP Sensor Included:
Yes
Tuner Style:
Touchscreen Handheld
Transmission Control:
No
Throttle Style:
Drive-By-Wire
Oxygen Sensor Style:
Bosch
MFG. Part #:
550-1621LSD
GTIN Code:
090127101957
Sold in Quantity:
Kit

Info

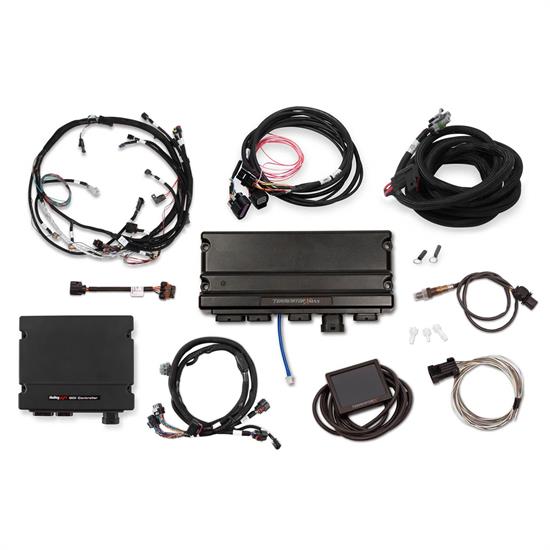

HOLLEY EFI TERMINATOR X MAX GM GEN V LT LATE DIRECT INJECTION KIT

With GM LS Drive-by-Wire Throttle Body Control

Take control of your GM Gen V LT1, L83, or L86 engine with Terminator X! Do not settle for a factory ECU with a cumbersome tuning interface when you can have complete control of your engine, self-learning fuel strategies and the proven, race-winning technology of Holley EFI at a budget-friendly price! Terminator X features real-time fuel learn, an integrated 1bar MAP sensor, and four programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Terminator X comes fully loaded with base maps for common LT engine combinations to get you out of the garage and on the road/track fast. The 3.5" touch screen LCD handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. All Gen V LT Terminator X kits will come with an external Gasoline Direct Injection Controller, which enables the end user to control and tune, factory injectors, GM Gen V LT Variable Valve Timing (VVT), and factory fuel pumps. Also included is Holley EFI's industry-leading, easy to use software suite that allows full laptop access for advanced users. Whether you are building, an LT swapped budget beater or a boosted racecar, Terminator X has the features and technology you need at a price that will not break the bank!

To identify if your engine is an early or late application, refer to your fuel pressure sensor, located behind the intake manifold. Early sensors have a 4-pin connector, whereas late sensors have a 3-pin connector. This will help you pick which kit you require for your engine.

Features:

  • Plug and play GM Gen V LT engine control including GDI and VVT support
  • Ideal for swapping late model GM Gen V LT engines into vintage vehicles
  • 3.5 handheld gets your engine running in no time with a step-by-step calibration wizard
  • GM LS and LT Drive-by Wire Throttle Body Control (Terminator X Max Only)
  • GM 4L60 and 4L80 Transmission Control (Terminator X Max Only)
  • Included engine harness plugs directly into the factory LT DI injector sub harness
  • OEM Injectors supported, with part numbers provided in the handheld wizard, or software
  • Genuine Bosch LSU 4.9 Wideband Control (Will not work with LSU 4.2 Oxygen Sensors) Genuine Bosch LSU 4.9 Wideband Control (Will not work with LSU 4.2 Oxygen Sensors)
  • On-Board Diagnostic LEDS for: ECU Power Engine Run Wideband Status TPS Calibration Crank Signal Cam Signal VVT Status Pump Control and DI Injectors. Allowing you to identify any Critical engine issues at a glance
  • Built in 1bar MAP Sensor, vacuum hose adapters included (1/8th ¼ and 3/16ths) - or for Boosted applications, you can disable the internal MAP sensor, and utilize an external LT MAP Sensor, the harness comes with the connector terminated, making the inst
  • 4 Inputs 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake (Fuel and Oil Pressure Inputs are pre-terminated)
  • 4 Outputs Ground, PWM - , for accessories such as; fans, boost control, nitrous control, IAC Kit, and more
  • Boost Control Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties
  • Nitrous Control Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR
  • Advanced Tables 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table
  • Integrated data logging to the 3.5 Handheld SD Card
  • Free EFI Tuning Software for complete control of your Terminator X power plant
  • Charts

    Instruction Sheet (PDF)

    Instruction Sheet (PDF)

    Parts Guide (PDF)

    Important Messages

    • This item ships directly from the manufacturer. It may take an additional 2 business days for Holley to ship this item.
    • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
    • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
    Some parts are not legal for use in California or other states with similar laws/regulations
