Product Summary

LS1, EFI Fuel System Type, Multi-port Injection Style

    Key Specs

    MFG. Part #300-625BK
    BrandHolley

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

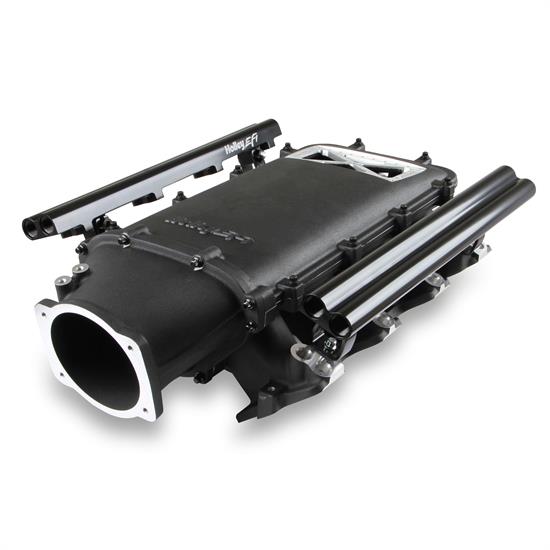

    DUAL FUEL INJECTOR LS1 LO-RAM FRONT-FEED EFI INTAKE MANIFOLD KIT

    Plenum Burst Plate Flange, Black Finish

    The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifold and rail kits will work with OE (Original Equipment) or aftermarket cylinder heads.

    The 300-625 (satin) & 300-625BK (black) front-feed, intake manifold kits provide two injectors per cylinder for hi-volume fuel demands, flexible fuel supply strategies, and dual-fuel capability. Also featured on this kit is a standard 6-1/8" x 3-1/8" burst panel flange. SFI approved burst panels, burst panel frame sets, and gaskets may be purchased from various manufacturers such as Allstar Performance or Specialty Fasteners. The front-feed, short runner, low-profile base intake manifold was conceived to package with high-boost turbocharged or supercharged induction systems with a short overall height not possible with other existing intake manifolds. This Holley Lo-Ram kit is configured for a 105mm throttle body, see Holley P/N 112-581 or similar models. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.

    Holley Lo-Ram intake manifold kits include all the sealing o-rings, plugs, and fasteners required for the installation of the kit.

    Features:

  • Designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads
  • Provides best performance for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm, depending on the application
  • Dual-injector, separate-passage, high-volume fuel rails with mounting hardware, dual-fuel capable, 8 AN o-ring portsDual-injector, separate-passage, high-volume fuel rails with mounting hardware, dual-fuel capable, 8 AN o-ring ports
  • Plenum top is machined for a standard œlarge 6-1/8" x 3-1/8" burst panel. Burst panels, burst panel frame sets, and gaskets may be purchased from various manufacturers such as Allstar Performance or Specialty Fasteners Plenum top is machined for a stand
  • Modular LS1 Lo-Ram design allows customization for user desired configurationsDesigned for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads
  • Low height & compact packaging allows installation in most applications often under stock hoods
  • Available with both as-cast satin and black power-coat finishes
  • Charts

    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    Specifications

    KEY SPECS
    MFG. Part #300-625BK
    BrandHolley
    GENERAL
    Fuel System TypeEFI
    Injection StyleMulti-port
    Intake Manifold TypeLo-Ram
    Material TypeAluminum
    FinishPowder Coated
    ColorBlack
    EGRNo
    Throttle Body Bore Size105mm
    Intake Section IncludedComplete
    Plenum MaterialAluminum
    Plenum FinishBlack
    Base FinishAluminum
    Base MaterialBlack
    Throttle Body IncludedNo
    Injectors IncludedNo
    Aftermarket Fuel Rail RequiredYes
    Fuel Rails IncludedYes
    Hardware IncludedYes
    Runners IncludedYes
    Runners RemovableNo
    Supplemental Bosses Cast-InNo
    Supplemental Bosses MachinedNo
    Emission Code3
    Sold in QuantityEach
    GTIN Code090127080184
