Holley 300-141 Hi-Ram Intake Manifold, GM LT1, 1 x 92mm
Holley 300-141 Hi-Ram Intake Manifold, GM LT1, 1 x 92mm

Holley 300-141 Hi-Ram Intake Manifold, GM LT1, 1 x 92mm

L83 Chevy LT V8, L86 Chevy LT V8, LT1 Chevy LT V8, LT4 Chevy LT V8, EFI Fuel System Type

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Holley 300-141 Hi-Ram Intake Manifold, GM LT1, 1 x 92mm
Holley 300-141 Hi-Ram Intake Manifold, GM LT1, 1 x 92mm
Zoomed In Image
We estimate this item will ship on or before June 22nd.
Part # 425300141
Save 7%
$772.99
$833.95
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Holley to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Fuel System Type:
EFI
Injection Style:
Direct injection
RPM Range:
3,500-8,000
Material Type:
Aluminum
Finish:
Natural
EGR:
No
Throttle Body Bore Size:
92mm
Intake Section Included:
Complete
Plenum Material:
Aluminum
Plenum Finish:
Natural
Throttle Body Included:
No
Injectors Included:
No
Aftermarket Fuel Rail Required:
No
Fuel Rails Included:
Yes
Runners Included:
Yes
Runners Removable:
No
Supplemental Bosses Cast-In:
Yes
Supplemental Bosses Machined:
No
Supplemental Boss Quantity:
8
MFG. Part #:
300-141
Sold in Quantity:
Kit
GTIN Code:
090127730522

Info

The new Holley EFI Hi-Ram intake provides the ultimate performance with the new GM direct injected Gen V 6.2L LT1 engine. The modular design of this manifold allows easy disassembly for custom porting, multiple tops, or custom induction systems. Each runner has a large radius where it meets the plenum, and optimized taper & cross-sectional area to perform in a wide variety of engine configurations. The optional injector bosses on the intake runners allow increased performance potential by using additional injectors along with the factory direct injection. When you look for the pinnacle of performance, price, and quality, look to Holley EFI.

GM Gen V LT1 Hi-Ram, 1 x 92mm LS Throttle Body (Longitudinal Mount) w/Port EFI Provisions & Fuel Rails

  • Modular Design w/ Removable Top

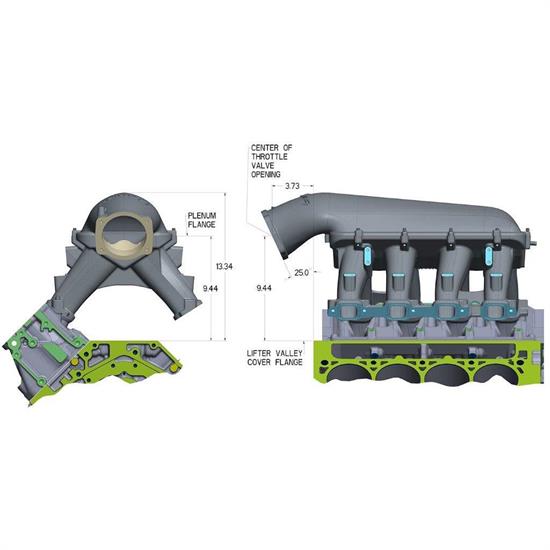

  • Overall Height: 13.34” (w/ EFI Top - 95mm or 105mm) – See Drawing
  • A-B Height: 12.10” (w/ Carb Style Top - 2 x 4150 or 2 x 4500) – See Drawing
  • Height at Plenum Flange: 9.44”
  • Port Size: 2.06” High x 1.53” Wide
  • Runner Length: Approx. 6.5”
  • Large Plenum Volume of 549 Cubic Inches (w/ 1 x 95mm or 1 x 105mm Throttle Body Top)
  • Available With or Without Injector Ports in the Runners
  • Intakes w/ Injector Ports Include Fuel Rails w/ Dual Mounting (1.48” or 2.56” O-ring to O-ring injector length)
  • Fuel Rails are Anodized, Laser Etched, and Machined for 8AN O-Ring Fittings at Each End
  • Rear of Plenum Machined for MAP & 3 Vacuum Ports
  • Head Flange has Clearance for Fuel Supply to High Pressure Pump
  • Increased Runner Wall Thickness for Custom Porting at the Plenum to Runner Entry on Each Runner
  • O-Ring Seals at Cylinder Heads & Plenum Top
  • Easy Assembly w/ Top Mounted Screws on Plenum Top (all except front 2 screws)
  • Several Top Options: 1 x 95mm, 1 x 105mm, 2 x 4150, 2 x 4500, or Blank Flange for Custom Throttle Bodies
  • 3500-8000+ RPM Power Band

Installation Instructions

Some parts are not legal for use in California or other states with similar laws/regulations
