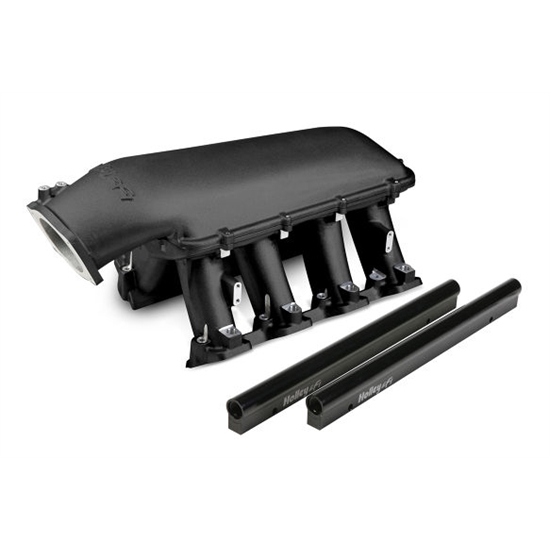

Holley 300-122BK LS Hi-Ram EFI Manifold, Black
Holley 300-122BK LS Hi-Ram EFI Manifold, Black

Holley 300-122BK LS Hi-Ram EFI Manifold, Black

Chevy LS V8, EFI Fuel System Type, Multi-port Injection Style, Hi-Ram Intake Manifold Type

0 Reviews | 1 Answered Question
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Holley 300-122BK LS Hi-Ram EFI Manifold, Black
Holley 300-122BK LS Hi-Ram EFI Manifold, Black
Zoomed In Image
We estimate this item will ship on or before October 17th.
Part # 425300122BK
$780.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Holley to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Fuel System Type:
EFI
Injection Style:
Multi-port
Intake Manifold Type:
Hi-Ram
RPM Range:
Idle-8,000
Material Type:
Aluminum
Finish:
Anodized
Color:
Black
EGR:
No
Throttle Body Bore Size:
92mm
Intake Section Included:
Complete
Plenum Material:
Aluminum
Plenum Finish:
Black Powdercoated
Throttle Body Included:
No
Injectors Included:
No
Aftermarket Fuel Rail Required:
Yes
Fuel Rails Included:
Yes
Overall Height:
12.32"
Runners Included:
Yes
Runners Removable:
No
Supplemental Bosses Cast-In:
No
Supplemental Bosses Machined:
No
MFG. Part #:
300-122BK
Sold in Quantity:
Each
GTIN Code:
090127688908

Info

The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. Cast aluminum construction. Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

  • Base Plenum Top Mounting Flange Height - 8.42 to the lifter valley cover flange on engine block.
  • Total Height with 92/102mm EFI Plenum Top - 12.32 to the lifter valley cover flange on engine block.
  • Port Size - 2.49 Height x 1.21 Wide
  • Mounting Flange Gasket Type - Standard LS3 Molded O-Ring
  • Plenum Top Gasket Type - 3/32 Round O-ring Cord
  • Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height - 8.42 (from engine block lifter valley cover flange), Longitudinal Location - 3.84 (forward from engine block front flange), Angle - 25 deg. (down from vertical)
  • Runner Length - 6.58 , As-Cast Runner Cross-Sectional Area - Tapered 4.25 in² to 2.53 in²

Installation Instructions (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
