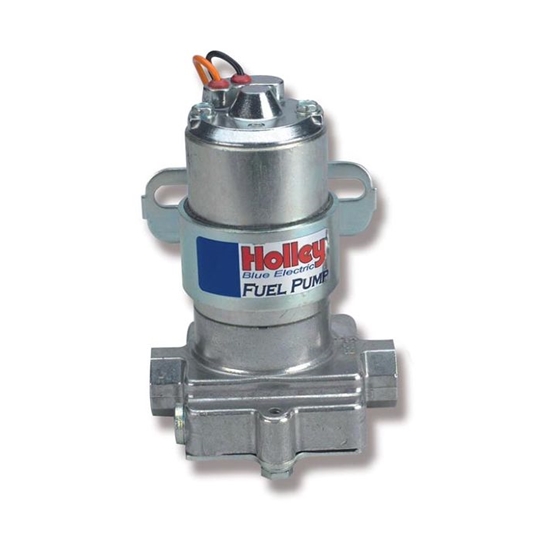

Holley 12-812-1 110 GPH Blue Electric Pump without Regulator
- Features a tumble polished billet look
- Flows 88 GPH at 9 psi and 110 GPH free flow
- Motor draws only 3 amps current
$240.95
/each
On Backorder
This part is Backordered. We currently do not have an estimate when this item will ship.
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, External Electric Fuel Pump Type
- Features a tumble polished billet look
- Flows 88 GPH at 9 psi and 110 GPH free flow
- Motor draws only 3 amps current
- Lower housing casting designed for enhanced fuel flow and quiet operation
- Has externally accessible pressure relief valve
Key Specs
| MFG. Part # | 12-812-1 |
| Electric Fuel Pump Type | External |
| Free Flow Rate | 110 GPH / 416 LPH |
| Maximum Pressure | 14 psi |
| Voltage | 12 volts |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyHolley 12-812-1 Details
Holley 12-812-1 Details
The world famous Red, Blue and Black fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package.
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow and quiet operation
- Motor draws only 3 amps current
- 7 1/2 amp fuse recommended
- Improved design for street/strip applications
- Distinctive œBlue logo
- Flows 110 GPH (free flow)
- Flows 88 GPH at 9 psi
- Maximum pressure is 14 psi
- Provides constant fuel flow with no pulsation
- Has externally accessible pressure relief valve (max 14 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 3 lbs
- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Not compatible with alcohol or methanol fuels
- Use of safety shut-off switch, P/N 12-810, strongly recommended
- Not designed or recommended for use with fuel injection systems
- Fuel pressure regulator not included
Charts
Guides & Documents
Holley 12-812-1 Specifications
Holley 12-812-1 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 12-812-1 |
| Brand | Holley |
| Electric Fuel Pump Type | External |
| Free Flow Rate | 110 GPH / 416 LPH |
| Maximum Pressure | 14 psi |
| Voltage | 12 volts |
| GENERAL | |
| Inline | No |
| Fuel System Type | Carbureted |
| Fuel Type | Gasoline |
| Electric Fuel Pump Inlet Fitting(s) | 3/8" NPT Female |
| Electric Fuel Pump Outlet Fitting(s) | 3/8" NPT Female |
| Material Type | Aluminum |
| Color | Silver |
| Fuel Pressure Regulator Included | No |
| Sending Unit Included | No |
| Application | Universal |
| Bracket Color | Silver |
| Gasket(s) Included | No |
| Wiring Harness Included | No |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | No |
| Sold in Quantity | Kit |
| GTIN Code | 090127619087 |
