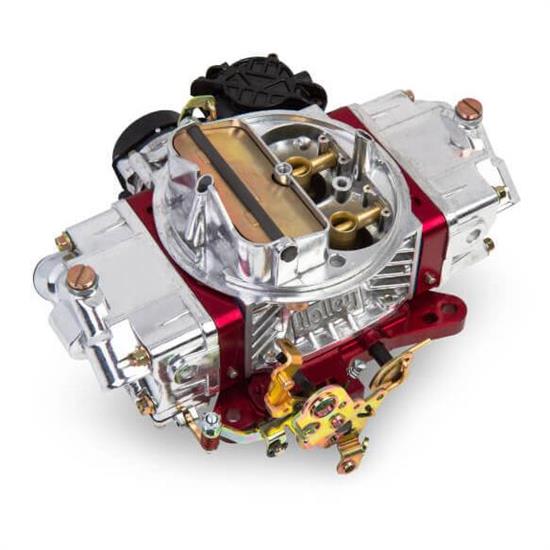

Holley 0-86570RD 570 CFM Ultra Street Avenger Carburetor

Holley 0-86570RD 570 CFM Ultra Street Avenger Carburetor
Universal Fit, 4-Barrel Carburetor Barrels, Gasoline Fuel Type, Electric Choke Type, Shiny
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Details
Carburetor Barrels:
4-Barrel
Fuel Type:
Gasoline
Choke Type:
Electric
CFM Range:
500-599 CFM
CFM:
570 CFM
Carburetor Flange Type:
4-Barrel Square Bore
Finish:
Shiny
Material Type:
Aluminum
Color:
Red
Secondary Type:
Vacuum
Fuel Inlet Type:
Dual
New or Remanufactured:
New
Booster:
straight
Supercharged Application:
No
Throttle Bore:
1.688 in.
Vacuum Ports:
1 timed (spark) port, 1 full, 1 PCV port.
Primary Main Jet:
64
Primary Power Valve:
6.5
Primary Pump Nozzle Size:
31
Secondary Jet Size:
72
MFG. Part #:
0-86570RD
GTIN Code:
090127048061
Sold in Quantity:
Each
Info
ULTRA light - Aluminum construction for 43% weight savingsULTRA strong -Billet metering blocks & base platesULTRA cool -Red anodized billet aluminum metering blocks and base plateULTRA easy - Built in sight window for simple float adjustmentsULTRA fast - High-performance fuel curvesThe Ultra Street Avenger carburetors feature all aluminum construction and are equipped with metering blocks and a base plate made from 6061-T6 billet aluminum. They weigh in at approximately 5 lbs less than a comparable zinc carburetor. The new Ultra Street Avenger carburetors have the same great features as their aluminum counterparts such as a tumble polished aluminum finish; quick change vacuum secondaries for easy tuning to optimize performance or fuel economy; four vacuum ports for all necessary vacuum accessories; factory preset electric choke for easy startups; built-in fuel filters; and an included fuel line kit so there are no unnecessary trips back to the parts store. Ultra Street Avengers feature the same optimized street calibration as the zinc versions so you know they will run great on your vehicle. In addition, the Ultra Street Avenger now comes with anodized metering blocks and a base plate made from 6061-T6 billet aluminum and a built in, clear fuel level sight glass for easy, no mess fuel level adjustments. Don't trust your performance to just anyone, Holley is the only Modular carburetor company that has been in business for over 100 years and has powered every NASCAR champion since the 60's.
- Shiny with red anodized billet aluminum metering blocks/base plate for good looks and true gasket sealing
- Ultra Street Avengers feature an optimized street calibration that works-out-of-the-box
- Factory preset electric choke for easy startups
- Vacuum secondaries allow use on a wide variety of vehicles. Quick Change vacuum housing cap allows you to tune for performance or fuel economy (springs included)
- 4 corner idle allows you to precisely control your idle system
- Built in, clear fuel level sight glass for easy, no mess fuel level adjustments
- Aluminum construction for a 43% weight savings
- Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.
- Fuel line kit included so there are no unnecessary trips back to the parts store
- Limited lifetime warranty - Guaranteed to be free from defects in material and workmanship for the life of the product!
- 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
Important Messages
- This item ships directly from the manufacturer. It may take an additional 2 business days for Holley to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
