Product Summary

Universal Fit, 2-Barrel Carburetor Barrels, 500 CFM CFM

  • Specifically designed for big trucks and high performance situations
  • Aluminum/zinc construction keeps the weight down while fighting corrosion
  • It features a manual choke and a center hung float bowl
  • Venturi casting rings are reamed to legal dimensions, for more consistent air flow
  • They comply and are fully consistent with the technical gauging now in use

Key Specs

Carburetor Barrels2-Barrel
Fuel TypeGasoline
CFM500 CFM
Carburetor Flange Type2-Barrel 4-Bolt
FinishGold Dichromate

Need To Know

This Product Will Ship Free

Quick and Easy Returns

Details

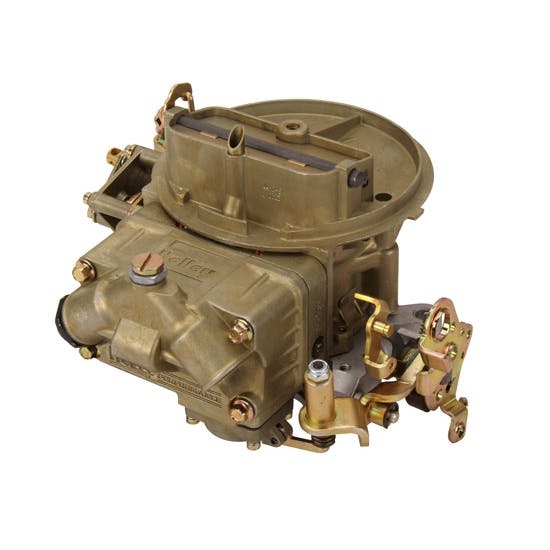

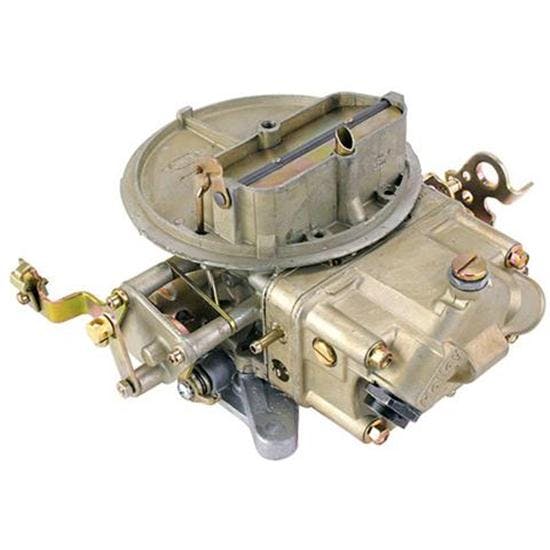

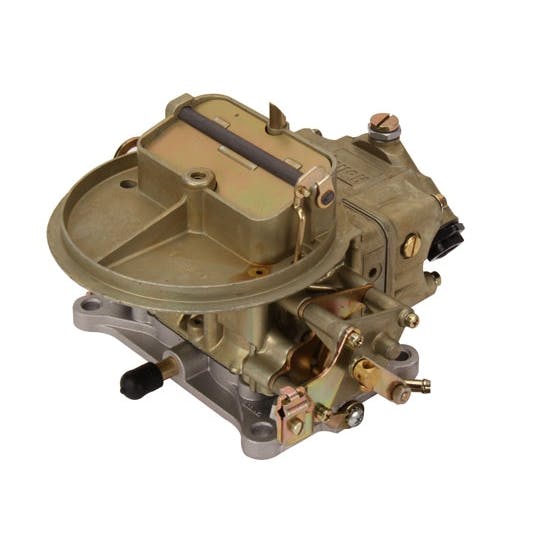

The Holley Model 2300 gas two barrel carburetor is great for improving or updating many stock Chrysler and Ford car and truck non-emission applications. The 500 CFM 2 barrel carb works great for big trucks and high performance situations. It features a manual choke, center hung float bowl, universal throttle lever, Ford A/T kickdown, and 50cc accelerator pump.

Application

  • Intended for short circle track racing. Sizes of throttle bore, venturi, booster diameter, throttle plate thickness and throttle shaft diameter have not changed. They comply and are fully consistent with the technical gauging now in use. Venturi casting rings are reamed to legal dimensions, for more consistent air flow.

Charts

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Specifications

KEY SPECS
MFG. Part #0-4412C
BrandHolley
Carburetor Barrels2-Barrel
Fuel TypeGasoline
CFM500 CFM
Carburetor Flange Type2-Barrel 4-Bolt
FinishGold Dichromate
GENERAL
Choke TypeManual
CFM Range500-599 CFM
Material TypeAluminum
Secondary TypeNone
Fuel Inlet TypeSingle
Gasket(s) IncludedNo
New or RemanufacturedNew
BoosterDown Leg
Supercharged ApplicationNo
Bolt Hole Pattern5.160" x 3.460"
GTIN Code090127472149
Sold in QuantityEach
