Heidts Mustang II Crossmember for 64-70 Ford Mustang Frame, Weld-On

#41334437

Heidts Mustang II Crossmember for 64-70 Ford Mustang Frame, Weld-On

Name: Heidts Mustang II Crossmember for 64-70 Ford Mustang Frame, Weld-On
Brand: Heidts
SKU: 41334437
Price: 639 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

3 Questions

$639.00

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, Mustang II Crossmember Type, Steel

See more details

Key Specs

MFG. Part #	PX-320-E
Position	Front
Crossmember Type	Mustang II
Crossmember Style	Boxed
Attachment Style	Weld-on

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Crossmembers Installation Instructions (41334437)

Installation Tips

Overall Benefit: In a word, "handling". While installing a Mustang II can look like a lot of work, in reality, the improved handling and ride quality are worth the effort. Combine that with improved stopping ability due to numerous brake options and it becomes more a question of “Why wouldn’t you?”. The independent suspension will give you a much better ride because there is double the suspension travel. A stock axle will give you maybe 2-1/2” of total travel vs. a Mustang II which will give you about 4-1/2”- 5” of travel. There are multiple spring rates available to accommodate varied applications and the rack and pinion steering is much more responsive than a standard steering box.

Drop: This varies and is dependent on application and options. Most kits drop the vehicle by 3-4”. Drop spindles and running lower profile tires than stock also adds to the amount of drop that can be achieved.

Track Width: You may want to mount custom wheels to your Mustang II conversion and determining proper track width for your application is essential for figuring correct backspacing and overall ride stance. Standard wheel base is 56-1/2” with a 60” version available for trucks. The various options for brake kits will vary this somewhat and some kits can add roughly 2” to the overall track width. Narrowed arms are available to move the wheel in by 5/8” on each side. See the link below for various track widths with different options.

Mustang II Track Width Options (PDF)

Assembly Notes: Either manual or power steering can be used with these crossmembers. The passenger side mount has a slot that will take the later model power rack. With all Mustang II aftermarket crossmembers, spacers and longer bolts must be used with the later (Fox-body) power rack.

Rack mounts are incorporated into the crossmember design and rotate the rack back 20° to get the input shaft lower. Stock, manual, power racks, or later model Mustang II or T-Bird power racks can be used. The rack is positioned so the bellows will clear most aftermarket full A-Arms. When using crossmembers with our "power" steering rack, you may also need (2) rack spacers (9101023). (These spacers are included with our Mustang II suspension kits.)

This crossmember is to be used with tubular control arms, as there are fit issues with the stamped steel stock style control arms. Lower control arm pivot tubes and gussets are not included.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Heidts PX-320-E Details

These are Heidts Mustang II crossmembers for 1964-1970 Mustang passenger cars. Heidts Mustang IFS kits for Fords are natural conversions for the Ford frames. They retain all the factory dimensions and locations, so you get all the benefit of Ford engineering in your front end. Theres absolutely no reason to widen or otherwise modify the Ford design or use long tie rod ends! Included in these kits are Heidts own illustrated installation booklets.

1964-1970 Mustang passenger car frames
Economy (unground welds)
Constructed of 7-gauge steel
Mustang II cross members using stock spindles will drop the stock ride height 3-4”
Built-in Anti-Dive is all fitted to your frame…No Grinding Required! Nothing to measure or trim…It’s All Done!
One-Piece Shock Cups are T.I.G. welded in place and have anti-dive built in. First class, for your car.
Vertical Inner Uprights. This is the strongest design available, with twice the weld area. This will keep your frame from twisting!
Main crossmember made from only 2 formed pieces for maximum strength and accurate fit.
Crossmember and Spring Towers precut and pre-welded to fit your frame…Nothing to Measure!
Lower control arm pivot tubes and gussets are NOT included
Frame Front Boxing Plates are included for added strength/support
Inner fender panels are available to cover cut-out hole during installation
Works with both manual or power rack and pinions
Works with tubular control arms only

For a LARGER selection at a LOWER price, see Speedways collection of mustang II crossmembers.

Choose from the crossmembers below and add to an IFS kit to get a "hub to hub" front suspension.

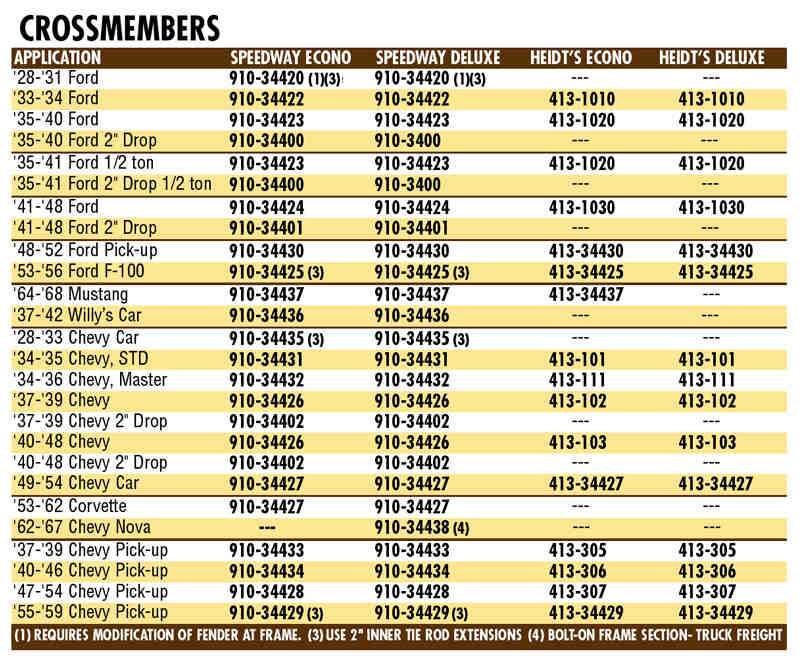

Mustang II Crossmember Application Chart (Link)

Note: Additional items may be needed to complete installation. You may want to include our Mustang II ride height adjusters (91034444) for installation with these crossmembers to fine tune your final ride height up to 2". Inner fender panels are available for these crossmembers, (91034450) for 1964-66 and (91034451) for 1967-70 Mustangs. These crossmembers come with frame boxing plates included for added strength/support.

Note: Must use rear sump oil pan. Raised engine placement may require a high-rise hood. Cleveland engines will not work. 2" drop spindles are recommended to retain stock ride height.

Note: This crossmember is to be used with tubular control arms, as there are fit issues with the stamped steel stock style control arms.

Note: When using this crossmember with our "power" steering rack, you may also need (2) rack spacers (9101023). (These spacers are included with our Mustang II suspension kits.)

Item Details

1964-70 Mustang, 1967-68 Cougar
(2" dropped spindles required)
Complete installation may require you to purchase corresponding a-arms, shocks, springs, brake kit, spindles, and steering rack and pinion

Application

This crossmember is to be used with tubular control arms, as there are fit issues with the stamped steel stock style control arms. Further, dropped spindles must be used (see 910-34304) to maintain stock ride height.

If you are using a power steering rack, you will need to purchase two rack spacers #413-1023.

We carry repair panels to fill the holes left when the original suspension is removed:

910-34450 for 1964-1966 Mustang
910-34451 for 1967-1970 Mustang

Charts

413-34437 Crossmember Installation Instructions (PDF)

Guides & Documents

Crossmembers Installation Instructions (41334437)

Crossmembers Technical Information (41334437)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Heidts PX-320-E Specifications

KEY SPECS
MFG. Part #	PX-320-E
Brand	Heidts
Position	Front
Crossmember Type	Mustang II
Crossmember Style	Boxed
Attachment Style	Weld-on

GENERAL
Steering System Compatibility	Manual/Power Rack and Pinion
Control Arm Compatibility	Tubular
Spindle Compatibility (Stock Height)	2" Dropped
Tie Rod Extensions Required	No
Material Type	Steel
Material Gauge	7-gauge
Finish	Natural
Ride Height (w/Stock Spindles)	3" to 4" Lowered
Material Thickness	0.18"
Sold in Quantity	Kit
Notes	Includes crossmember, boxing plates, and shock cups.
