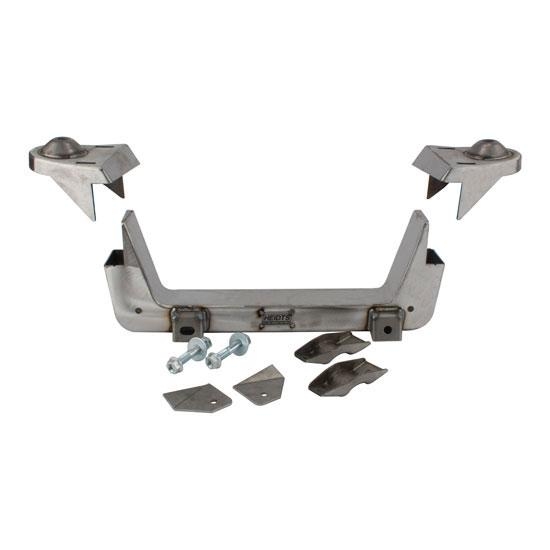

Heidts 1933-1934 Ford Mustang II Crossmember, Economy Unground Welds
The Deluxe Crossmembers are Discontinued.
Heidts Mustang IFS kits for 1933-1934 Fords are natural conversions for the Ford frames. They retain all the factory dimensions and locations, so you get all the benefit of Ford engineering in your front end. Theres absolutely no reason to widen or otherwise modify the Ford design or use long tie rod ends!
Included in these kits are all the special, hard-to-make brackets and mounts you will need to complete the installation, plus Heidts own illustrated installation booklet.
- 1933-1934 Ford passenger car frames
- Heidts crossmembers offer you the choice of Deluxe (welds ground) or Economy (unground welds)
- Constructed of 7-gauge steel
- Mustang II cross members using stock spindles will drop the stock ride height 3-4”
- Built-in Anti-Dive is all fitted to your frame…No Grinding Required! Nothing to measure or trim…It’s All Done!
- One-Piece Shock Cups are T.I.G. welded in place and have anti-dive built in. First class, for your car.
- Vertical Inner Uprights. This is the strongest design available, with twice the weld area. This will keep your frame from twisting!
- Main crossmember made from only 2 formed pieces for maximum strength and accurate fit.
- Crossmember and Spring Towers precut and pre-welded to fit your frame…Nothing to Measure!
- Lower control arm pivot tubes and gussets are NOT included
- Frame Front Boxing Plates are available for added strength/support (91054422)
- Upper fender adapter brackets and/or radiator tabs included
- Works with manual rack and pinion ONLY
For a LARGER selection at a LOWER price, see Speedways collection of mustang II crossmembers.
Choose from the crossmembers below and add to an IFS kit to get a "hub to hub" front suspension.
Note: Upper fender adapter brackets and radiator tabs included. Additional items may be needed to complete installation. You may want to include our Mustang II ride height adjusters (91034444) for installation with these crossmembers to fine tune your final ride height up to 2". Frame boxing plates (91054422) are also available for these crossmembers for added strength and support.
Note: This crossmember application is designed to only be used with a manual steering rack/pinion. A power steering rack will interfere with the radiator and/or radiator support brackets.
Deluxe is garage sale clearance!
Complete installation may require you to purchase corresponding a-arms, shocks, springs, brake kit, spindles, and steering rack and pinion
ApplicationThese crossmembers fit:
- 1933-34 Ford frames
Note: Mustang conversion kits are not available for the Model A or 1932 Ford. These cars, because of their direct mounting low fenders, require modifying the Ford IFS design by relocating the upper control arm inner pivot to clear the fender, causing a very noticeable amount of bumpsteer!
Overall Benefit: In a word, "handling". While installing a Mustang II can look like a lot of work, in reality, the improved handling and ride quality are worth the effort. Combine that with improved stopping ability due to numerous brake options and it becomes more a question of “Why wouldn’t you?”. The independent suspension will give you a much better ride because there is double the suspension travel. A stock axle will give you maybe 2-1/2” of total travel vs. a Mustang II which will give you about 4-1/2”- 5” of travel. There are multiple spring rates available to accommodate varied applications and the rack and pinion steering is much more responsive than a standard steering box.
Drop: This varies and is dependent on application and options. Most kits drop the vehicle by 3-4”. Drop spindles and running lower profile tires than stock also adds to the amount of drop that can be achieved.
Track Width: You may want to mount custom wheels to your Mustang II conversion and determining proper track width for your application is essential for figuring correct backspacing and overall ride stance. Standard wheel base is 56-1/2” with a 60” version available for trucks. The various options for brake kits will vary this somewhat and some kits can add roughly 2” to the overall track width. Narrowed arms are available to move the wheel in by 5/8” on each side. See the link below for various track widths with different options.
Economy or Deluxe?:
Deluxe style crossmembers come with all welds ground for a smooth finish while Economy style crossmembers feature unground welds.
Assembly Notes: This crossmember application is designed to only be used with a manual steering rack/pinion. A power steering rack will interfere with the radiator and/or radiator support brackets.
The holes for the lower control arms are 1/2? (stock). If you will use tubular lower A-Arms instead of the stock lower arms, the lower pivot holes will have to be drilled out to 5/8?. Lower control arm pivot tubes and gussets are not included.
These crossmembers will work with stock control arms. If used with stock arms, these will require strut rods and strut mounts for installation. Speedway crossmembers DO NOT include strut rod mounting brackets. We recommend either our offset or no-strut control arms or the tubular strut rod (91034322).
Note: Applications where the vehicle has fenders that mount directly on top of the frame, the fenders will require extensive modification to allow clearance for the upper cross member section.
- This product is discontinued.
