Heidts KX-102-E Universal Mustang II Crossmember 60 Track Width

#413202-ECONO

Heidts KX-102-E Universal Mustang II Crossmember 60 Track Width

Name: Heidts KX-102-E Universal Mustang II Crossmember 60 Track Width
Brand: Heidts
SKU: 413202-ECONO
Price: 639 USD
Availability: InStock
Rating: 4.9 (9 reviews)

9 Reviews

14 Questions

Specifically designed for the Mustang II chassis
Engineered to work with both manual or power rack and pinions
Fully constructed of 7-gauge steel and has a track width of 60"(hub to hub)

Outside Frame Width:

27-1/2 Inch to 33-1/2 Inch

24 Inch to 30 Inch

Style:

Economy

$639.00

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

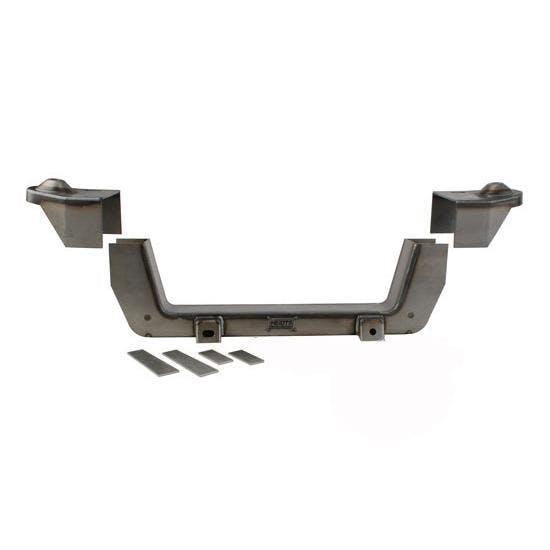

Universal Fit, Front Position, Boxed Crossmember Style

Specifically designed for the Mustang II chassis
Engineered to work with both manual or power rack and pinions
Fully constructed of 7-gauge steel and has a track width of 60"(hub to hub)
The one-piece shock cups are T.I.G. welded in place and have anti-dive built in
Main crossmember made from only 2 formed pieces for maximum strength and accurate fit

See more details

Key Specs

MFG. Part #	KX-102-E
Position	Front
Crossmember Type	Mustang II
Crossmember Style	Boxed
Attachment Style	Weld-on

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Crossmembers Installation Instructions (413202)

Installation Tips

Overall Benefit: In a word, "handling ". While installing a Mustang II can look like a lot of work, in reality, the improved handling and ride quality are worth the effort. Combine that with improved stopping ability due to numerous brake options and it becomes more a question of "Why wouldn't you?". The independent suspension will give you a much better ride because there is double the suspension travel. A stock axle will give you maybe 2-1/2" of total travel vs. a Mustang II which will give you about 4-1/2"- 5" of travel. There are multiple spring rates available to accommodate varied applications and the rack and pinion steering is much more responsive than a standard steering box.

Drop: This varies and is dependent on application and options. Most kits drop the vehicle by 3-4". Drop spindles and running lower profile tires than stock also adds to the amount of drop that can be achieved.

Track Width: You may want to mount custom wheels to your Mustang II conversion and determining proper track width for your application is essential for figuring correct backspacing and overall ride stance. Standard wheel base is 56-1/2" with a 60" version available for trucks. The various options for brake kits will vary this somewhat and some kits can add roughly 2" to the overall track width. Narrowed arms are available to move the wheel in by 5/8" on each side. See the link below for various track widths with different options.

Mustang II Track Width Options (PDF)

Note: Mustang conversion kits are not available for the Model A or 1932 Ford. These cars, because of their direct mounting low fenders, require modifying the Ford IFS design by relocating the upper control arm inner pivot to clear the fender, causing a very noticeable amount of bumpsteer!

Assembly Note: Either manual or power steering can be used with these crossmembers. The passenger side mount has a slot that will take the later model power rack. With all Mustang II aftermarket crossmembers, spacers and longer bolts must be used with the later (Fox-body) power rack.

Rack mounts are incorporated into the crossmember design and rotate the rack back 20° to get the input shaft lower. Stock, manual, power racks, or later model Mustang II or T-Bird power racks can be used. The rack is positioned so the bellows will clear most aftermarket full A-Arms. When using crossmembers with our "power " steering rack, you may also need (2) rack spacers (9101023). (These spacers are included with our Mustang II suspension kits.)

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Heidts KX-102-E Details

Using this Universal Multi-Fit Mustang II Crossmember Kit you can now adapt the very popular Mustang II suspension with HEIDTS correct geometry into almost any application. The crossmember and spring towers are made oversized to allow trimming and fitting to your particular frame size. Templates and instructions, designed for a home builder to install, walk you through the entire installation to insure that you get correct anti-dive and geometry.

Designed to fit frames with outside to outside frame widths of 27-1/2" to 33-1/2"

WARNING: This crossmember design is now updated and is designed to only accept and work with strutless type tubular lower control arms. It will not accept nor work with the o/e type stamped lower control arms.

Finished track width will be 60"(hub to hub)
Constructed of 7-gauge steel
Mustang II cross members using stock spindles will drop the stock ride height 3-4”
One-Piece Shock Cups are T.I.G. welded in place and have anti-dive built in. First class, for your car.
Vertical Inner Uprights. This is the strongest design available, with twice the weld area. This will keep your frame from twisting!
Main crossmember made from only 2 formed pieces for maximum strength and accurate fit.
Works with both manual or power rack and pinions
Requires use of 2" inner tie rod extensions
Features a raw welded finish

WARNING: This is a universal crossmember to be used with Mustang II style components. It is NOT designed for any specific car or truck. You will need fabrication and welding skils to complete the installation.

Additional items may be needed to complete installation. You may want to include our Mustang II ride height adjusters (91034444) for installation with these crossmembers to fine tune your final ride height up to 2". You must use 2" inner tie rod extensions for proper steering geometry with these crossmembers.
This crossmember requires the use of rack extensions (91034345) for the manual or the power rack. Further, rack spacers are also required when a power rack is used. Please consider item #910-34346 or 910-1023.
Applications where the vehicle has fenders that mount directly on top of the frame, the fenders will require extensive modification to allow clearance for the upper cross member section.
Complete installation may require you to purchase corresponding A-arms, shocks, springs, brake kit, spindles, and steering rack and pinion.

Application

Universal Applications: 60? Track Width:

1953-79 Ford F100 Pickups
1955-59 (second series) Chevy Pickups

Note: Most vehicles will use the standard 56” track width. Ford F1 pickups should use the 58” kit. Ford F100 (’53-’56) and 2nd series ’54-’59 Chev pickups should use the 60” kit.

Charts

413-202 Crossmember Installation Instructions (PDF)

Guides & Documents

Crossmembers Installation Instructions (413202)

CA Prop 65

Heidts KX-102-E Specifications

KEY SPECS
MFG. Part #	KX-102-E
Brand	Heidts
Position	Front
Crossmember Type	Mustang II
Crossmember Style	Boxed
Attachment Style	Weld-on

GENERAL
Steering System Compatibility	Manual/Power Rack and Pinion
Control Arm Compatibility	Tubular or Stock
Tie Rod Extensions Required	Yes
Material Type	Steel
Material Gauge	7-gauge
Finish	Natural
Ride Height (w/Stock Spindles)	3" to 4" Lowered
Material Thickness	0.18"
Sold in Quantity	Kit
Notes	Includes crossmember and shock cups. Fits 27.50" to 33.50" outside frame widths only!
GTIN Code	887753175779
