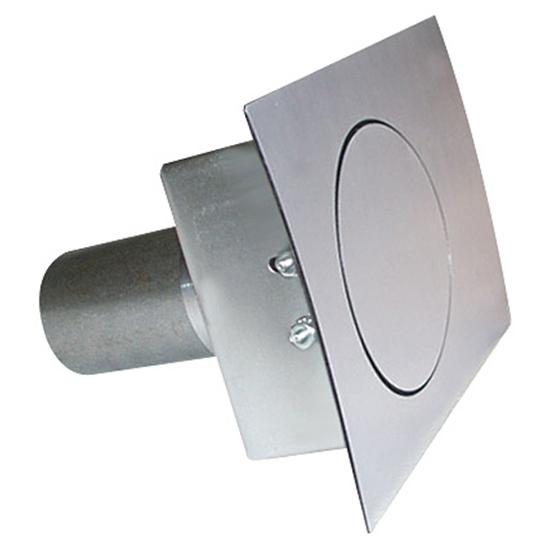

Hagan Street Rods 90OVQ 90 Curve Series Fuel Door, Oval

Now you can make that old gas tank filler neck and cap go away with this easy flush mount gas door kit. Just select the style that would best fit to the surface and choose the design of the gas door with the hinge mount on the left or right side. This has a fuel spout that is 2" OD to accept a 2" ID fuel hose of your choice. Fuel hose not included. Can be mounted in steel or fiberglass.

910-90103
Includes: housing, door, hinge, latch, gas cap, spout and install instructions. It can be installed in steel or fiberglass panels. Door is 3-1/2" x 4-3/4" oval. It's most common use is in the panels with a slight curvature like the quarter panels of most cars and trucks from the 1920's through cars of today. This part has a radius of 32 inches. The top is made of 18 gage mild steel. The spout is 2" o.d. and 3-3/4" long. Hinge is spring loaded to hold the door open and closed. Latch is spring loaded and magnetic. Part comes with spout, cap and pictured instructions.

Fuel Door Curvature Template (PDF)
