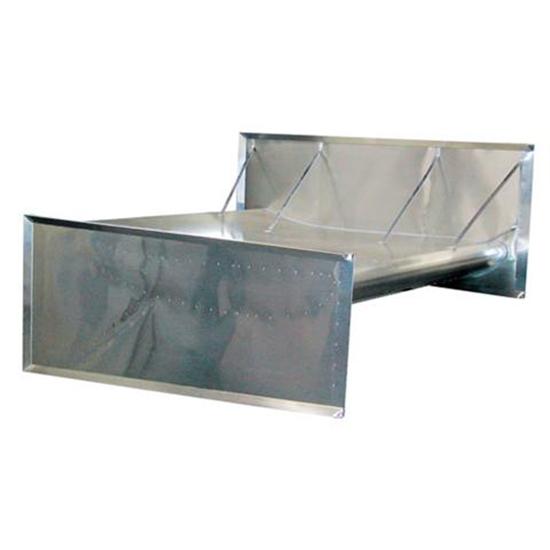

HRP VFT0512-K 5x5 Dish Top Wing Kit w/ Countersunk Rivets
HRP VFT0512-K 5x5 Dish Top Wing Kit w/ Countersunk Rivets
Sprint Car, 72.00" Overall Length, 30.00" Overall Width, 26.00" Overall Height, Aluminum
On Backorder
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
HRP VFT0512-K 5x5 Dish Top Wing Kit w/ Countersunk Rivets
X
HRP estimates this item will ship on or before April 30th.
Part # 9405549
$609.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- They are CNC punched and formed from aluminum
- Features countersunk rivets for increased airflow and added strength
- It is approved for use with WoO, IRA, Knoxville, All Stars, ASCS and others
- Kit includes internal runner, chromoly front post, rivets and complete instructions
- Each wing is designed to be identical and all internal components are formed and lightened
Details
MFG. Part #:
VFT0512-K
Overall Length:
72.00"
Overall Width:
30.00"
Overall Height:
26.00"
Overall Thickness:
.016"
Overall Diameter:
1.00"
Material Type:
Aluminum
Finish:
Natural
Sold in Quantity:
Each
Info
Hepfner Racing Products is a leader in the design and manufacturing of sprint car wings. CNC punched and formed, each wing is identical and all internal components are formed and lightened. Top wing kit features countersunk rivets for increased airflow and added strength. Complete top wing kit includes internal runner, chromoly front post, rivets and complete instructions. All holes are drilled. Assembly takes anywhere from 1-2 hours.
- Top wing for winged sprint cars
- Flush rivets for better airflow
- Pre-drilled holes for easy assembly
- Approved for use with WoO, IRA, Knoxville, All Stars, ASCS and others
- Complete package includes internal runners, chromoly front posts, rivets and braces
Specs
- 5' x 5' top wing
- Tall sideboard measures 72" x 30"
- Lower sideboard is 72" long and 30" tall at the rear, 26" tall in front
- Posts are 1" O.D. and 12" tall
- Easy Glide posts
- 0.016" aluminum belly
- 0.016" aluminum sideboards
- Has 2-1/2" rear dish for maximum downforce on rear tires
Charts
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
