Key Specs

MFG. Part #4-242BX-HAX
Radiator StyleSingle Pass
Radiator Flow DirectionDownflow
Material TypeAluminum
FinishNatural

Need To Know

This Product Will Ship Free

Quick and Easy Returns

Details

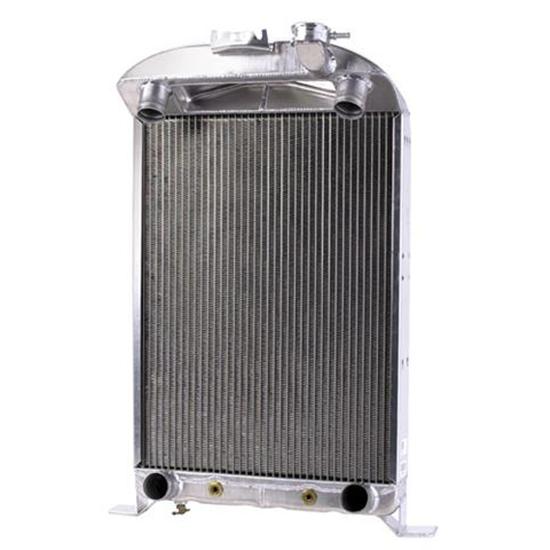

Griffin Aluminum radiators give superior cooling over a brass/copper radiator. Features 2 rows of 1" tubes furnace brazed into the core which provides 40% greater tube-to-fin contact over a copper/brass radiator.

  • Built-in HD automatic transmission oil cooler
  • Hood support brackets are included
  • Brackets on side for gille shell
  • Brackets on top for support rods
  • No "dummy" filler neck

Griffin Flathead Radiator Application Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Specs


Specifications

KEY SPECS
MFG. Part #4-242BX-HAX
BrandGriffin Radiators
Radiator StyleSingle Pass
Radiator Flow DirectionDownflow
Material TypeAluminum
FinishNatural
GENERAL
Inlet LocationBoth Sides
Outlet LocationLower driver side
Row Quantity2
Tube Size1.00"
Overall Width Range19.00" to 19.99"
Overall Width19.75"
Overall Height Range25.00" to 25.99"
Overall Height25.25"
Overall Thickness4"
Core Thickness2.25"
Transmission CoolerYes
Filler Neck Height1.00"
Inlet Size1.75
Fan IncludedNo
Notes1/4" NPT fittings for transmission cooler. 1.50" mounting tabs on both sides. 1/4" NPT drain fitting.
Sold in QuantityEach
