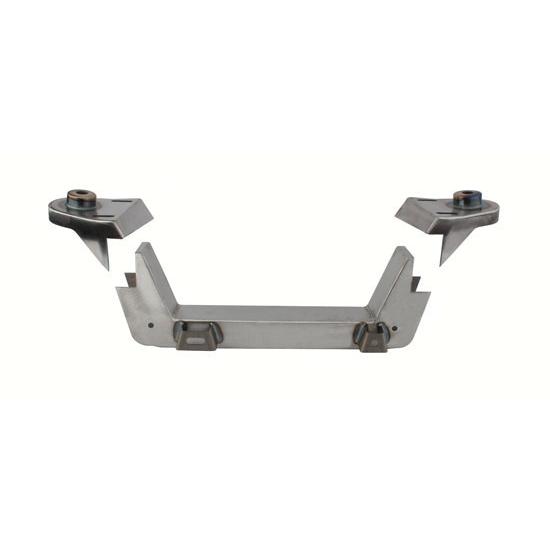

Speedway Mustang II Crossmember-34-35 Chevy
Front Position, Mustang II Crossmember Type, Boxed Crossmember Style, Weld-on Attachment Style
- This IFS crossmember is a great way to improve your vehicle's suspension, handling, and overall performance
- Works with manual rack and pinion only - power rack will interfere with the radiator and radiator support brackets
- Frame Front Boxing Plates are included for added strength and support
- Can be used with stock stamped style control arms or tubular control arms
- Choose from a variety of front suspension kits to finish off your front end
These Speedway Mustang IFS kits for 1934-1935 Chevy passenger cars are natural conversions to improve your vehicles suspension, handling, and overall performance. The Chevy models have frames and fenders which lend themselves nicely to the Mustang front end conversion, without changing the critical geometry. Like our Ford kits, Chevy kits do not bumpsteer at all. Included in these kits are all the special, hard-to-make brackets and mounts you will need to complete the installation, plus illustrated installation instructions.
- Mounting points of all control arms match the original Ford design
- Factory anti-drive built right in
- 1934-1935 Chevy Standard car frames
- All Speedway crossmembers come in Deluxe versions (welds ground)
- Constructed of 7-gauge steel
- Mustang II cross members using stock spindles will drop the stock ride height 3-4”
- One-Piece Shock Cups are T.I.G. welded in place and have anti-dive built in.
- Vertical Inner Uprights. This is the strongest design available, with twice the weld area. This will keep your frame from twisting!
- Crossmember and Spring Towers precut and pre-welded to fit your frame
- Lower control arm pivot tubes and gussets are NOT included
- Works with manual rack and pinion ONLY
Choose from the crossmembers below and add to an IFS kit to get a "hub to hub" front suspension.
Note: Radiator tabs included. Additional items may be needed to complete installation. You may want to include our Mustang II ride height adjusters (91034444) for installation with these crossmembers to fine tune your final ride height up to 2".
NOTE: This crossmember is designed to be used with a manual rack only. A "power"rack-and-pinion interferes with the radiator and/or the radiator support brackets.
Item Details1934-35 Chevy, STD
Complete installation may require you to purchase corresponding a-arms, shocks, springs, brake kit, spindles, and steering rack and pinion
NotesOverall Benefit: In a word, "handling". While installing a Mustang II can look like a lot of work, in reality, the improved handling and ride quality are worth the effort. Combine that with improved stopping ability due to numerous brake options and it becomes more a question of “Why wouldn’t you?”. The independent suspension will give you a much better ride because there is double the suspension travel. A stock axle will give you maybe 2-1/2” of total travel vs. a Mustang II which will give you about 4-1/2”- 5” of travel. There are multiple spring rates available to accommodate varied applications and the rack and pinion steering is much more responsive than a standard steering box.
Drop: This varies and is dependent on application and options. Most kits drop the vehicle by 3-4”. Drop spindles and running lower profile tires than stock also adds to the amount of drop that can be achieved.
Track Width: You may want to mount custom wheels to your Mustang II conversion and determining proper track width for your application is essential for figuring correct backspacing and overall ride stance. Standard wheel base is 56-1/2” with a 60” version available for trucks. The various options for brake kits will vary this somewhat and some kits can add roughly 2” to the overall track width. Narrowed arms are available to move the wheel in by 5/8” on each side. See the link below for various track widths with different options.
Assembly Notes: The holes for the lower control arms are 1/2″ (stock). If you will use tubular lower A-Arms instead of the stock lower arms, the lower pivot holes will have to be drilled out to 5/8″. Lower control arm pivot tubes and gussets are NOT included.
These crossmembers will work with stock control arms. If used with stock arms, these will require strut rods and strut mounts for installation. Speedway crossmembers DO NOT include strut rod mounting brackets. We recommend either our offset or no-strut control arms or the tubular strut rod (91034322).
This crossmember is designed to be used with a manual rack only. A "power"rack-and-pinion interferes with the radiator and/or the radiator support brackets.
Note: Applications where the vehicle has fenders that mount directly on top of the frame, the fenders will require extensive modification to allow clearance for the upper cross member section.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
