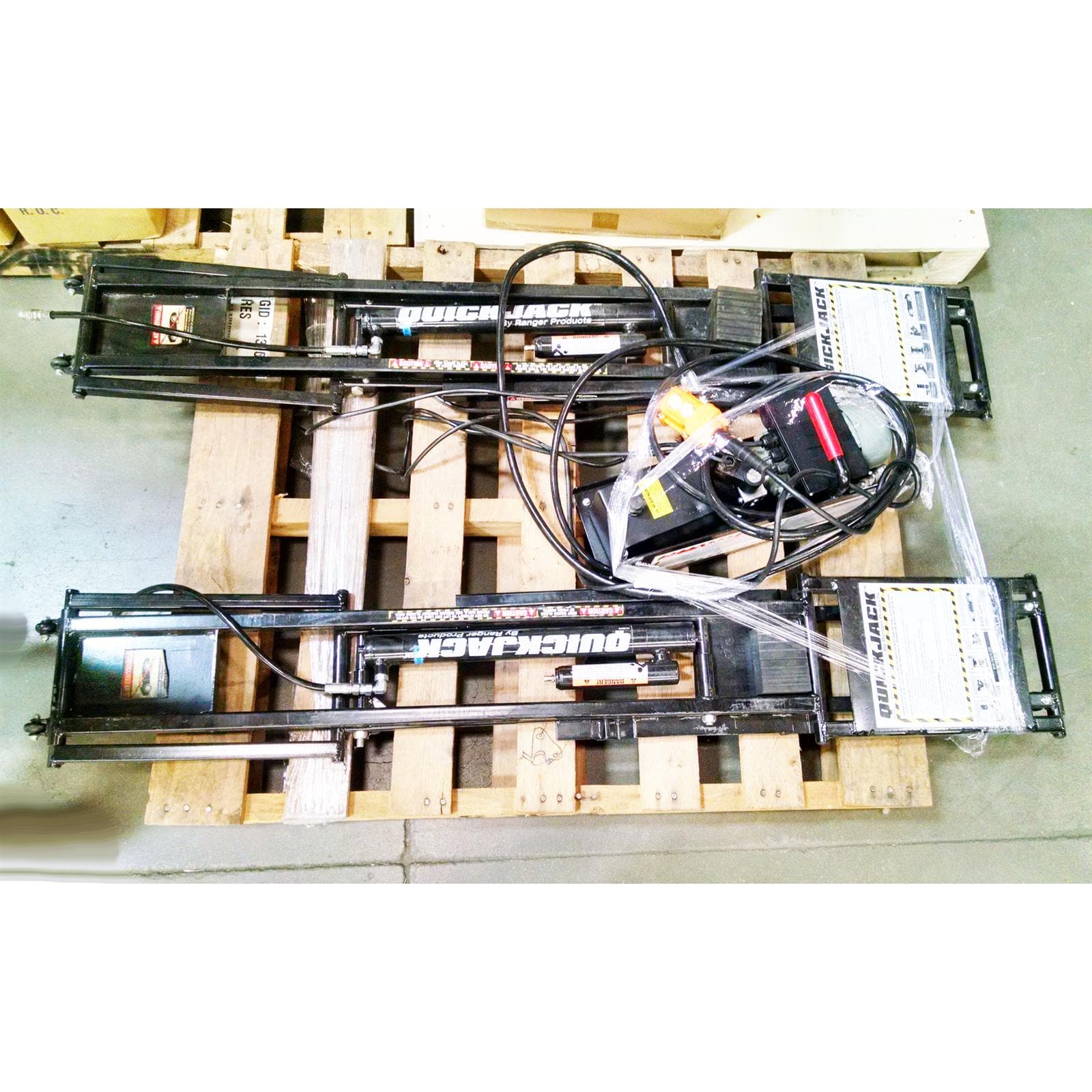

Garage Sale - Ranger Products BL-5000SLX QuickJack 5000lbs Car Jack Support System

This is garage sale priced because it was used as a display.

No Warranty, No Returns on Garage Sale Items



Looking to replace those clumsy and unstable floor jacks? We have the perfect replacement! This 5,000 pound capacity Quick Jack is just what you are looking for. Durable and convenient, this Quick Jack provides a very safe and strong support system.

Installation Instructions (PDF)

Features:

• 5,000-pound capacity
• From stow to go in less than 60-seconds
• Dual-position automatic safety lock bars engage automatically as the lift rises
• Dual locking positions – mid level and full rise
• Extended, cantilevered rubber block trays provide increased rubber block reach
• Portable power unit features a remote push-button control for simple operation.
• Steel mounted UHMW wheels provide effortless rolling of jack frames on floor
• Remote pendant control features a 13-foot cord
• Power unit features a built-in hydraulic flow divider for precise equalized lifting
• Open-center design for clear undercar access
• Quick-connect/disconnect hoses for fast and convenient set-up
• Convenient handles allow for easy positioning of the jack frames
• Strong 14-gauge welded steel frames
• Provides quick wheels-free convenience for brake and tire service and clear undercarriage access of all types of vehicles
• Low-profile jack frames fit under most race cars
• Powerful hydraulic cylinders eliminate the need for screw mechanisms
• Integrated power-assist canisters increase the lowering speed
• Hydraulic cylinders feature integrated velocity-fuse safety valves
• A metal carrier with handle keeps the power unit protected and easily mobile
• 8 adjustable and stackable rubber lift blocks support cars at precise locations for increased stability and safety
• Detailed installation, maintenance and safety instructions accompany each QuickJack system.
• Durable powder coat finish

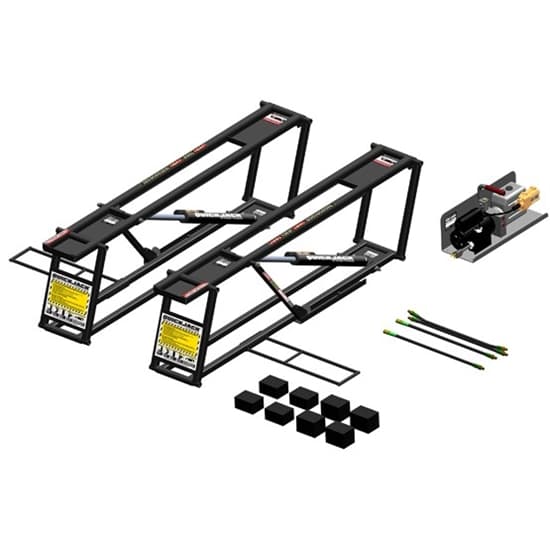

Package includes:

• (2) jack frame assemblies
• (2) 150" hydraulic hoses
• (2) 14" aux. hoses
• (2) quick-mount handles
• (4) 1.5" x 3" x 4" rubber blocks
• (4) 3" x 3" x 4" rubber blocks

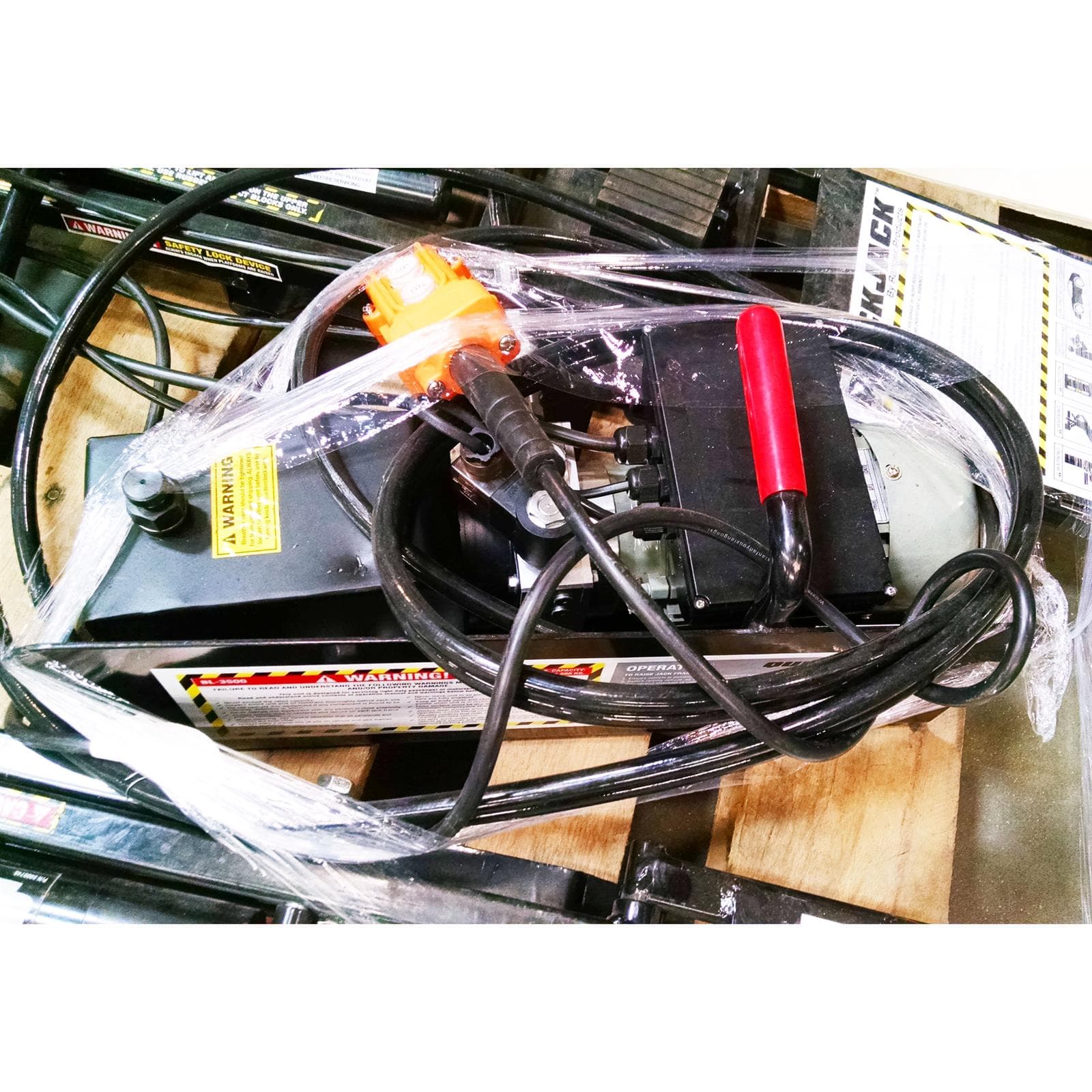

• (1) 110V-AC mini hydraulic power unit with pendant control

Technical Specs:



• Minimum collapsed height: 3” / 76 mm.
• Platform lifting height (Frame only): 17.2” / 437 mm.
• Platform lifting height (with small rubber block): 17.8” / 452 mm.
• Platform lifting height (with tall rubber block): 19” / 483 mm.
• Platform lifting height (with stacked rubber blocks): 22.5” / 572 mm.
• Frame width: 11” / 278 mm.
• Rubber lift block position - max. spread: 60” / 1524 mm.
• Rubber lift block position - min. spread: 31.5” / 800 mm.
• Overall frame length: 72.5” / 1841 mm.
• Individual jack frame - net weight (ea.): 76 lbs. / 34 kg.
• Power unit/carrier complete - net weight: 35 lbs. / 16 kg.
• Gross weight: 212
• Noise emission: <45dBA
