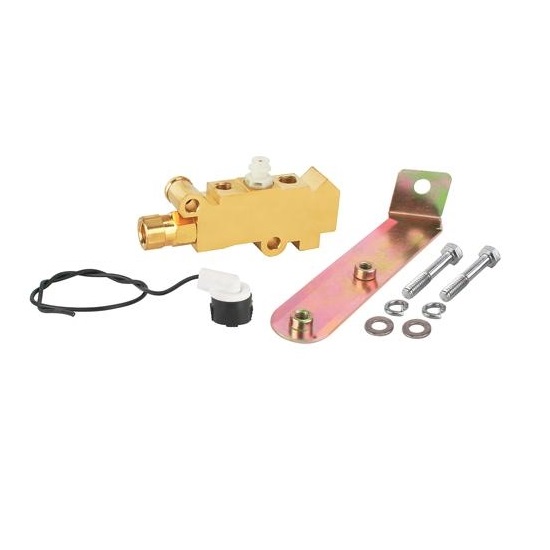

Garage Sale - GM Disc/Drum Proportioning Valve for 3/8-24 Outlets
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
This item is garage sale priced because it's missing both of the pre-formed hard lines.
Bottom Front Port: 3/8"-24 IFF threads - goes to one front brake
Top Front Port: 3/8"-24 IFF threads - goes to one front brake
Middle Top Port: 1/2"-20 IFF threads - comes from master cylinder
Rear Top Port: 7/16"-24 IFF threads - comes from the master cylinder
Rear Most Port: 9/16"-18 IFF threads - goes to rear brakes
Bottom front/Top front are 3/8"-24 IFF (to font brakes), Rearmost port is 9/16"-18 IFF (to rear brakes).
Includes hard lines with fittings, hardware, bracket, and brake light switch. This is a combo valve (metering for front/proportioning for rear) into one valve. Residual valves NOT built in.
